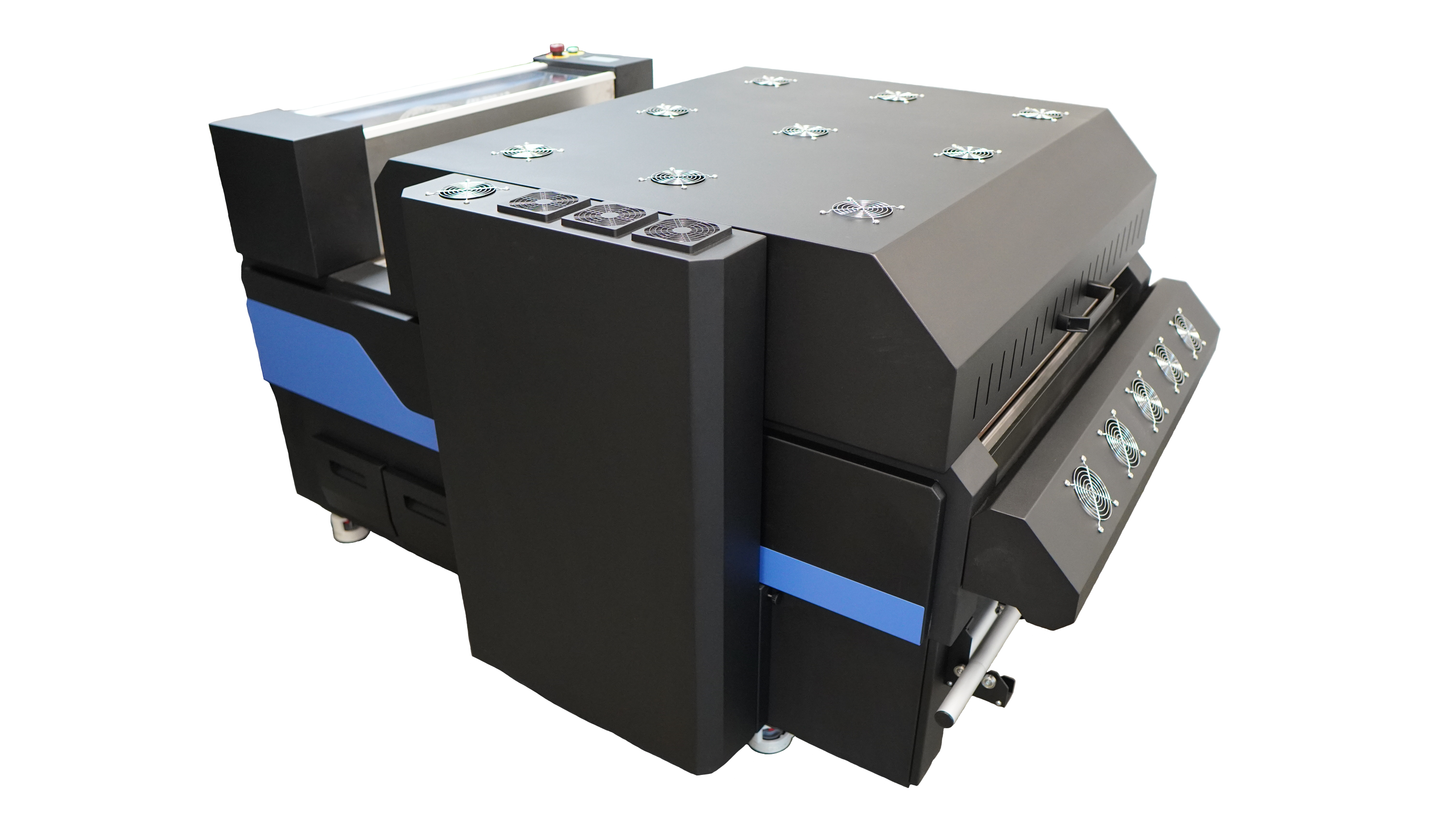

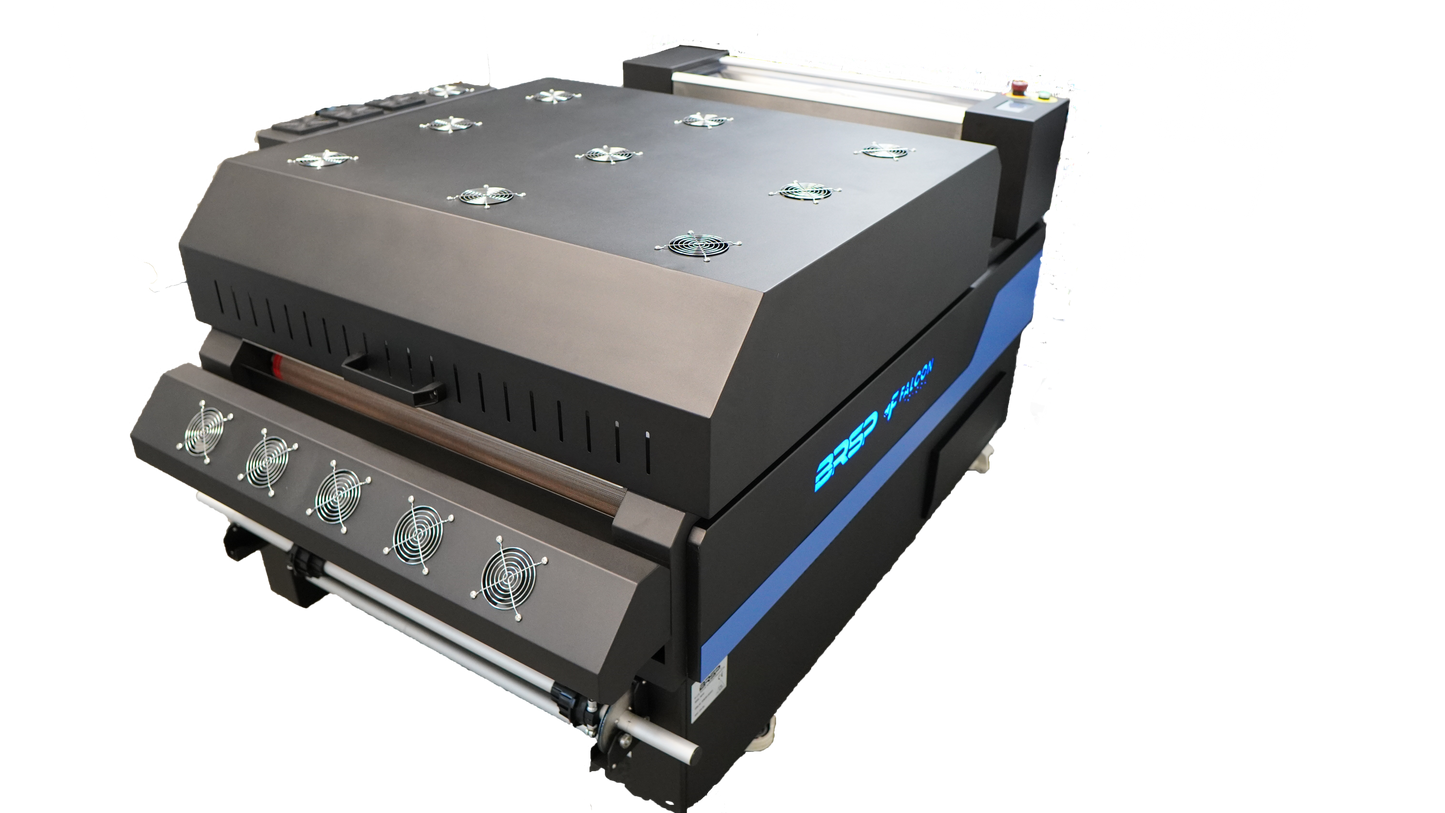

BRSP Falcon 32" Powder Shaker

The BRSP Falcon 32" Powder Shaker is an innovative automated powder shaker and heating system designed to significantly boost your garment decoration productivity. These units boast a range of impressive features including a PLC Control Touch Panel, Integrated Internal Smoke Purifier (that actually works), Intelligent Powder Spray System, dual-sided heating, and precise Heater Control.

The BRSP Falcon Powder Shaker is a superior, automated solution to the labor-intensive manual powder application and small heat stations. These all-in-one units are designed to take your DTF business to new heights of efficiency and productivity.

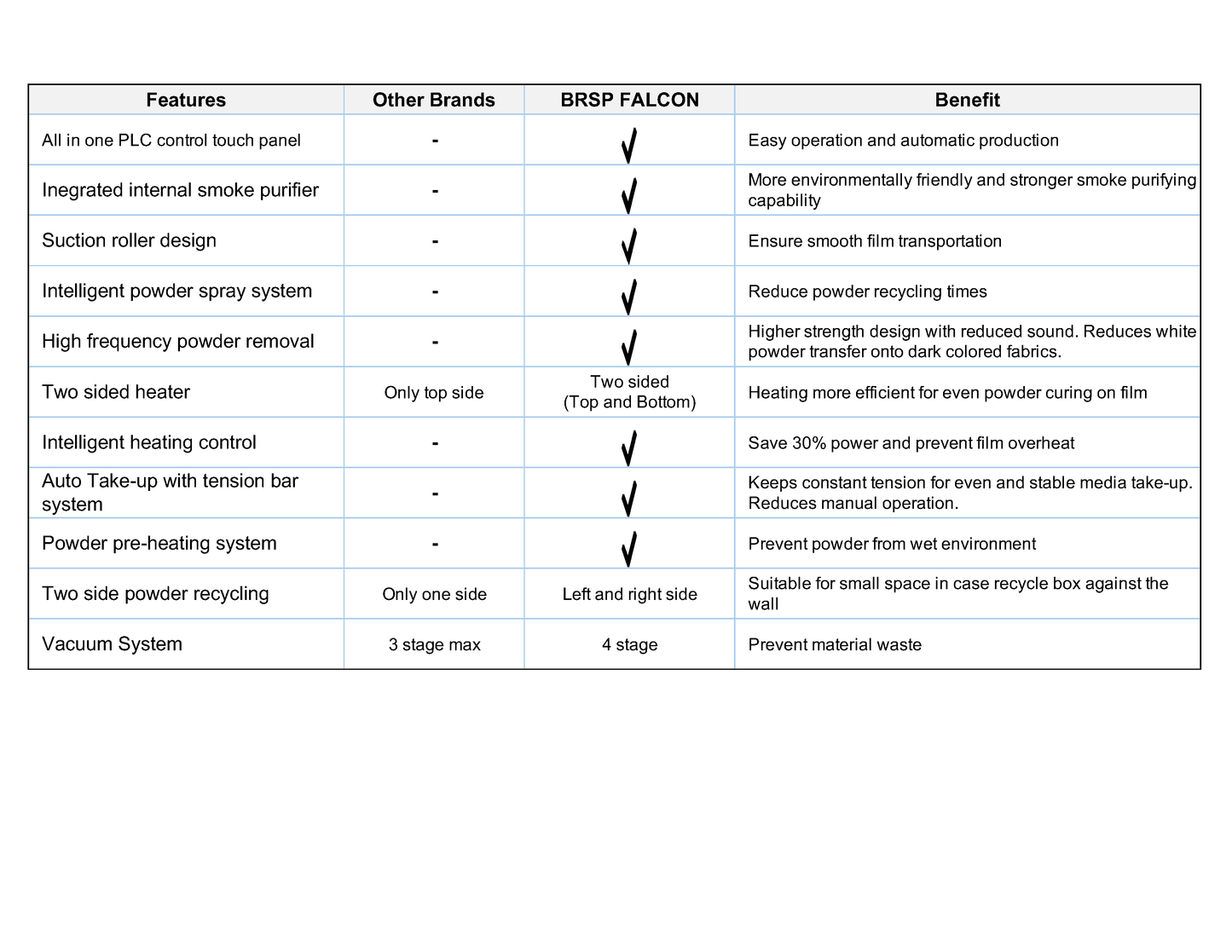

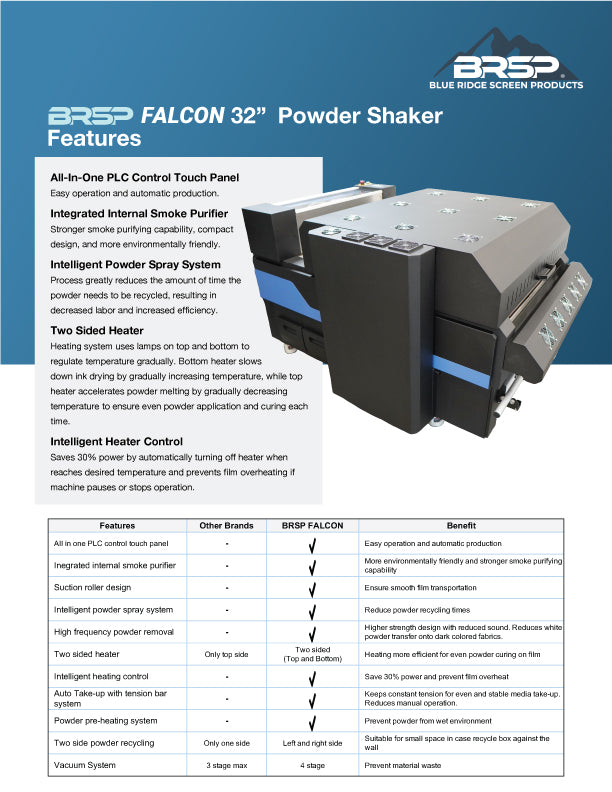

Features:

• All-In-One PLC Control Touch Panel: Simplifies operation and automates production processes.
• Environmentally Safe: Integrated Internal Smoke Purifier ensures a safe working environment.
• Suction Roller Design: Guarantees smooth film movement.
• Intelligent Powder Spray System: Minimizes powder recycling times.
• High Frequency Powder Removal: Enhanced design reduces white powder transfer onto dark fabrics.
• Two-Sided Heater: Efficiently and evenly cures powder with heating units above and below the film.
• Intelligent Heating Control: Saves 30% energy and prevents film overheating.
• Auto Take-up with Tension Bar System: Maintains constant tension for stable media take-up and reduces manual labor.
• Two-Sided Powder Recycling: Space-efficient design suitable for small workspaces.
• Vacuum System: Prevents material waste.

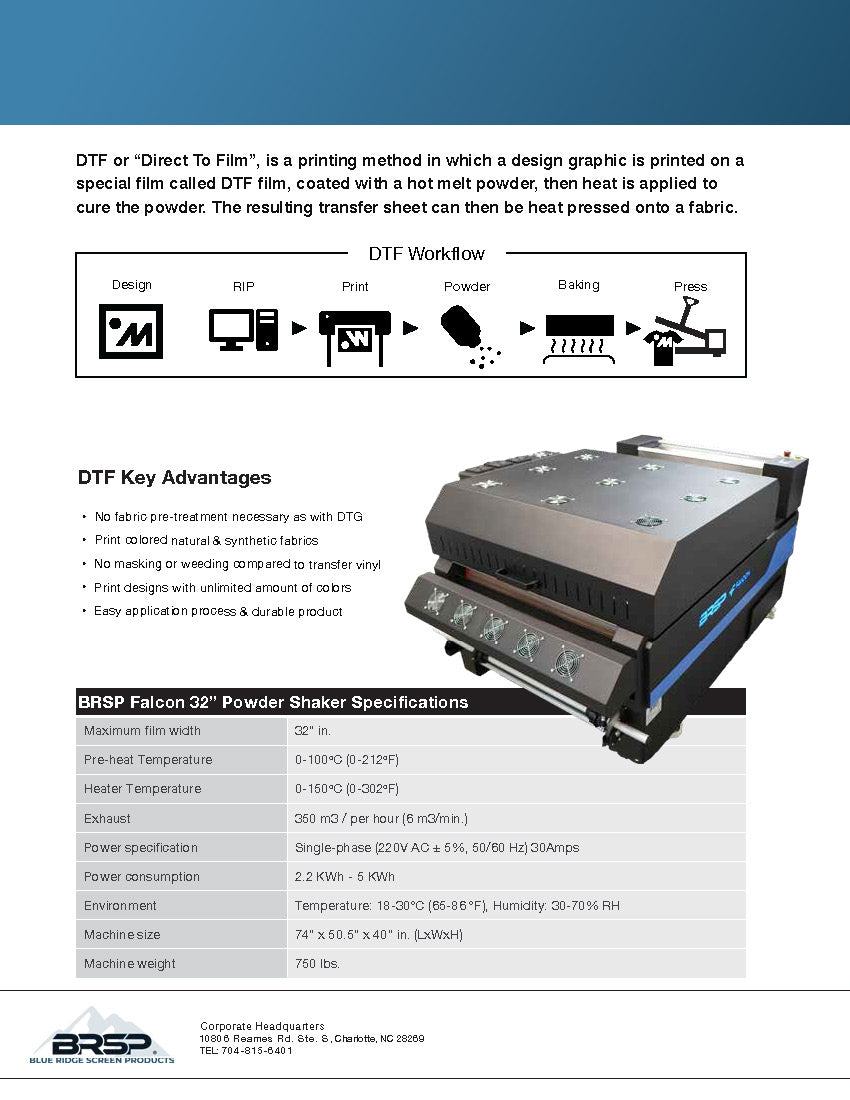

Specifications:

• Maximum film width:          32" in.
• Pre-heat Temperature:      0-1000C （0-2120F）
• Heater Temperature:          0-150°C (0-302*F)
• Exhaust:                              350 m3 / per hour (6 m3/min.)
• Power specification:          Single-phase (220V AC + 5%, 50/60 Hz) 30Amps
• Power consumption:          2.2 KWh - 5 KWh
• Environment:
  • Temperature:           18-30°C (65-86 °F)
  • Humidity:                 30-70% RH
• Machine size:                     74" × 50.5* x 40* in. (LxWxH)
• Machine weight:                750 Ibs.
