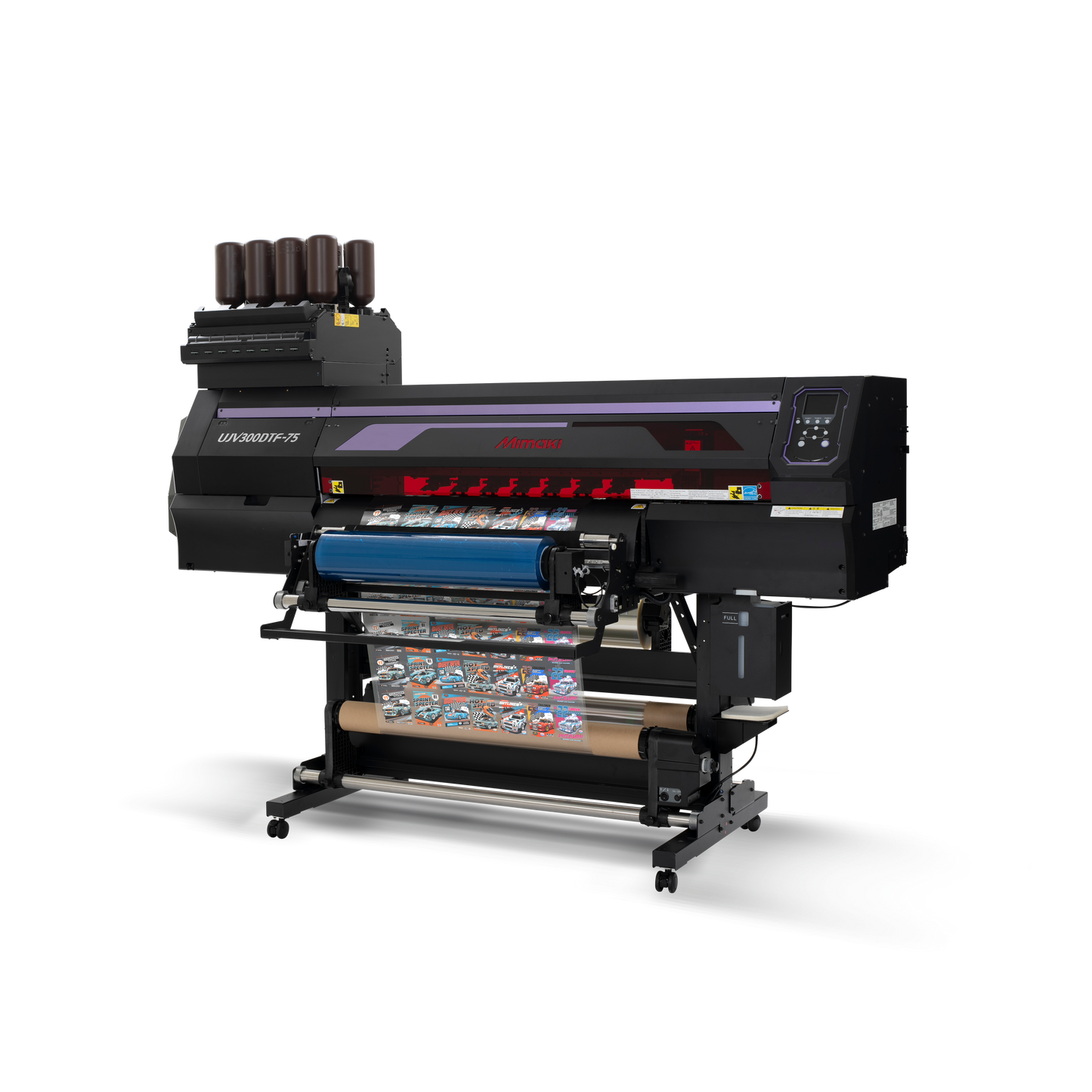

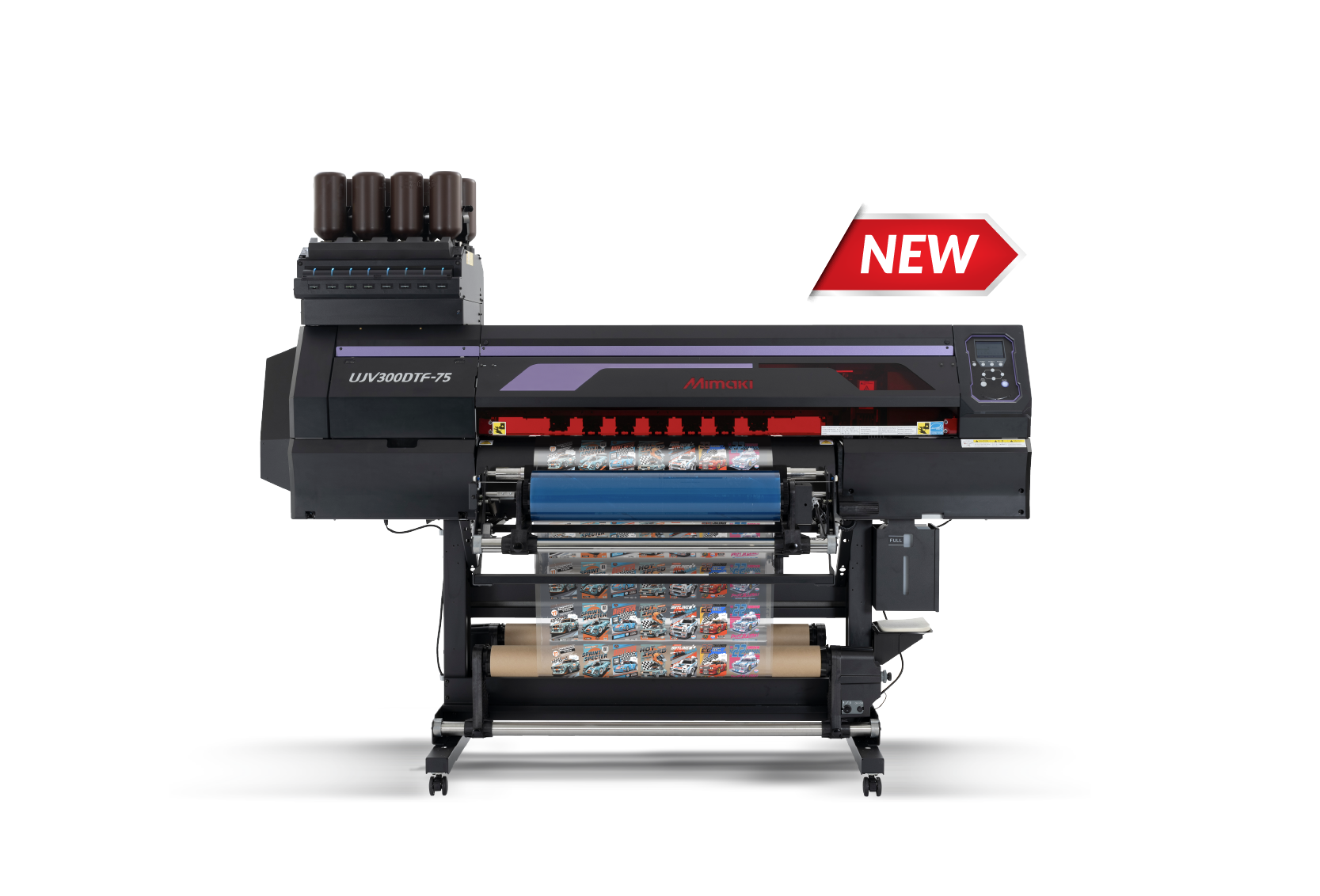

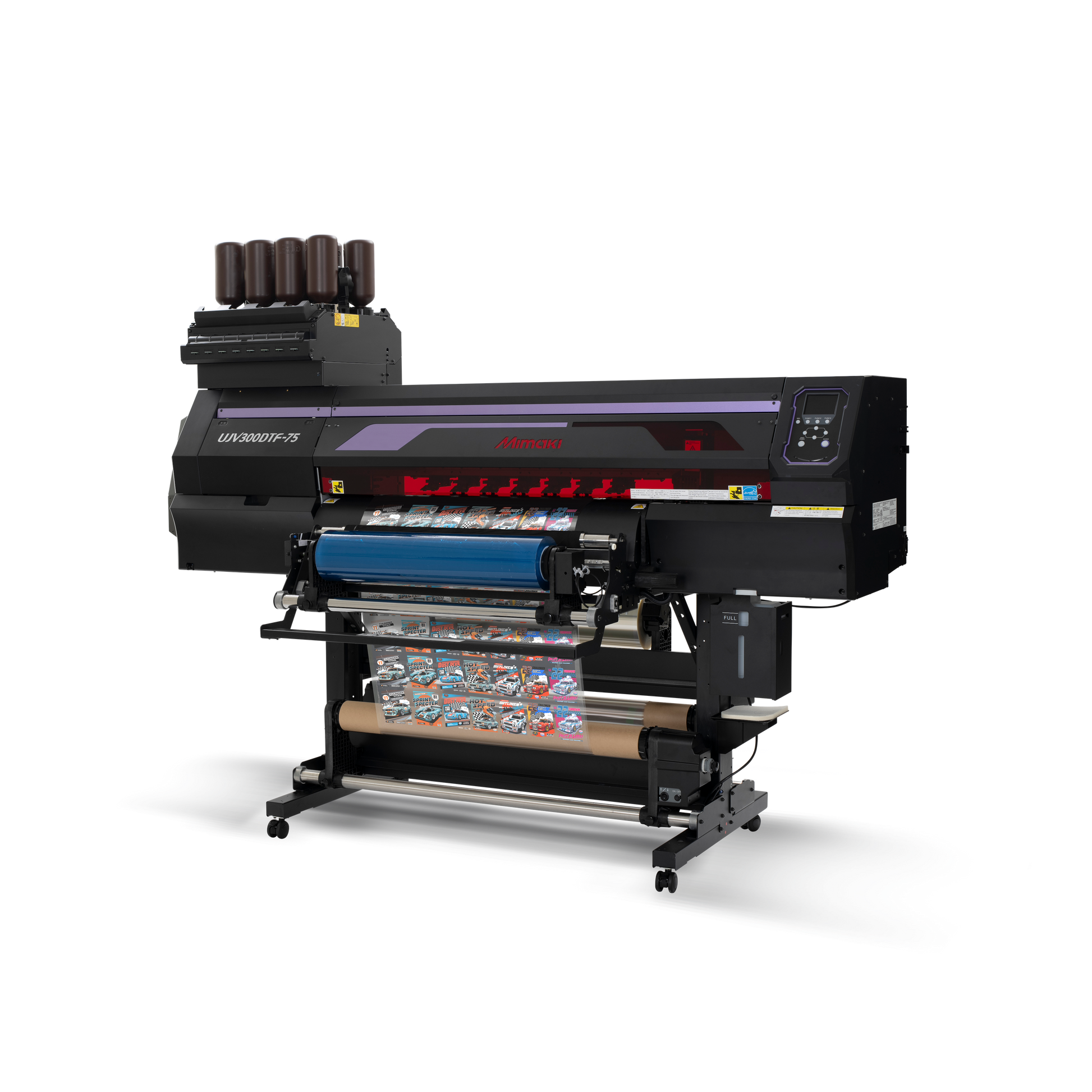

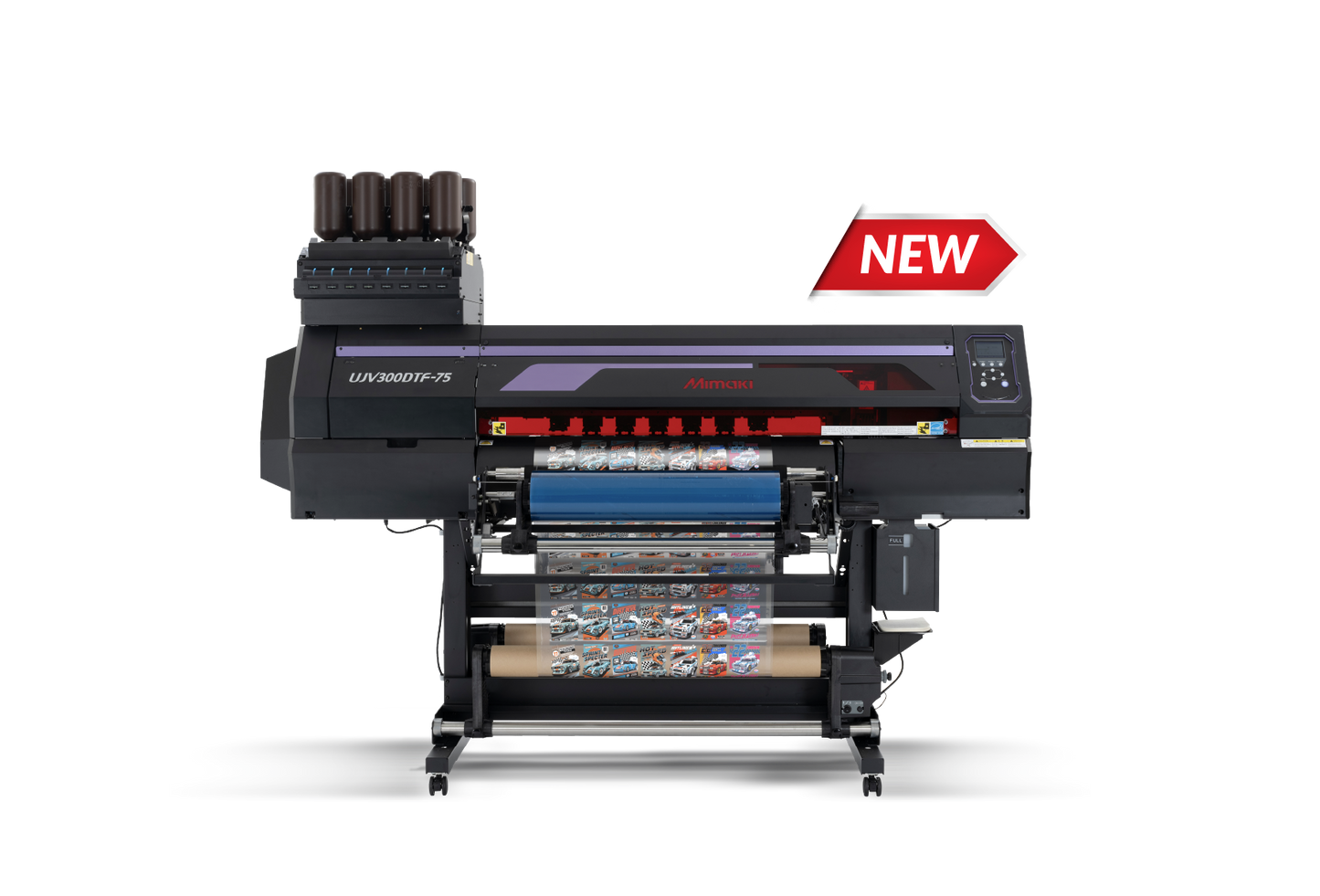

Mimaki UJV300DTF-75 UV DTF Roll to Roll Printer
Mimaki UJV300DTF-75 UV DTF Roll to Roll Printer
Couldn't load pickup availability
New All-in-One UV-DTF Solution
- Personalize objects unlimited by size or shape
- Compact and efficient
- Automated inline lamination
- No weeding required for faster production
- One-touch media loading
- Specialized film handling rollers
- Next generation UV curable inks
Our Core Technologies
Nozzle Check Unit
Nozzle Recovery System
Mimaki Circulation Technology
Mimaki Advanced Pass System
Waveform Control
Specifications
| Printhead |
Two on-demand piezo heads |
| Print resolution |
1,200dpi max |
| Maximum Print Width |
25.2” (640mm) |
| Maximum media width |
25.6” (650mm) |
| Maximum Media Diameter |
9.84” (250mm) or less |
| Maximum Media Weight |
99 lbs (45 kg) or less |
| Ink Type |
4C+4SP (CMYK+WWClCl) UV curable flexible ink ELS-170 CMYK UV curable hard ink ELH-100 White/Clear |
| Interface |
Ethernet 1000 BASE-T / USB2.0 Hi-speed |
| Power Supply |
AC100～120/200～240V±10％, 50/60Hz±1Hz×1 |
| Power Consumption |
100V – 1,440W or less, 200V – 1,920W or less |
| Operational Environment |
Temperature: 68-86 F (20° – 30°C) |
| Dimensions (W × D × H) |
82” x 37” x 58” (2,090 × 930 × 1,475 mm) |
| Weight |
367 lbs (180kg) |
| Certifications |
VCCI class A、FCC class A、IEC62368-1 ETL, CE Marking (EMC Directive, Low Voltage Directive, RoHS), CB report, ENERGY STAR, RCM, KC |
-
