Mimaki UJV200 Series UV-LED Roll-to-Roll Printer

Get the versatility of UV-LED printing without adding unnecessary cost or complexity to your workflow. The Mimaki UJV200 Series is a professional roll-to-roll printer built for sign shops, graphics producers, and print businesses that need consistent quality, straightforward operation, and faster turnaround times.

A 64-inch models, the UJV200-160 combines instant UV curing with automated media adjustments, advanced multilayer printing, durable ink performance, and support for white and clear ink.

Produce everything from everyday signs and decals to premium window graphics, floor graphics, textured prints, and specialty displays—all on one versatile printing platform.

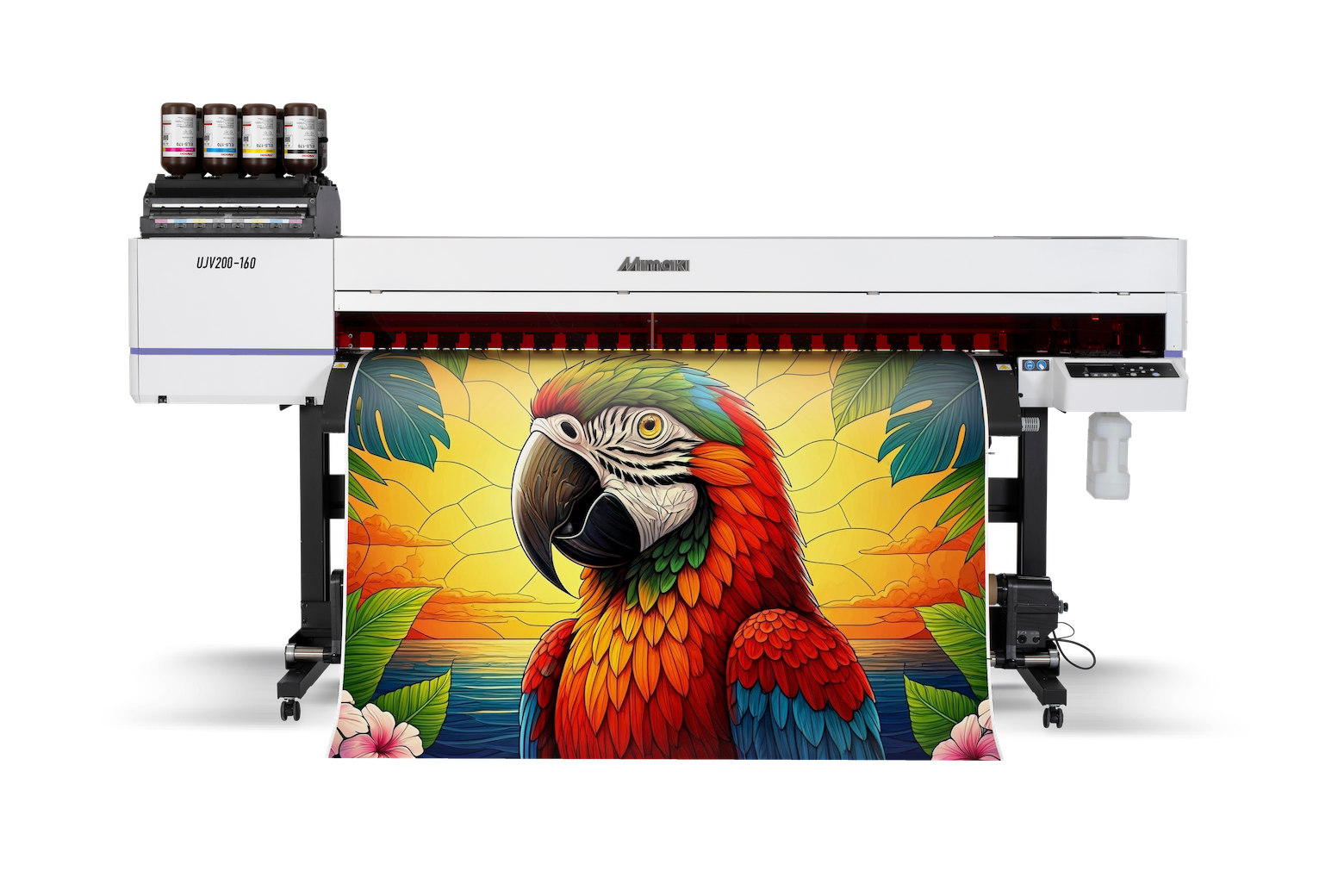

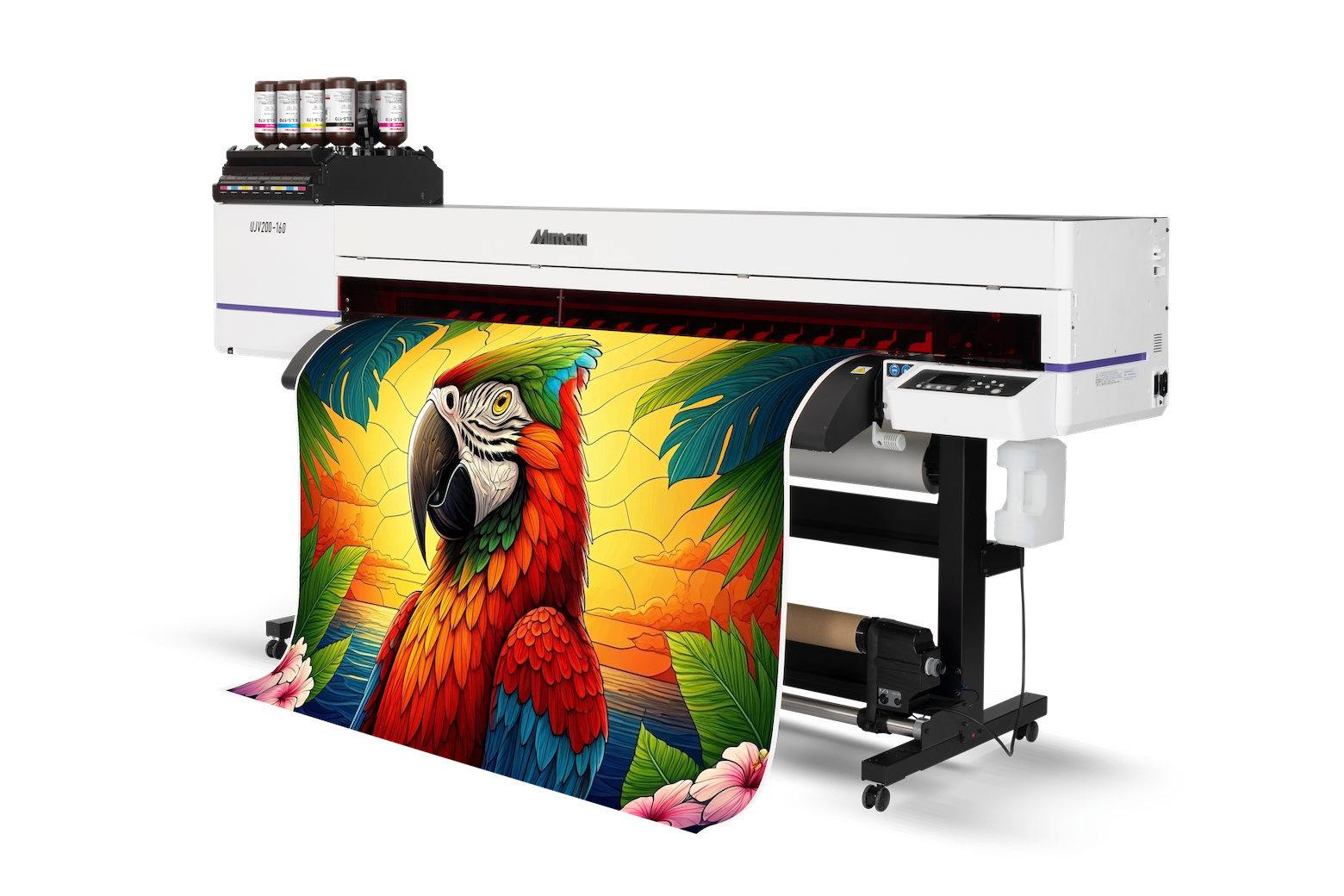

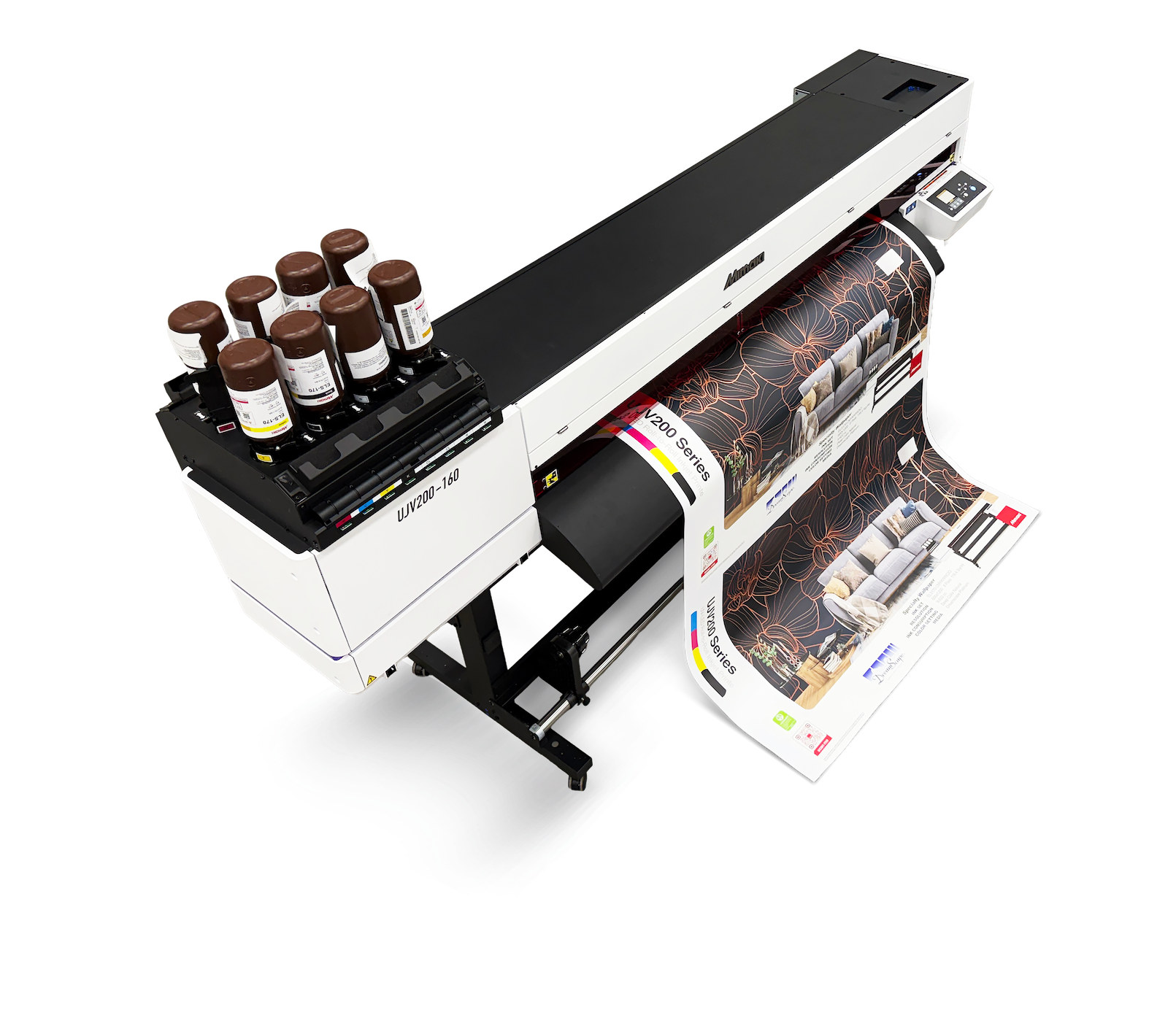

Mimaki UJV200-160

The UJV200-160 provides a maximum print width of 63.4 inches for shops producing larger signage, banners, displays, wall graphics, and other wide-format applications.

Key Features

• Available in 64-inch models
• Instant UV-LED ink curing
• Print speeds up to 269.1 square feet per hour
• Resolutions up to 1200 dpi
• White and clear ink configurations
• Up to three-layer printing without media pullback
• Automated media-feed and dot-position adjustments
• Five selectable ink-reduction levels
• Four-picoliter variable-dot printing
• Lamifit lamination technology
• Strong abrasion resistance
• Faster cleaning cycles
• Support for media up to 2 mm thick
• Low-odor ELS-170 UV ink
• Mimaki nozzle monitoring and recovery technologies

Technical Specifications

Printhead: Single on-demand piezo printhead
Print resolutions: 600, 900, and 1200 dpi
Maximum media thickness: 2 mm
Maximum roll weight: 55 pounds
Ink type: Mimaki ELS-170 UV-curable ink
Ink colors: Cyan, magenta, yellow, black, white, and clear
Ink capacity: One-liter bottles
Interface: Gigabit Ethernet and USB 2.0
Operating temperature: 68–86°F
Operating humidity: 35–65% RH
