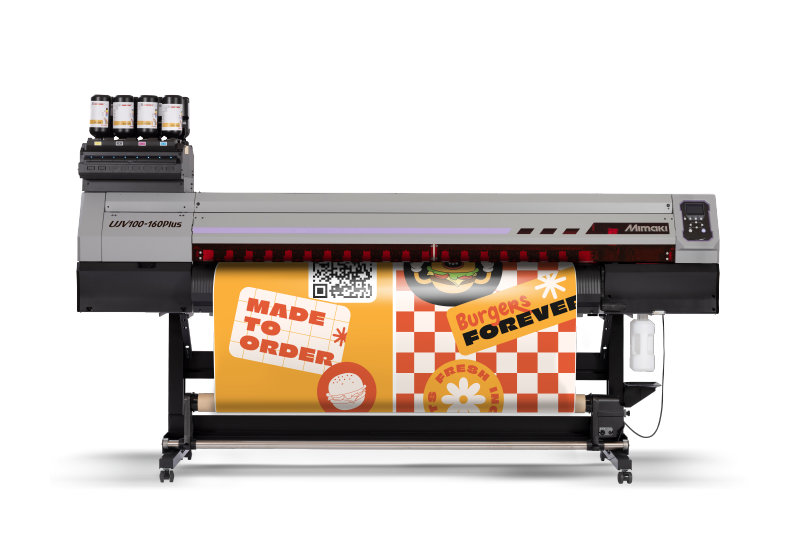

Mimaki UJV100-160Plus UV-LED Printer

Bring versatile UV printing capabilities to your shop without the price tag of a high-end production system. The Mimaki UJV100-160Plus is a 63-inch UV-LED roll-to-roll printer built for sign shops, graphics producers, and print businesses that need reliable production, flexible ink options, and fast turnaround times.

Mimaki’s UV-LED technology cures the ink immediately as it is printed. Graphics can move directly into cutting, laminating, installation, or finishing without the drying time commonly associated with other printing technologies.

With support for white and clear ink, multilayer printing, automated adjustments, and a wide range of flexible media, the UJV100-160Plus gives shops more ways to produce high-value graphics while keeping operating costs under control.

Expand What Your Shop Can Produce

The UJV100-160Plus can print on a variety of media, including:

• Adhesive vinyl
• Banner material
• PET film
• Paper
• Fabric
• Backlit media
• Window graphics
• Clear and transparent films
• Specialty flexible materials

Its 63.4-inch maximum print width makes it suitable for everything from decals and signage to banners, wall graphics, window displays, and backlit applications.

Technical Specifications

Printhead: Two staggered on-demand piezo printheads
Print resolutions: 360, 720, 900, and 1200 dpi
Maximum print width: 63.4 inches
Maximum media width: 63.8 inches
Maximum media thickness: 1 mm
Maximum media weight: 99.2 pounds
Ink type: Mimaki LUS-170 UV-curable ink
Ink colors: Cyan, magenta, yellow, black, white, and clear
Ink capacity: One-liter bottles
Interface: Gigabit Ethernet and USB 2.0
Printer dimensions: 109.3 × 27.6 × 58.1 inches
Printer weight: 368.2 pounds
Operating temperature: 68–86°F
Operating humidity: 35–65% RH, non-condensing
