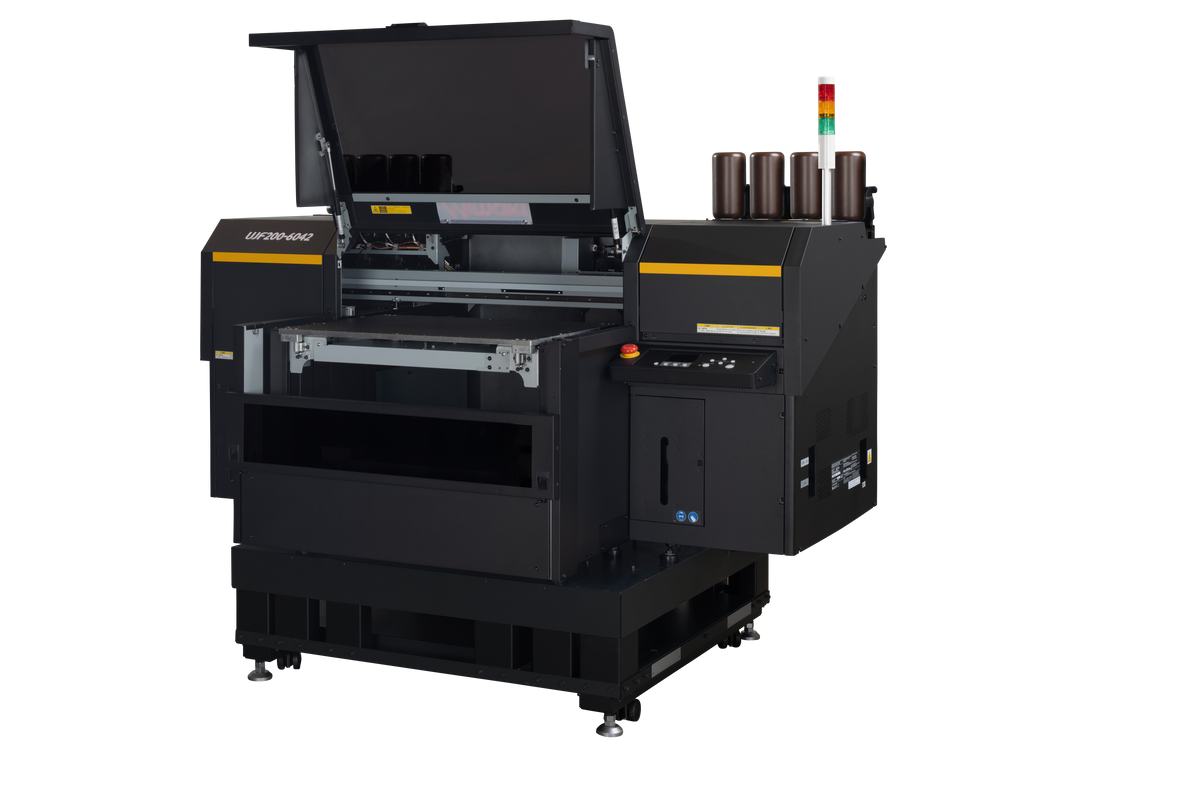

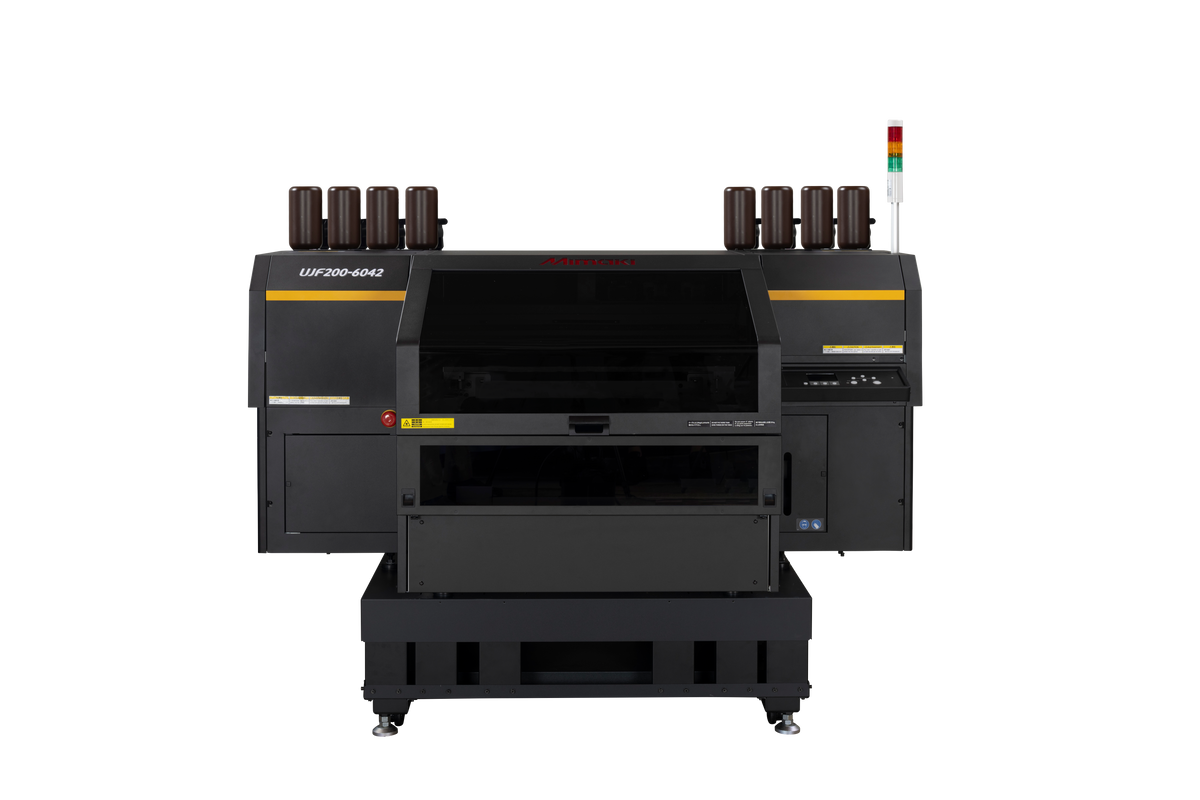

Mimaki UJF200-6042 UV-LED Flatbed Printer

The Mimaki UJF200-6042 is a next-generation UV-LED flatbed printer built for high-quality, direct-to-object printing. With a 24" x 16.5" print area and the ability to accommodate objects up to 9.8" thick and 44 lbs, the UJF200-6042 gives print shops the flexibility to produce everything from promotional products and signage to awards, packaging, custom merchandise, and dimensional applications.

Designed for both quality and production flexibility, the UJF200-6042 delivers print resolutions up to 1800 dpi with a minimum 4 pL ink drop for sharp text, smooth gradients, and fine detail. Available ink configurations include CMYK, Light Cyan, Light Magenta, White, Clear, Primer, and fluorescent Pink and Yellow, allowing shops to create vibrant graphics, specialty finishes, textures, and high-value custom products.

The UJF200-6042 also supports LD printing for uneven surfaces, making it possible to print on objects with height variations. Optional camera-based positioning and belt-table automation can further streamline production and reduce repetitive loading and positioning.

Key Features

• 24" x 16.5" maximum print area

• Prints on objects up to 9.8" thick

• Supports media weighing up to 44 lbs

• Maximum print resolution up to 1800 dpi

• 4 pL minimum ink drop for fine detail

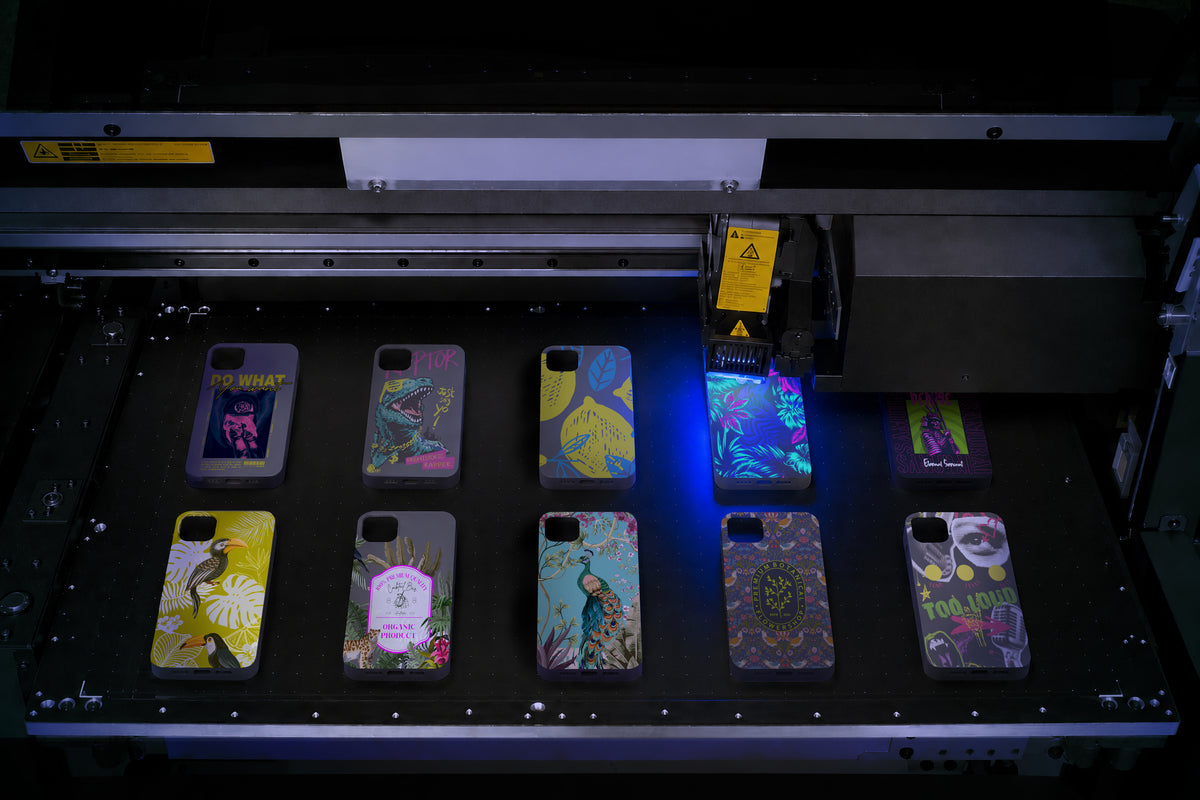

• Direct-to-object UV-LED printing

• White, Clear, Primer and specialty ink options

• Fluorescent Pink and Yellow ink configurations available

• LD printing for uneven and dimensional surfaces

• Mimaki Circulation Technology helps prevent white ink settling

• Advanced object sensor automatically detects object thickness

• Vacuum table with threaded registration points

• Optional camera positioning and belt-table automation

• Full enclosed cover helps reduce dust contamination and improve operator safety

Expand What Your Shop Can Produce

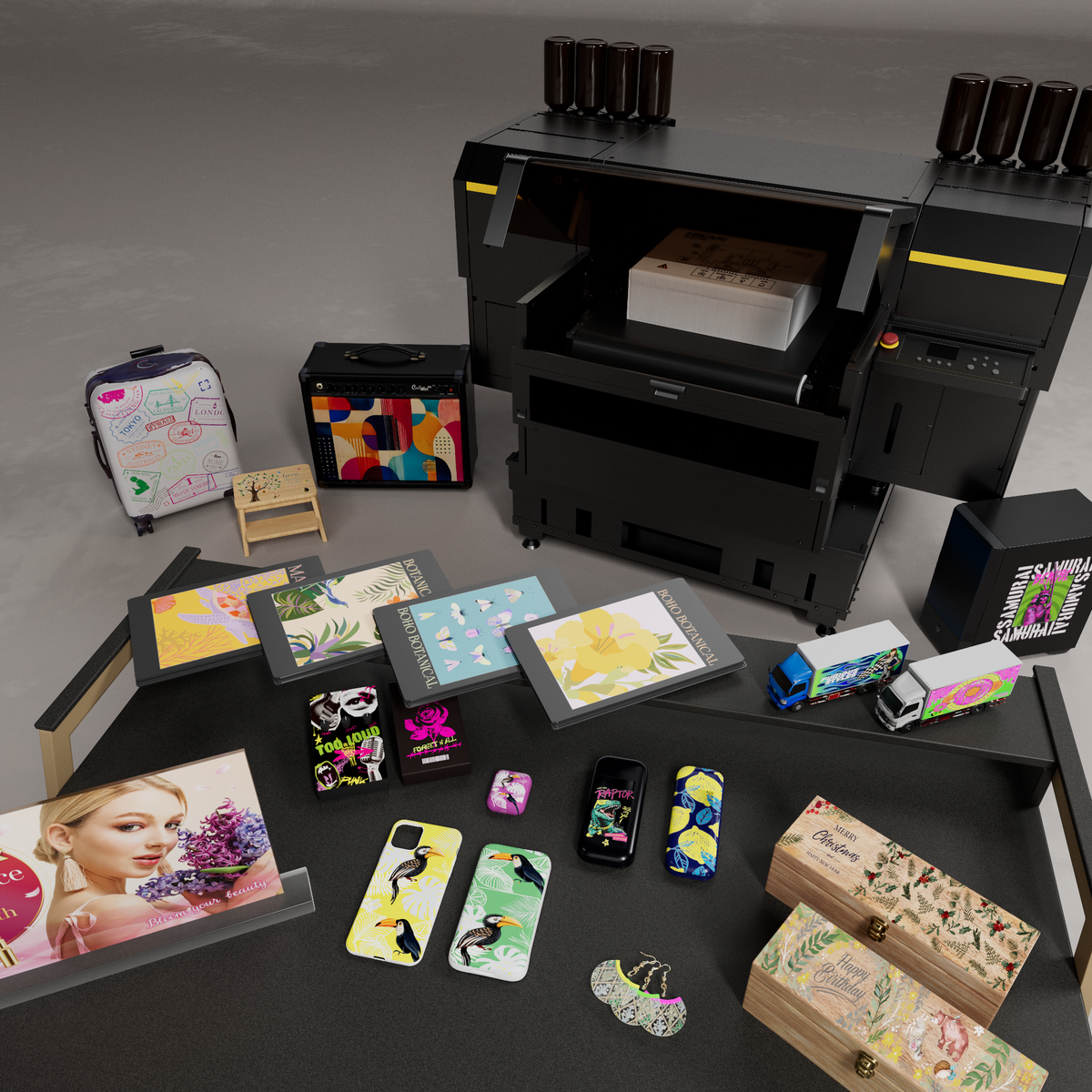

From custom promotional products and personalized merchandise to signage, plaques, packaging prototypes, textured graphics and specialty applications, the Mimaki UJF200-6042 gives print shops a versatile platform for expanding into higher-value UV printing.

Its larger bed, increased object clearance and specialty ink capabilities make it an excellent solution for businesses looking to bring more direct-to-object production in-house while leaving room for future automation.
