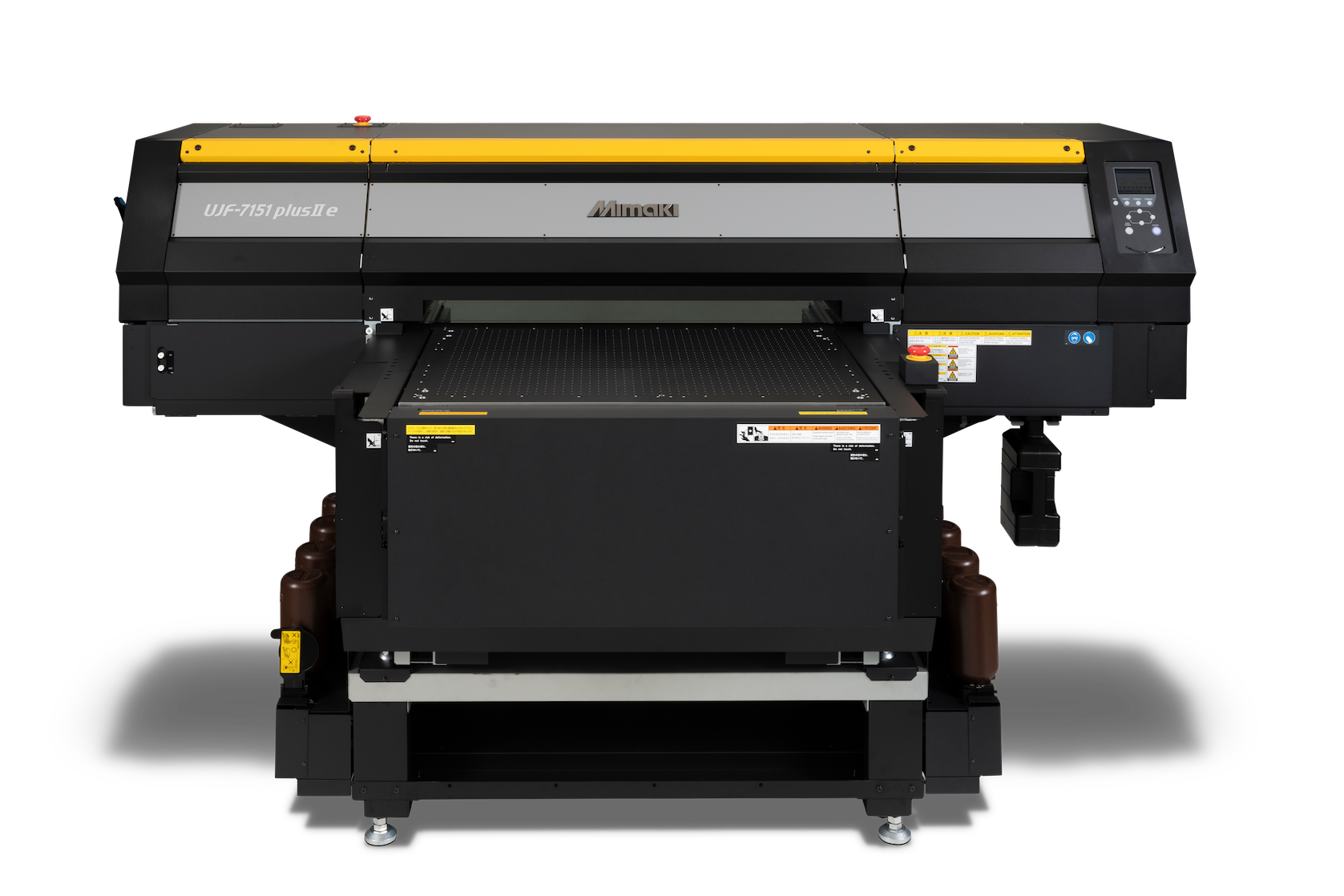

Mimaki UJF-7151 plusII e UV-LED Flatbed Printer

The Mimaki UJF-7151 plusII e is a high-performance UV-LED flatbed printer built for industrial printing, promotional products, packaging, awards, and premium product customization.

With a 28 × 20-inch print area, resolutions up to 1,800 dpi, and support for materials up to 6.02 inches thick, it delivers outstanding detail across a wide range of rigid and flexible substrates. White, clear, light-color, metallic, and primer ink options allow businesses to create vibrant graphics, smooth gradients, specialty finishes, and dimensional textures.

Add Texture, Depth, and Premium Finishes

Mimaki’s enhanced 2.5D Texture Maker can build layered effects up to 5 mm thick. Create raised lettering, dimensional logos, simulated embossing, tactile patterns, braille, and premium surface finishes without a separate finishing process.

The printer also supports white ink for dark or transparent materials, clear ink for gloss and texture effects, metallic silver ink, and digitally applied primer for improved adhesion on compatible substrates.

Print More Products with Greater Precision

The UJF-7151 plusII e can print on materials with height variations of up to 10 mm using LD3 Mode, expanding production beyond completely flat surfaces.

Its heavy-duty table supports products weighing up to 66 pounds, while eight staggered printheads and a precision ball-screw drive provide stable, accurate production. An ink-saving function can reduce ink consumption by up to 42% while maintaining natural-looking color.

Key Features

• 28 × 20-inch maximum print area
• Maximum resolution of 1,800 dpi
• Print speeds up to 86.1 square feet per hour
• Prints on objects up to 6.02 inches thick
• Supports products weighing up to 66 pounds
• Enhanced 2.5D textures up to 5 mm thick
• Prints across height variations up to 10 mm
• CMYK, white, clear, Light Cyan, and Light Magenta options
• Metallic silver ink capability
• Digitally applied primer
• Primer application up to 3.7 times faster
• Ink-saving function reduces usage by up to 42%
• Automatic nozzle monitoring and recovery
• White-ink circulation technology
• Remote printer operation and monitoring
• Optional Kebab attachment for cylindrical products

Technical Specifications

Printer type: UV-LED flatbed inkjet printer
Printheads: Eight staggered on-demand piezo printheads
Print resolutions: 600, 900, 1200, and 1800 dpi
Maximum four-color print speed: 86.1 sq. ft. per hour
Maximum print area: 28 × 20 inches
Maximum media size: 28.7 × 20.9 inches
Maximum media thickness: 6.02 inches
Maximum media weight: 66 pounds
Ink options: LH-100, ELH-100, LUS-120, ELS-120, LUS-350, MUH-100-Si metallic silver, and PR-200 primer
Available colors: Cyan, Magenta, Yellow, Black, White, Clear, Light Cyan, Light Magenta, and Silver, depending on configuration
Interface: Gigabit Ethernet and USB 2.0
Power consumption: 1.3 kW or less
Dimensions: 87 × 62 × 51 inches
Weight: Approximately 728 pounds
Operating environment: 59–86°F and 35–65% relative humidity
