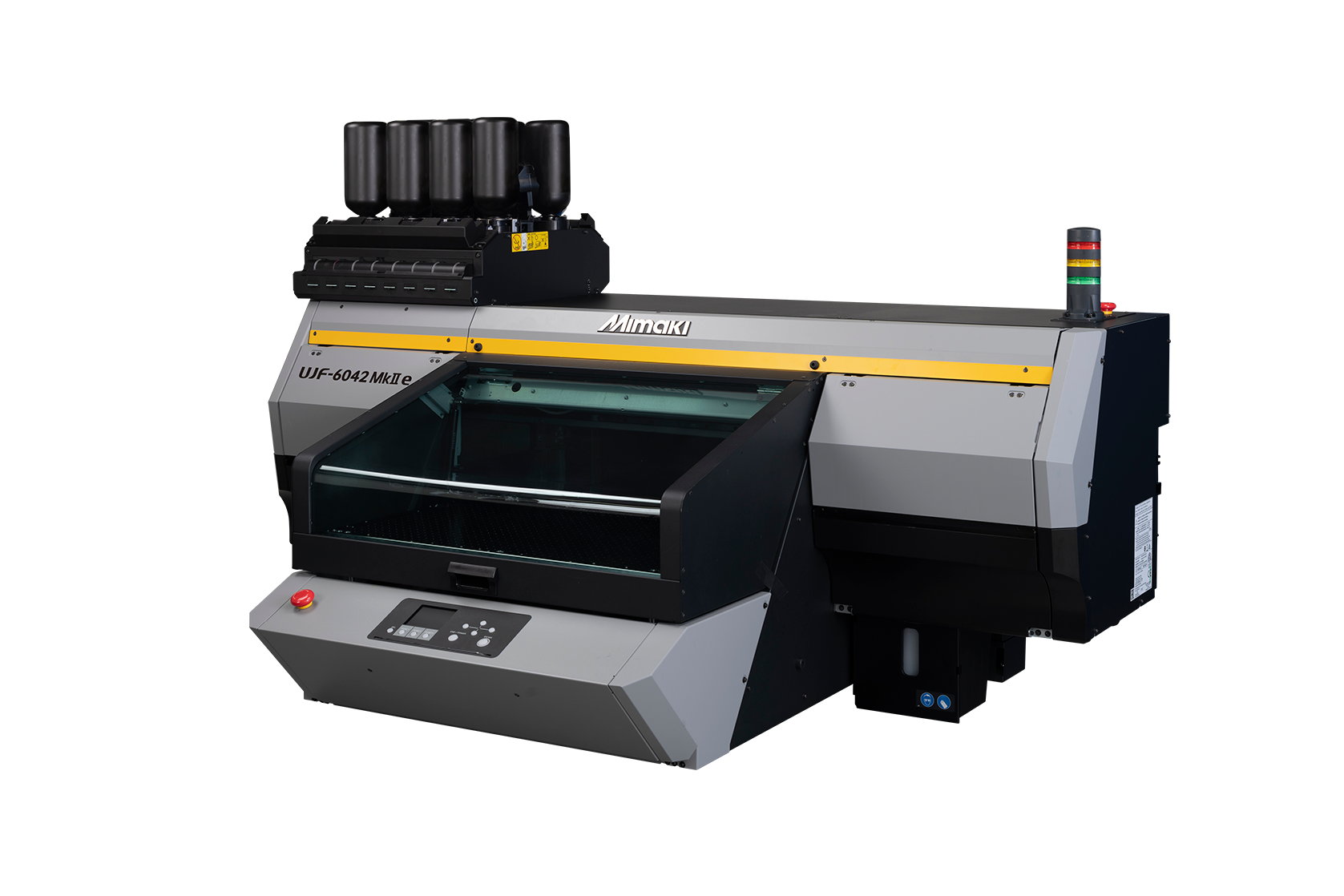

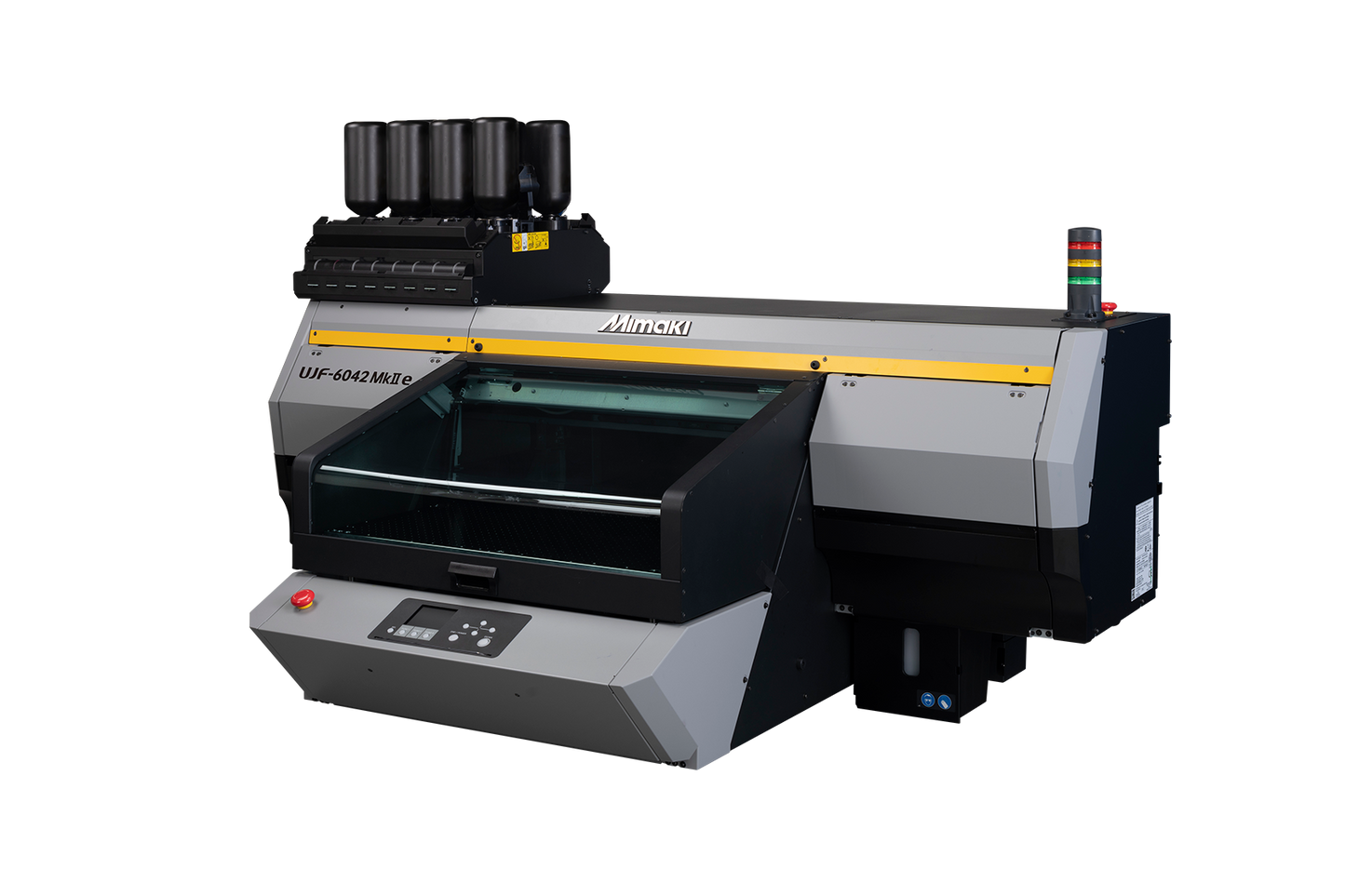

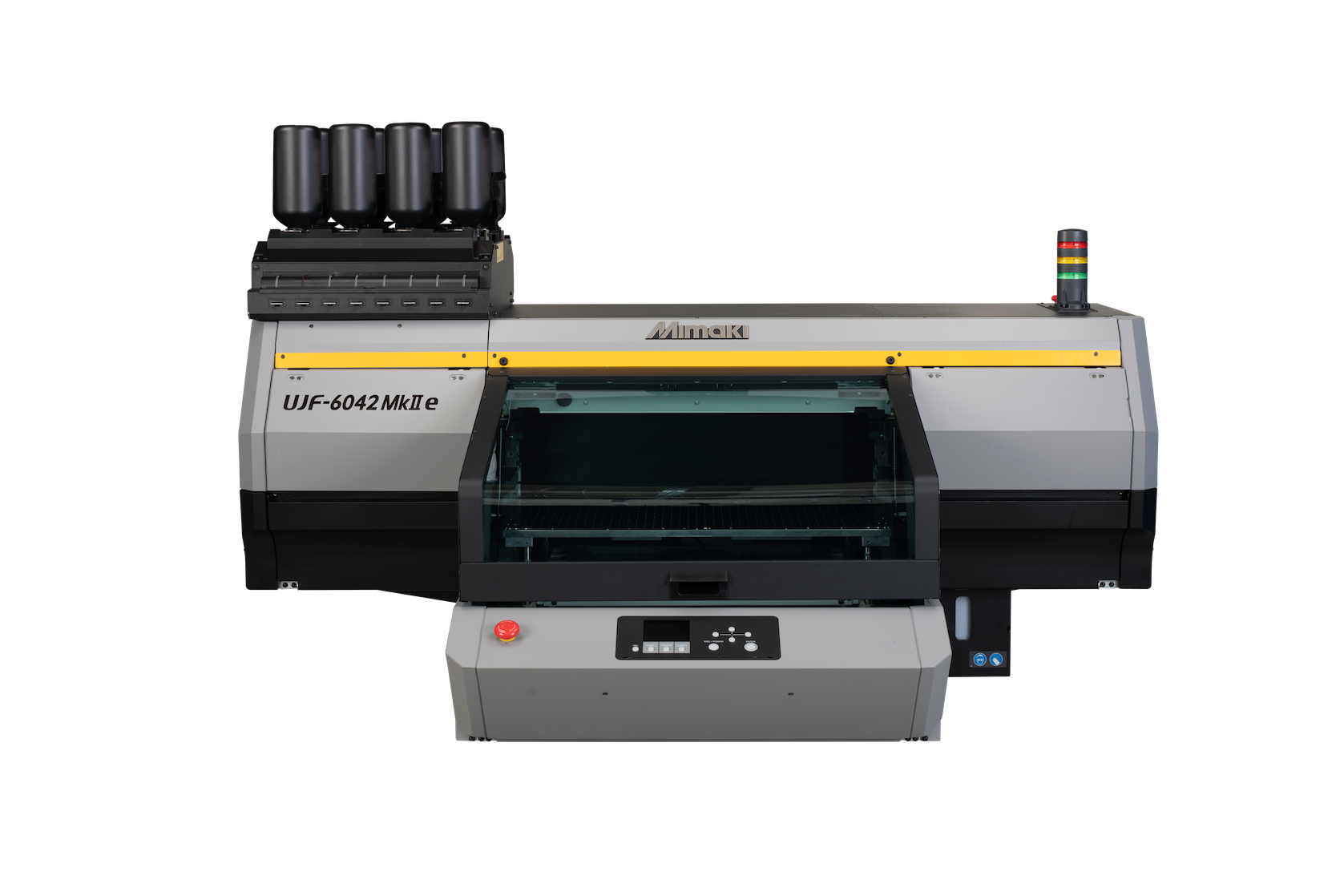

Mimaki UJF-6042 MkII e UV Flatbed Printer

The Mimaki UJF-6042 MkII e is a professional UV-LED flatbed printer designed for direct-to-object printing on promotional products, awards, packaging, signs, components, and personalized merchandise.

Its 23.6 × 16.5-inch print area provides nearly twice the production space of the UJF-3042 MkII e, while accommodating objects up to approximately six inches thick. Print directly onto plastic, wood, metal, leather, glass, acrylic, and other compatible substrates.

With support for white ink, clear ink, and optional primer, the UJF-6042 MkII e can produce vibrant graphics on dark or transparent products, dimensional textures, gloss effects, braille, and other premium finishes.

Larger Print Area for Greater Productivity

The 23.6 × 16.5-inch print area allows operators to decorate larger products or print multiple smaller items during the same production cycle.

Custom jigs can be used to hold products in place, improve artwork alignment, and simplify repeat orders. This makes the UJF-6042 MkII e an excellent option for businesses producing personalized merchandise, promotional products, awards, packaging prototypes, and industrial components.

Create Premium Clear and White Ink Effects

White ink provides an opaque base for printing vibrant colors on dark, colored, and transparent materials.

Clear ink can be used to create:

• Spot-gloss finishes
• Raised textures
• Dimensional logos
• Simulated embossing
• Braille
• Matte and gloss contrasts
• Protective clear layers

Mimaki Clear Control technology helps produce smoother, cleaner clear-ink effects without requiring a separate finishing process.

Key Features

• 23.6 × 16.5-inch maximum print area
• Prints on objects up to approximately 6.02 inches thick
• Maximum resolution of 1200 × 1200 dpi
• Print speeds up to 37.9 square feet per hour
• CMYK, white, light cyan, light magenta, and clear ink options
• Rigid and flexible UV-LED ink configurations
• Optional digitally printed primer
• Raised texture and braille capabilities
• Variable-data and jig-printing functionality
• Automatic nozzle monitoring and recovery
• White-ink circulation technology
• RasterLink7 RIP software included
• Optional Kebab attachment for cylindrical products
• Optional deodorizing unit for odor-sensitive environments

Technical Specifications

Printer type: UV-LED flatbed inkjet printer
Printheads: Four staggered on-demand piezo printheads
Maximum resolution: 1200 × 1200 dpi
Maximum four-color print speed: 37.9 sq. ft. per hour
Maximum print area: 23.6 × 16.5 inches
Maximum media area: 26 × 18 inches
Maximum media thickness: 6.02 inches
Maximum media weight: 17.6 pounds
Rigid ink: Mimaki LH-100
Flexible inks: Mimaki LUS-120 and LUS-150
Available colors: Cyan, Magenta, Yellow, Black, White, Light Cyan, Light Magenta, and Clear, depending on the selected ink
Primer: Mimaki PR-200
Interface: Gigabit Ethernet and USB 2.0
Power supply: Single-phase AC 100–240V
Maximum power consumption: 1,000 watts or less
Dimensions: 65.6 × 50.8 × 33.7 inches
Weight: Approximately 330.7 pounds
