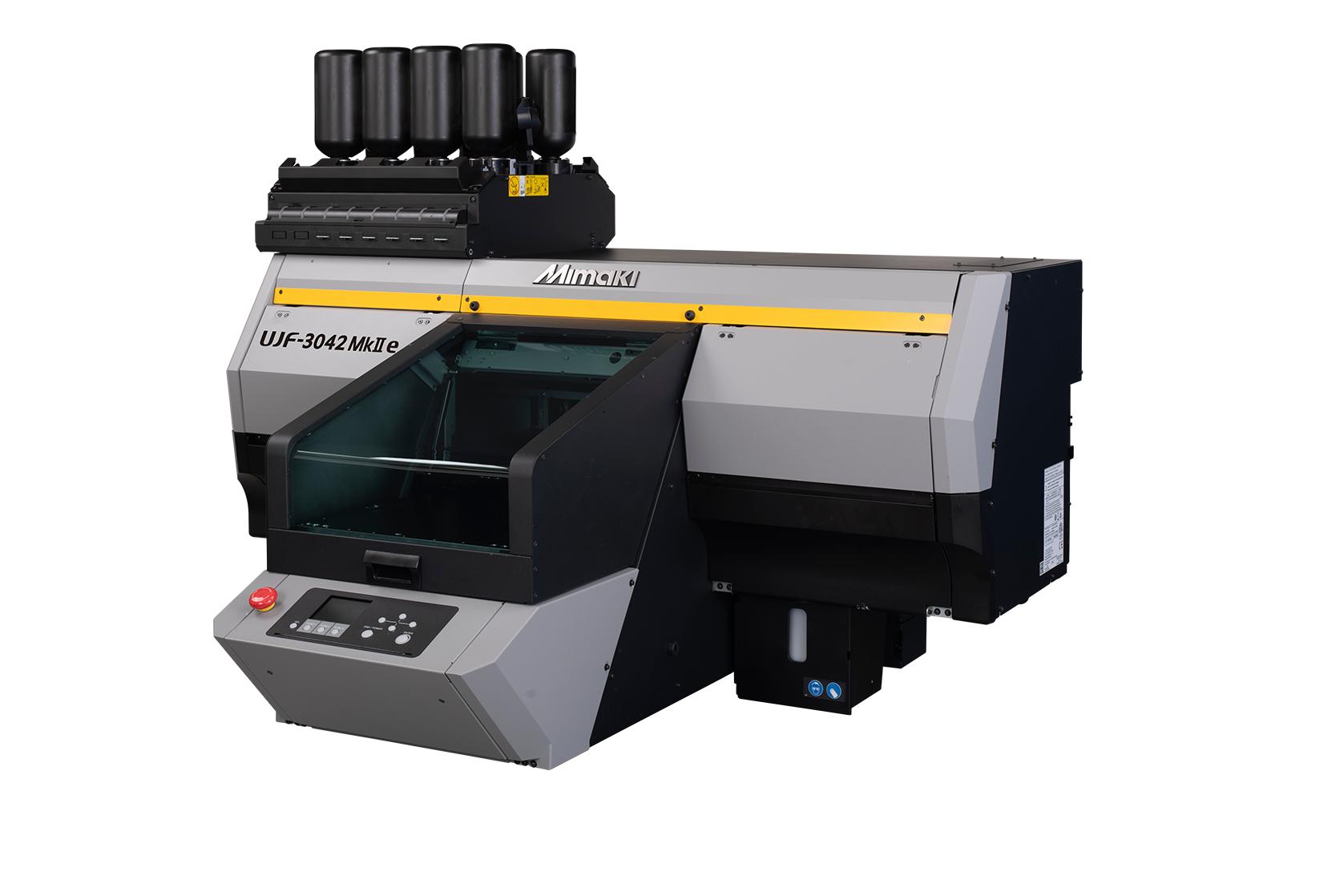

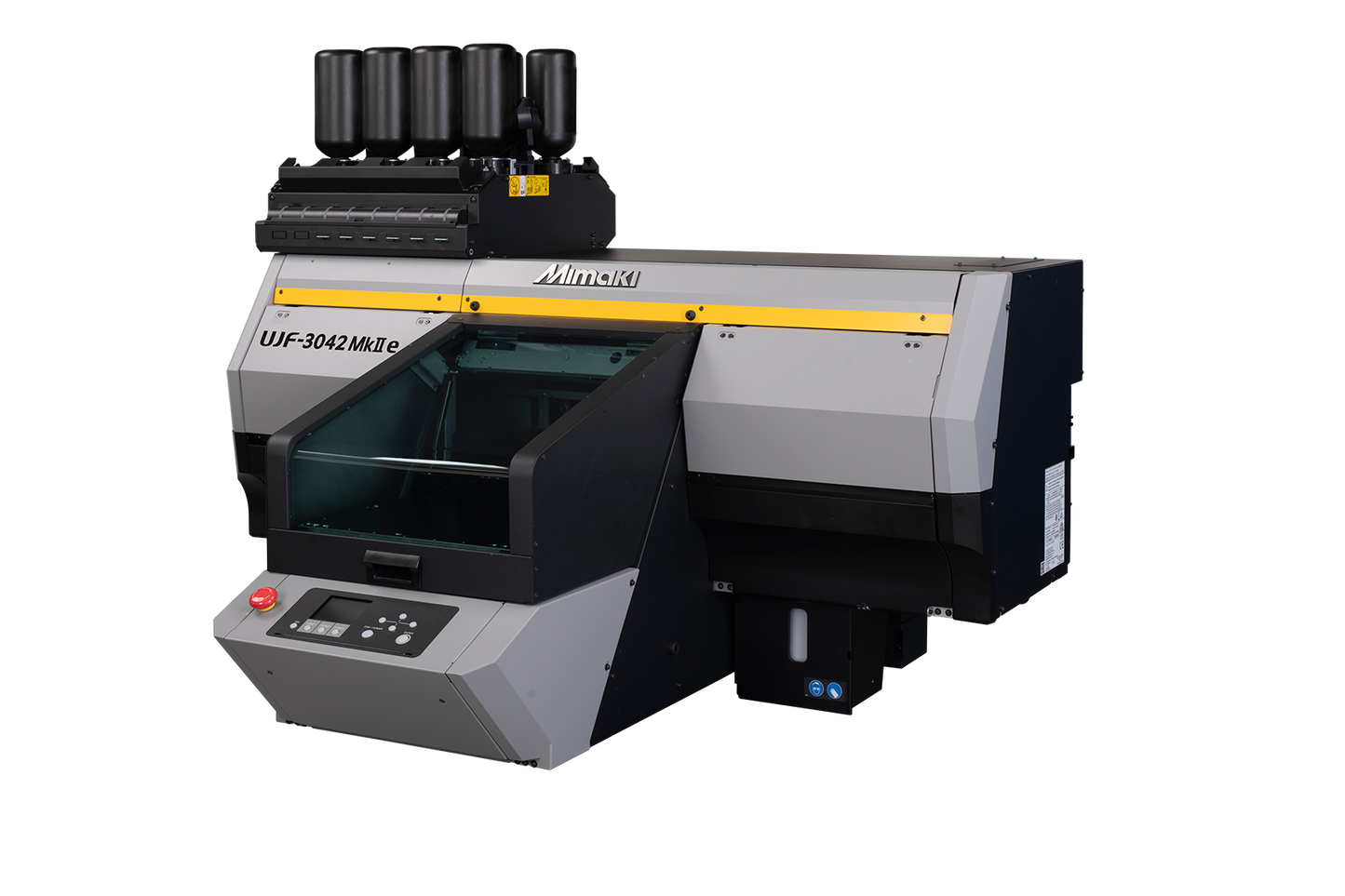

Mimaki UFJ-3042 MkII e UV Flatbed Printer

Turn everyday products into high-value customized merchandise with the Mimaki UJF-3042 MkII e.

This compact UV-LED flatbed printer allows businesses to print full-color graphics directly onto rigid and flexible materials. Its 11.8 × 16.5-inch print area is ideal for promotional products, awards, packaging prototypes, personalized gifts, industrial components, and short-run specialty products.

With support for white ink, clear ink, and optional primer, the UJF-3042 MkII e can produce vibrant graphics on clear, colored, dark, and specialty substrates. Raised clear-ink effects, textures, braille, and layered designs give your business even more ways to create premium products customers are willing to pay for.

Print Directly Onto Products

The UJF-3042 MkII e prints directly onto the surface of compatible products and materials. UV-LED lamps cure the ink during printing, allowing finished products to be handled immediately.

Direct-to-object printing eliminates many of the separate transfer, mounting, and finishing steps required by other decoration methods.

This can help your business:

• Reduce production time
• Produce short runs profitably
• Personalize individual items
• Create prototypes quickly
• Offer faster turnaround times
• Add full-color graphics to more products
• Bring outsourced customization work in-house

Compact 11.8 × 16.5-Inch Print Area

The printer offers a maximum printable area of 11.8 × 16.5 inches and a maximum media area of approximately 14 × 18 inches.

Key Features

• Compact UV-LED flatbed printer
• 11.8 × 16.5-inch maximum print area
• Maximum media area of approximately 14 × 18 inches
• Prints on objects up to approximately 6.02 inches thick
• Supports products weighing up to 11 pounds
• Maximum resolution of 1200 × 1200 dpi
• CMYK, white, and clear ink capabilities
• Optional digitally printed primer
• Rigid and flexible UV-ink options
• Raised texture and braille printing
• Mimaki Clear Control
• Variable-data printing
• Jig-printing functionality
• Enclosed print area
• Enhanced automatic maintenance
• White-ink circulation technology
• Automatic nozzle monitoring
• Nozzle recovery technology
• RasterLink7 RIP software included
• Mimaki Device Language included
• Optional Kebab rotary attachment

Technical Specifications

Printer type: UV-LED flatbed inkjet printer
Printheads: Three on-demand piezo printheads in a staggered configuration
Maximum print resolution: 1200 × 1200 dpi
Maximum four-color print speed: 26.7 square feet per hour
Maximum print area: 11.8 × 16.5 inches
Maximum media area: 14 × 18 inches
Maximum media thickness: 6.02 inches
Maximum media weight: 11 pounds
Rigid ink: Mimaki LH-100
Flexible inks: Mimaki LUS-120 and LUS-150
Available colors: Cyan, Magenta, Yellow, Black, White, and Clear, depending on ink type
Primer: Mimaki PR-200
Interface: Gigabit Ethernet and USB 2.0
Power requirement: Single-phase AC 100–240V
Maximum power consumption: 1,000 watts or less
Printer dimensions: Approximately 53.4 × 50.8 × 33.7 inches
Printer weight: Approximately 297.6 pounds
Operating temperature: 68–86°F
Operating humidity: 35–65% RH, non-condensing
