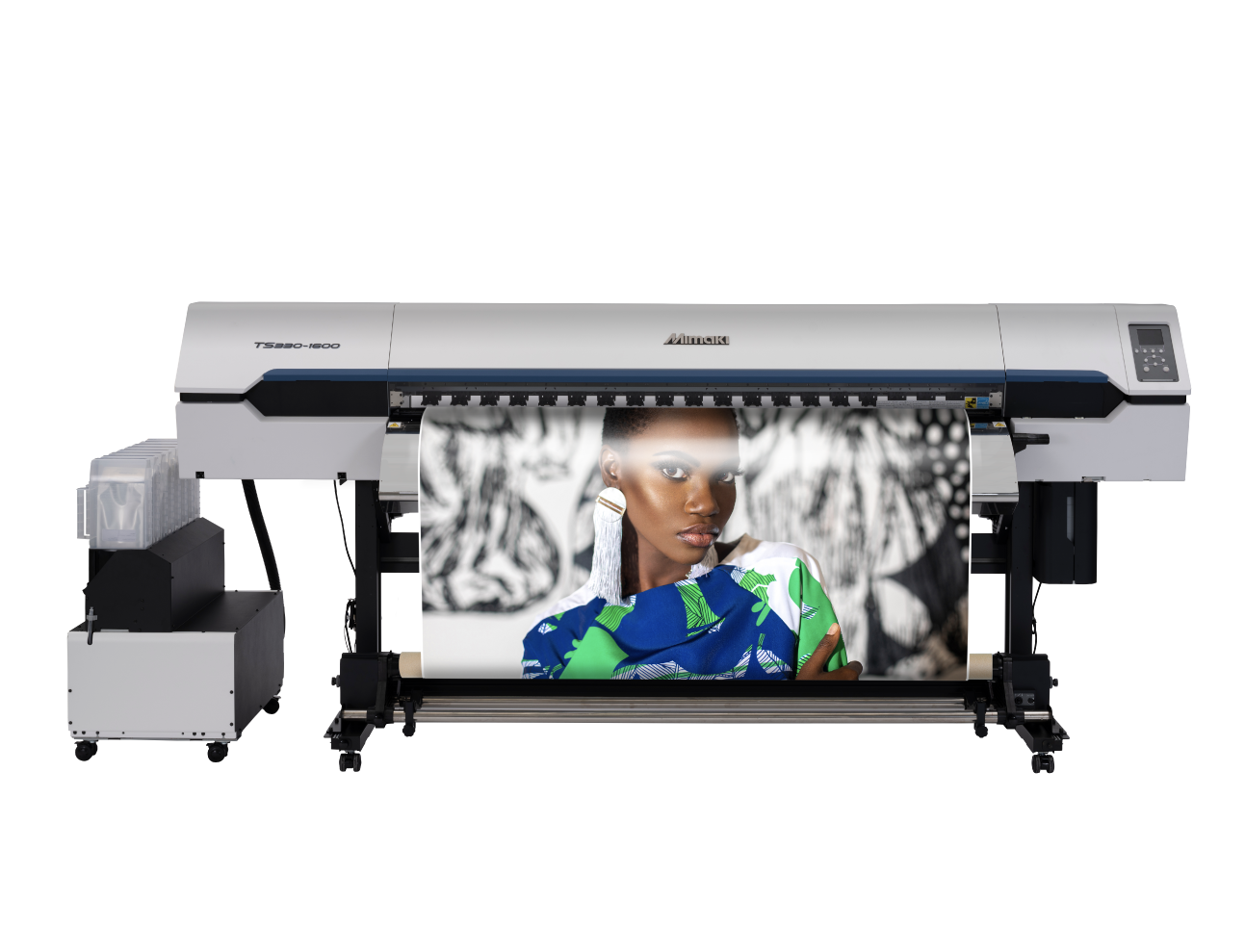

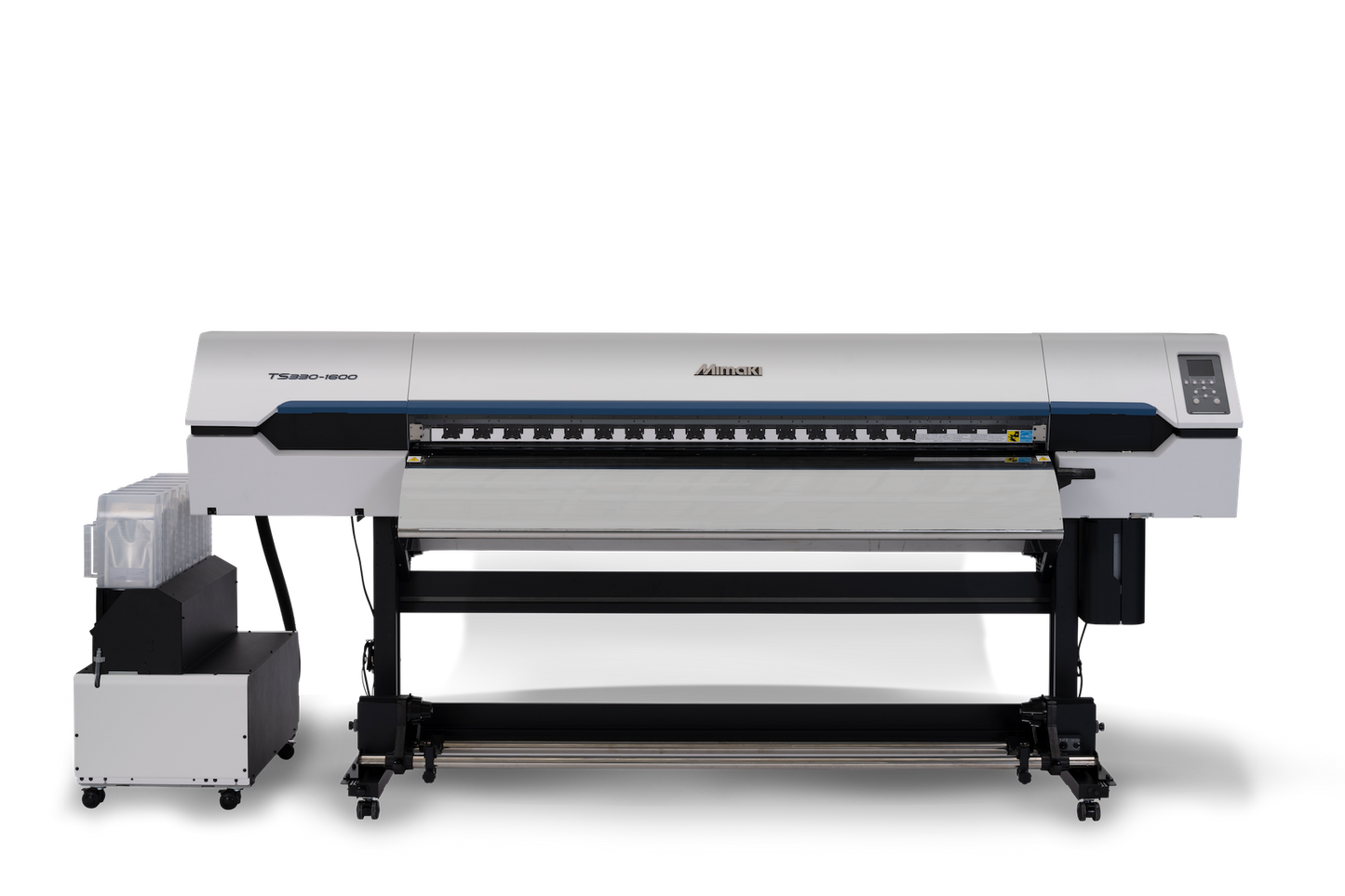

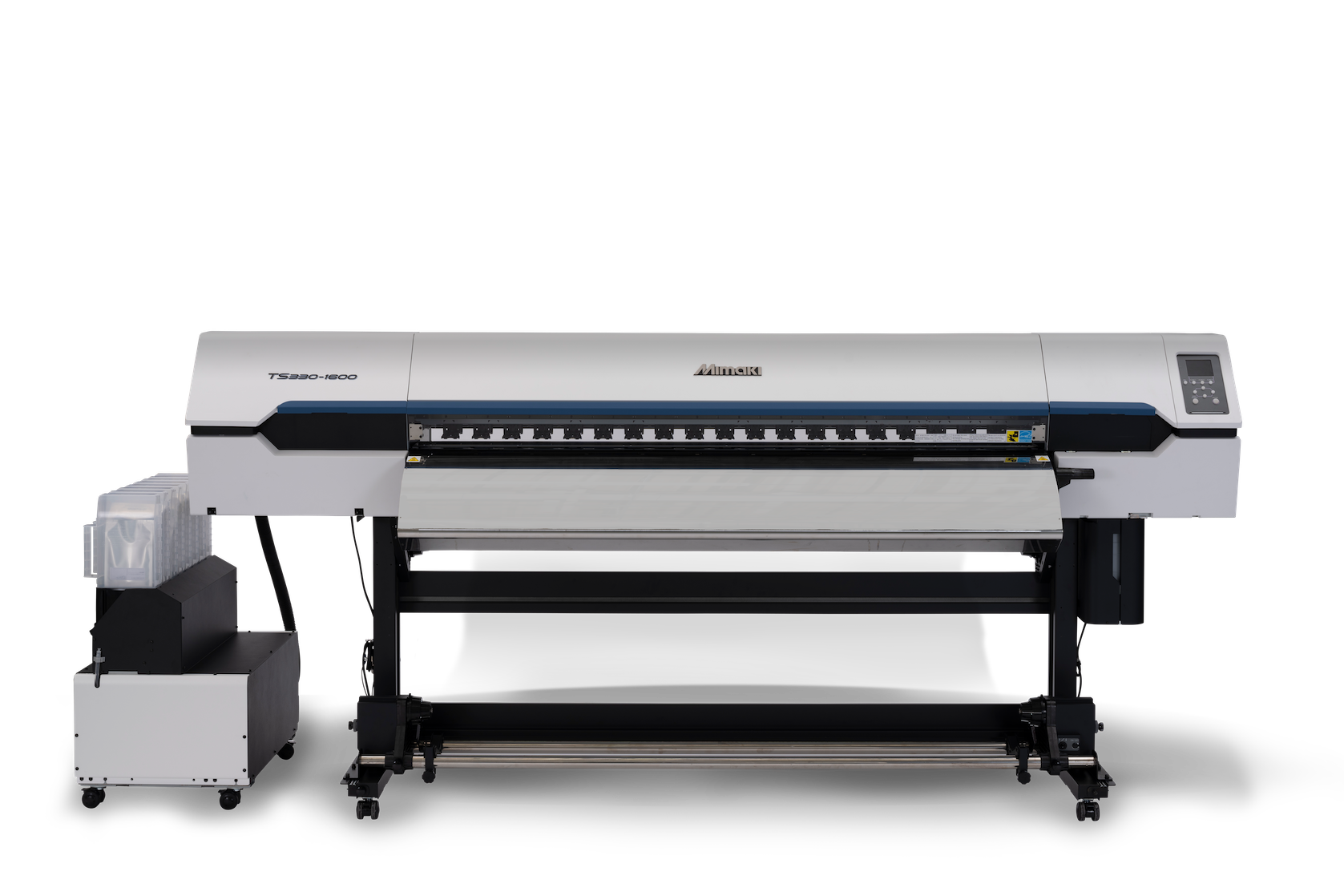

Mimaki TS330-1600 Dye Sublimation Printer

Take on demanding textile-production work with the speed, color, and reliability of Mimaki’s flagship dye-sublimation transfer printer.

The Mimaki TS330-1600 is a 64-inch production printer designed for apparel decorators, sportswear manufacturers, soft-signage producers, fashion brands, and growing print businesses. It combines high-speed output with Mimaki’s advanced image-quality and media-handling technologies to deliver consistent results across short runs and continuous production.

With multiple ink configurations—including Orange, Violet, Fluorescent Pink, and Fluorescent Yellow—the TS330-1600 gives your shop the flexibility to reproduce a wider range of brand colors, vivid sportswear graphics, smooth gradients, and high-impact fluorescent designs.

Built for High-Volume Sublimation Production

The TS330-1600 is designed for businesses that have moved beyond entry-level sublimation equipment and need a dependable platform for larger orders, faster turnaround times, and consistent daily operation.

It can produce up to 1,453 square feet per hour in its fastest print mode, with additional production and high-quality modes available to balance speed with the requirements of each job.

This productivity makes the TS330-1600 a strong fit for:

• High-volume sportswear production
• Team uniforms and jerseys
• Cut-and-sew apparel
• Fashion textiles
• Flags and banners
• Soft signage
• Backlit fabric displays
• Trade-show graphics
• Interior décor
• Custom fabric production

Actual output speed will vary based on the selected resolution, ink configuration, artwork, transfer paper, and required image quality.

64-Inch Printing Width

The TS330-1600 provides a maximum print width of 63.4 inches and supports media up to 63.8 inches wide.

Key Features

• 64-inch dye-sublimation transfer printer
• Maximum print width of 63.4 inches
• Maximum media width of 63.8 inches
• Print speeds up to 1,453 square feet per hour
• Two staggered on-demand piezo printheads
• Resolutions up to 1200 dpi
• Four-, six-, seven-, and eight-color configurations
• Orange and Violet expanded-gamut inks
• Fluorescent Pink and Fluorescent Yellow inks
• Mimaki Weaving Dot Technology
• Stable dual-motor media take-up
• Support for rolls weighing up to 99.2 pounds
• Standard two-liter ink packs
• Optional 10 kg bulk-ink system
• Automatic media cutting
• Automatic nozzle monitoring
• Nozzle recovery technology
• RasterLink7 RIP software
• Optional textile-production RIP software
• Remote printer monitoring

Technical Specifications

Printer type: Dye-sublimation transfer inkjet printer
Printheads: Two on-demand piezo printheads in a staggered configuration
Print resolutions: 300, 600, 900, and 1200 dpi
Maximum print width: 63.4 inches
Maximum media width: 63.8 inches
Maximum media thickness: 1 mm
Maximum roll diameter: Approximately 9.8 inches
Maximum roll weight: 99.2 pounds
Compatible roll cores: Two- and three-inch cores
Media cutting: Automatic cutter integrated into the printhead carriage
Ink type: Mimaki Sb411 and fluorescent Sb410 dye-sublimation ink
Standard ink capacity: Two-liter ink packs
Optional ink capacity: 10 kg bulk-ink tanks
Available ink colors: Blue, Magenta, Yellow, Black, Light Blue, Light Magenta, Light Black, Violet, Orange, Fluorescent Pink, and Fluorescent Yellow
Interface: Gigabit Ethernet and USB 2.0
Maximum power consumption: Approximately 1,440 watts
Standard power consumption: Approximately 800 watts
Printer dimensions: Approximately 124.8 × 32.3 × 51.4 inches
Printer weight: Approximately 531.3 pounds
Operating temperature: 68–86°F
Operating humidity: 35–65% RH, non-condensing
