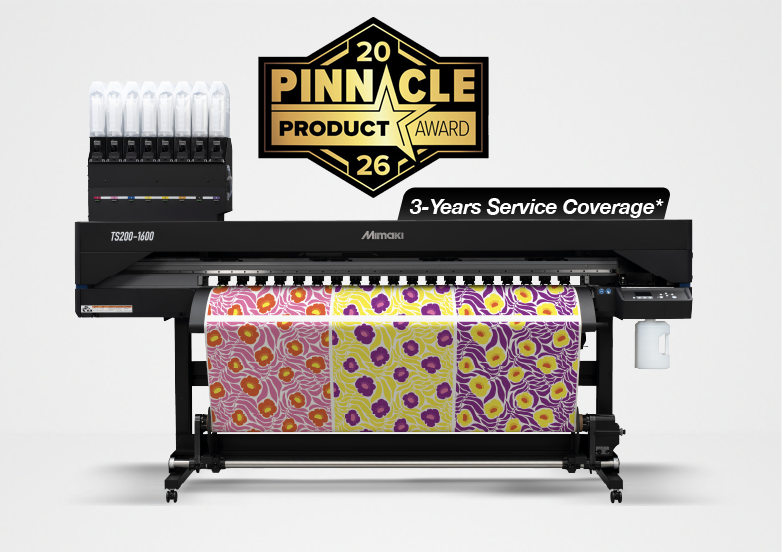

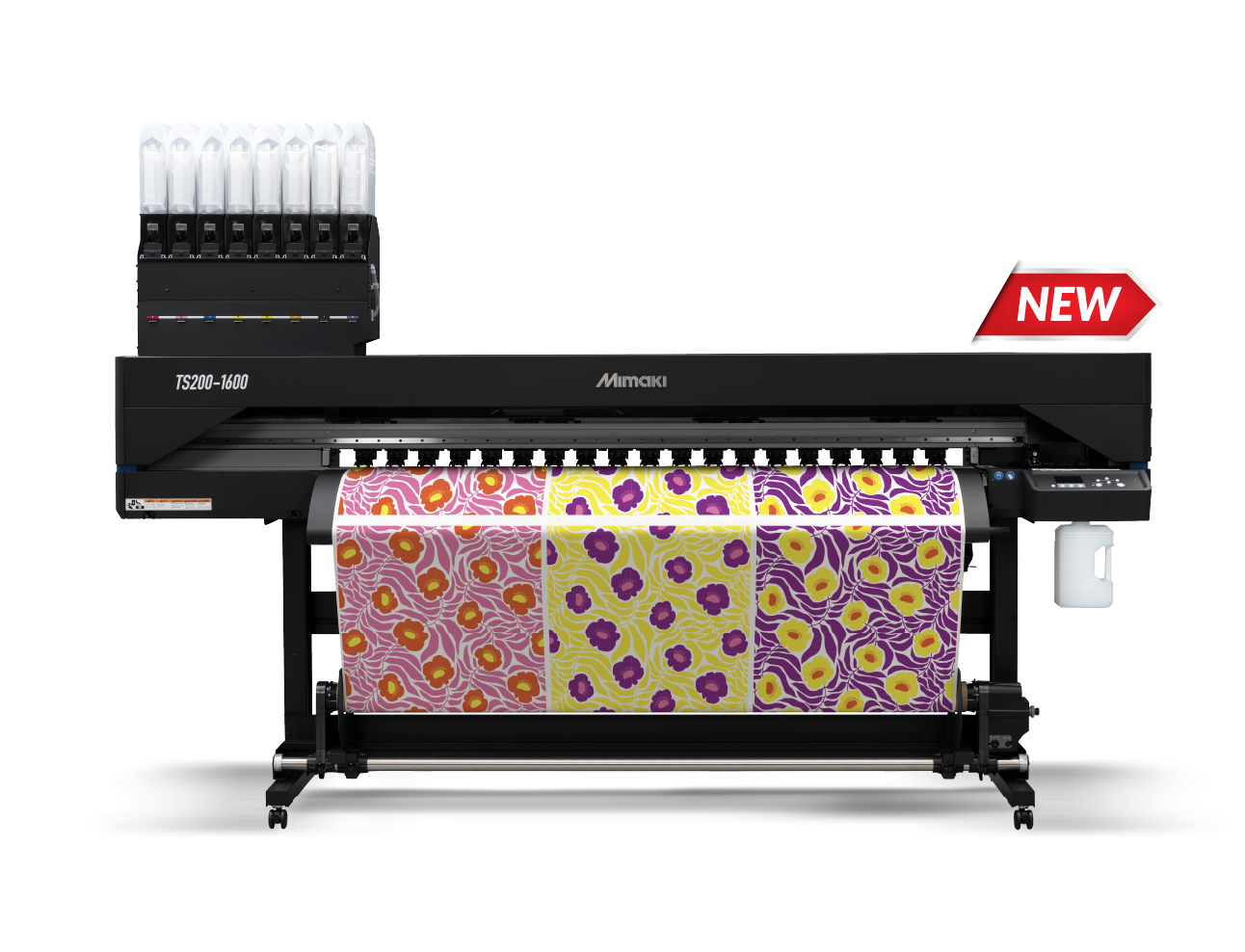

Mimaki TS200-1600 Dye Sublimation Printer

Bring professional dye-sublimation printing into your shop with a system designed to balance production speed, image quality, and ease of operation.

The Mimaki TS200-1600 is a 64-inch sublimation transfer printer built for print shops, apparel decorators, promotional-product businesses, and entrepreneurs looking to produce vibrant textiles and customized goods. Powered by technology developed for Mimaki’s higher-end 330 Series printers, the TS200-1600 delivers smooth gradients, sharp details, and rich color from a compact, accessible production platform.

Choose a traditional four-color configuration for efficient everyday production or expand into an eight-color setup with Orange, Violet, Fluorescent Pink, and Fluorescent Yellow for brighter colors and more creative application possibilities.

Expand Into Dye Sublimation Production

The TS200-1600 prints onto sublimation transfer paper. The printed design is then transferred using heat and pressure onto polyester fabric or a compatible polyester-coated product.

This process produces graphics that become part of the material instead of sitting on its surface. The result is a vibrant, durable print that will not crack, peel, or create a heavy hand on fabric.

The TS200-1600 can help your business produce:

• Custom sportswear
• Team uniforms
• Performance apparel
• Fashion garments
• Promotional products
• Flags and banners
• Soft signage
• Trade-show graphics
• Interior fabrics
• Custom home décor
• Tapestries
• Polyester-coated hard goods

Key Features

• 64-inch dye-sublimation transfer printer
• Maximum print width of approximately 63.3 inches
• Print speeds up to 753.5 square feet per hour
• Mimaki 330-Series print engine
• Four- or eight-color configurations
• Orange and Violet expanded-gamut inks
• Fluorescent Pink and Fluorescent Yellow inks
• Two-liter degassed ink packs
• Resolutions up to 900 dpi
• Remote printer monitoring
• RasterLink7 RIP software
• Optional TxLink5 Lite workflow software
• Automatic nozzle monitoring
• Nozzle recovery technology
• OEKO-TEX ECO PASSPORT certified ink
• Compact and energy-efficient design

Technical Specifications

Printer type: Dye-sublimation transfer inkjet printer
Printhead: Single on-demand piezo printhead
Print resolution: 300, 600, and 900 dpi in the media-feed direction; 600 dpi across the print width
Maximum print speed: 753.5 square feet per hour in four-color mode
Maximum print width: 63.3 inches
Maximum media width: 63.7 inches
Maximum media thickness: 0.039 inches
Standard maximum roll weight: 55.1 pounds
Optional maximum roll weight: 99.2 pounds with optional foot-leveling kit
Maximum roll diameter: Approximately 7.1 inches
Roll core compatibility: Two- and three-inch cores
Ink type: Mimaki Sb411 dye-sublimation ink
Ink capacity: Two-liter ink packs
Available ink colors: Blue, Magenta, Yellow, Black, Violet, Orange, Fluorescent Pink, and Fluorescent Yellow
Interface: Gigabit Ethernet and USB 2.0
Maximum power consumption: 250 watts
Printer dimensions: Approximately 109.1 × 29.4 × 63.9 inches
Operating temperature: 68–86°F
Operating humidity: 35–65% RH, non-condensing
