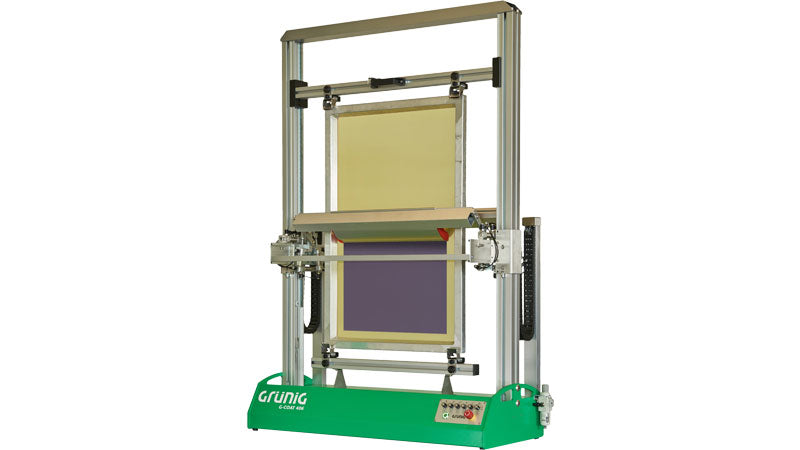

Grunig G-Coat 406S Auto Coating Machine Including Stand

Grunig G-Coat 406S Auto Coating Machine Including Stand

Regular price $15,995.00
Regular price Sale price $15,995.00
Sale Sold out

The G-COAT 406 is a newly developed automatic coating machine that features Grünig’s “Plug & Coat” technology—simply unpack, setup, and start coating. It is an extremely compact bench-top model and boasts a durable, low maintenance construction.

The G-COAT 406 is available in two sizes: Standard, with support for screens up to 40″ H x 30″ W (1000 x 700 mm) and XL, capable of handling a max screen size of 55″ H x 40″ W (1400 x 1000 mm).

Coating is possible from one side, or both sides simultaneously using the included G-COAT 401 coating trough. All coating parameters can be quickly and easily programmed through the control panel. The coating process is extremely smooth thanks to special sliding guides and a toothed belt drive unit.

Frame profile height is adjustable within a range of 1 - 4″ (25 - 100 mm)
Tolerance of ± 1 µm ensures reproducibility
Compact, durable construction
Compact easy-mount stand available for floor installations


Power Supply
230 V (L + N + PE) or 110 V (L + N + PE), 50-60 Hz, 2.6 A or 5.2 A
Compressed Air Supply
58 psi, 21 f³/h (4 Bar, 0.6 m³/h)

Product Options

Standard Version
Supports screens up to 40″ H x 30″ W (1000 x 700 mm)
XL Version
Supports screens up to 55″ H x 40″ W (1400 x 1000 mm)

Price does not include shipping/freight fees.   All freight costs will be invoiced separately at carrier rates and are due prior to shipping.
