Exile Technologies Spider II CTS System

Exile Technologies Spider II CTS System

$56,000.00
$56,000.00
Sale Sold out
Shipping calculated at checkout.

Increasing screen room production is easier with EXILE’s Spyder II computer-to-screen system. The Spyder II creates screen masks with incredible speed and accuracy, imaging screens at over two square feet per minute at 600 dpi. At nearly twice the throughput of the original Spyder, this CTS printer streamlines the prepress workflow providing massive reductions in labor and costs, while saving you valuable time in press setup.

BENEFITS

  • Bi-directional printing for faster output
  • Reduces screen room labor
  • Supports frame sizes up to 46” x 55”
  • Better density than most film and liquid ink CTS systems.

Dimensions:
Spyder 30 – 32” x 49” x 61” (79 cm x 124 cm x 155 cm) | Weight: 300 lbs (136 kg)
Spyder 52 – 32” x 80” x 61” (79 cm x 203 cm x 155 cm) | Weight: 340 lbs (150 kg)

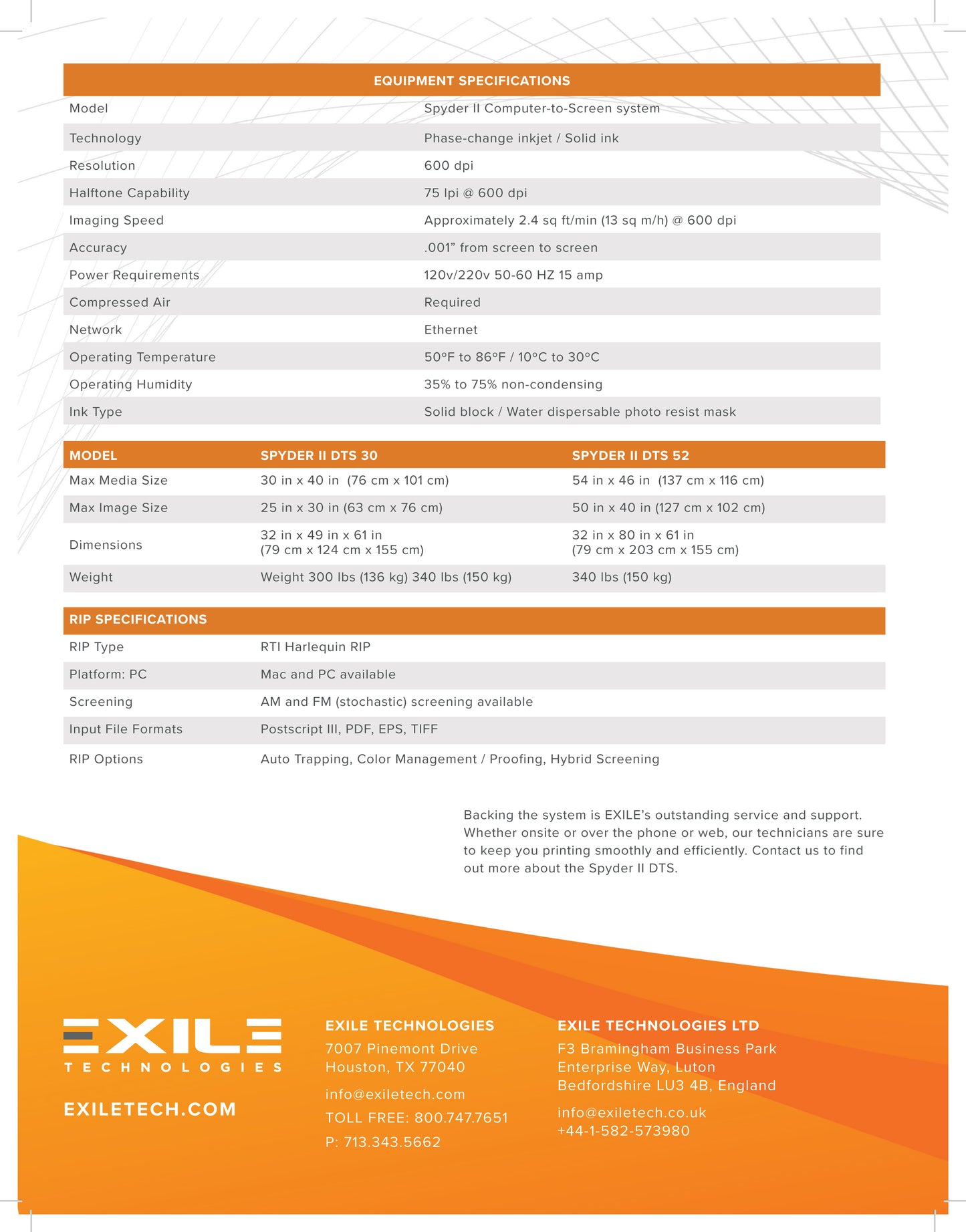

SPECIFICATIONS

EQUIPMENT SPECIFICATIONS

Model: Spyder II Computer-to-Screen System
Technology: Phase-change inkjet / Solid ink
Resolution: 600 dpi
Halftone Capability: 75 lpi @ 600 dpi
Imaging Speed: Approximately 2.4 sq ft/min (13 sq m/h) @ 600 dpi
Accuracy: .001” from screen to screen
Power Requirements: 120v/220v 50-60 HZ 15 amp
Compressed Air: Required
Network: Ethernet
Operating Temperature: 50°F to 86°F / 10°C to 30°C
Operating Humidity: 35% to 75% non-condensing
Ink Type: Solid block / Water dispersible photo resist mask

RIP SPECIFICATIONS

RIP Type: RTI Harlequin RIP
Platform: PC
Screening: AM and FM (stochastic) screening available
Input File Formats: Postscript III, PDF, EPS, TIFF
RIP Options: Auto Trapping, Color Management / Proofing, Hybrid Screening
