Exile Screenmaker Freestyler CTS

Exile Screenmaker Freestyler CTS

$16,200.00
$16,200.00
Sale Sold out
Shipping calculated at checkout.

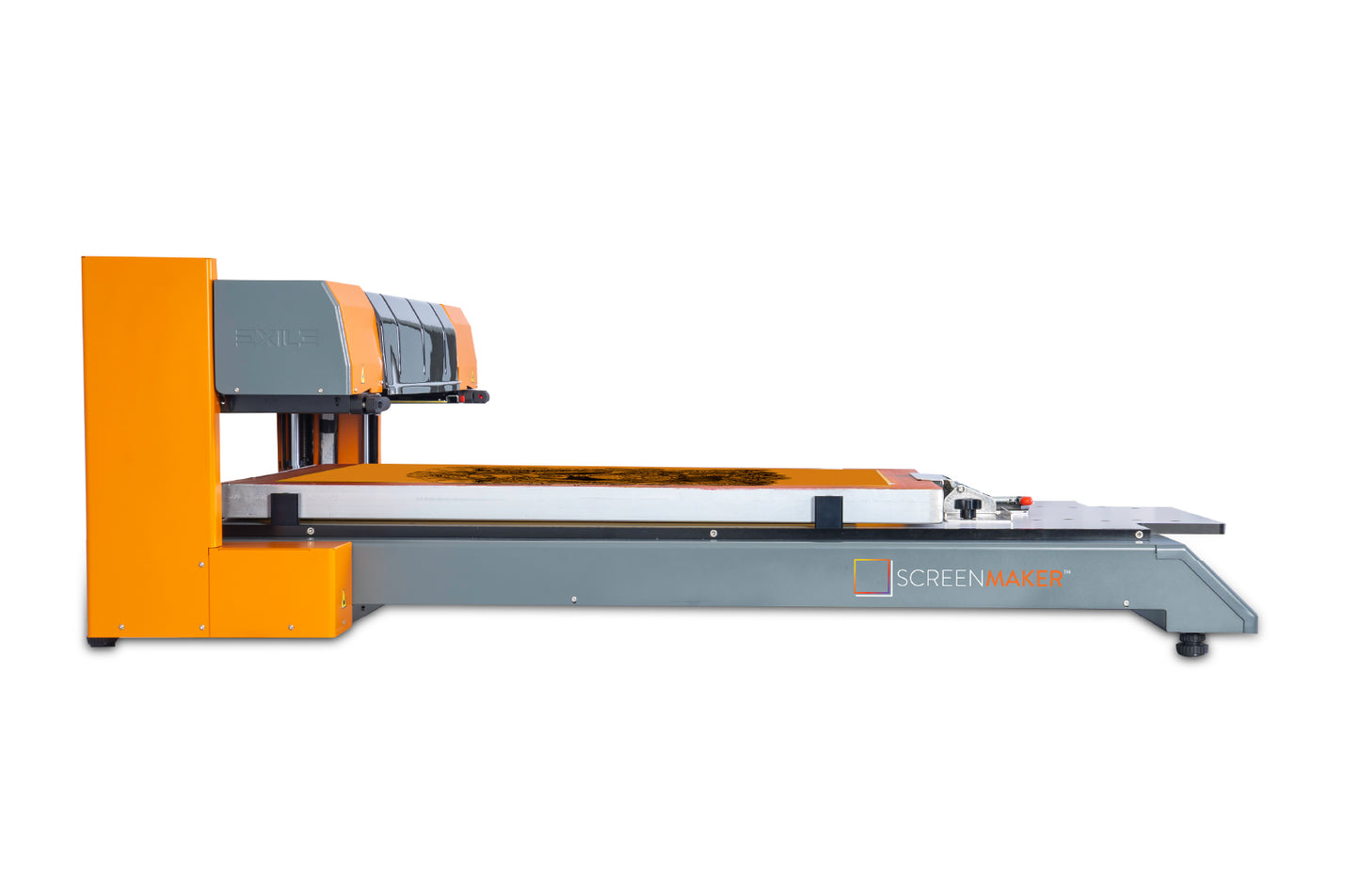

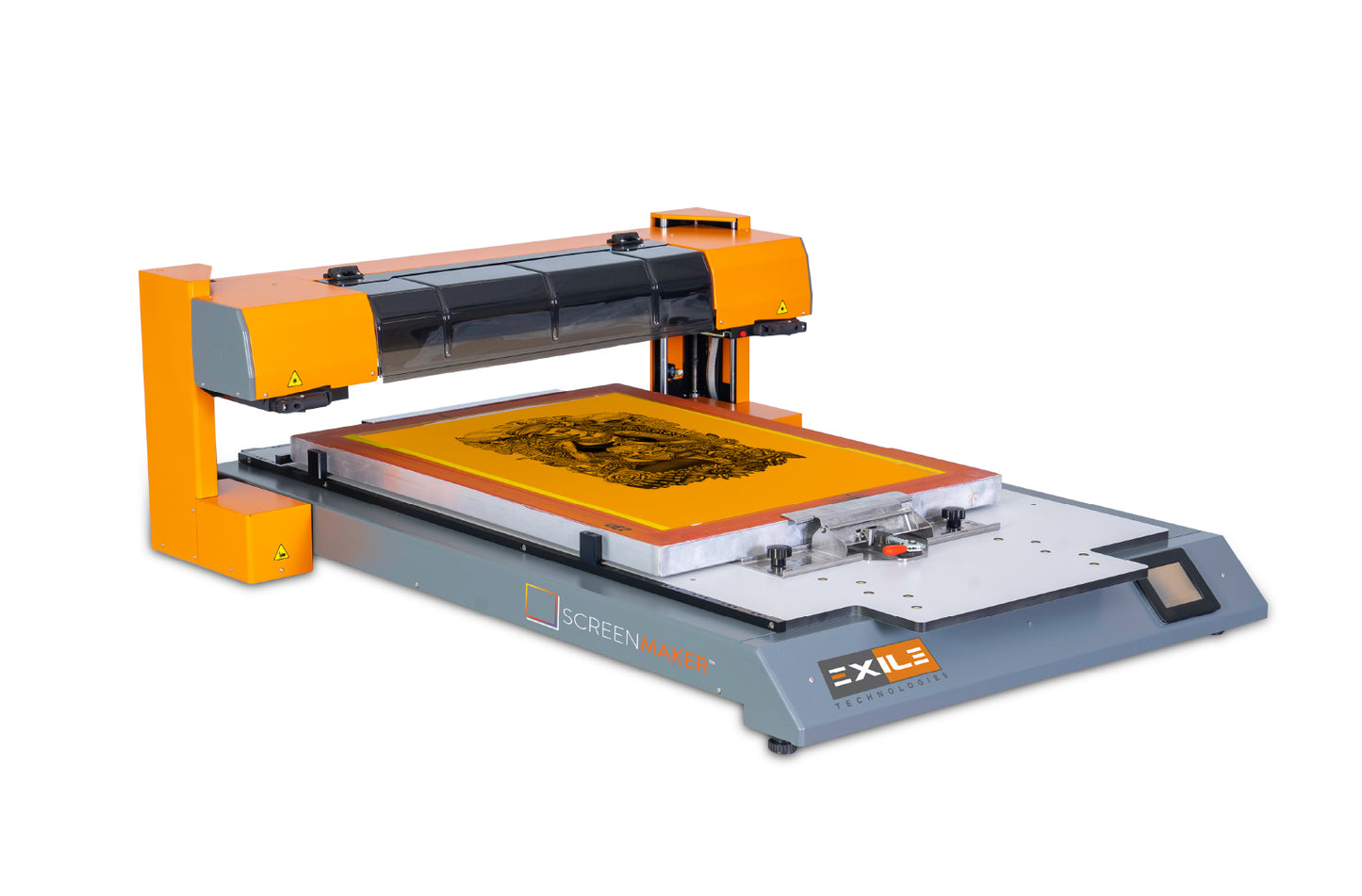

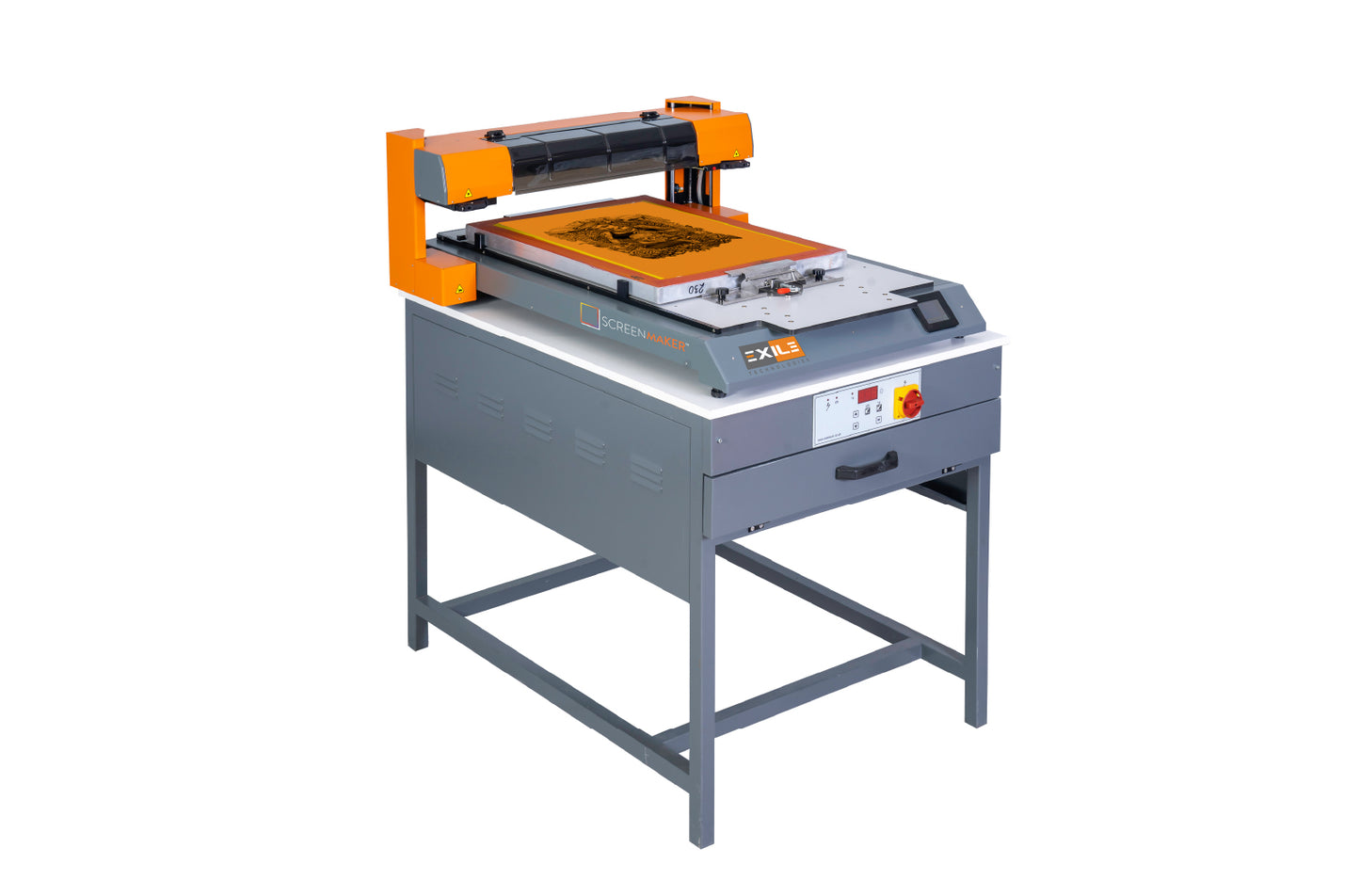

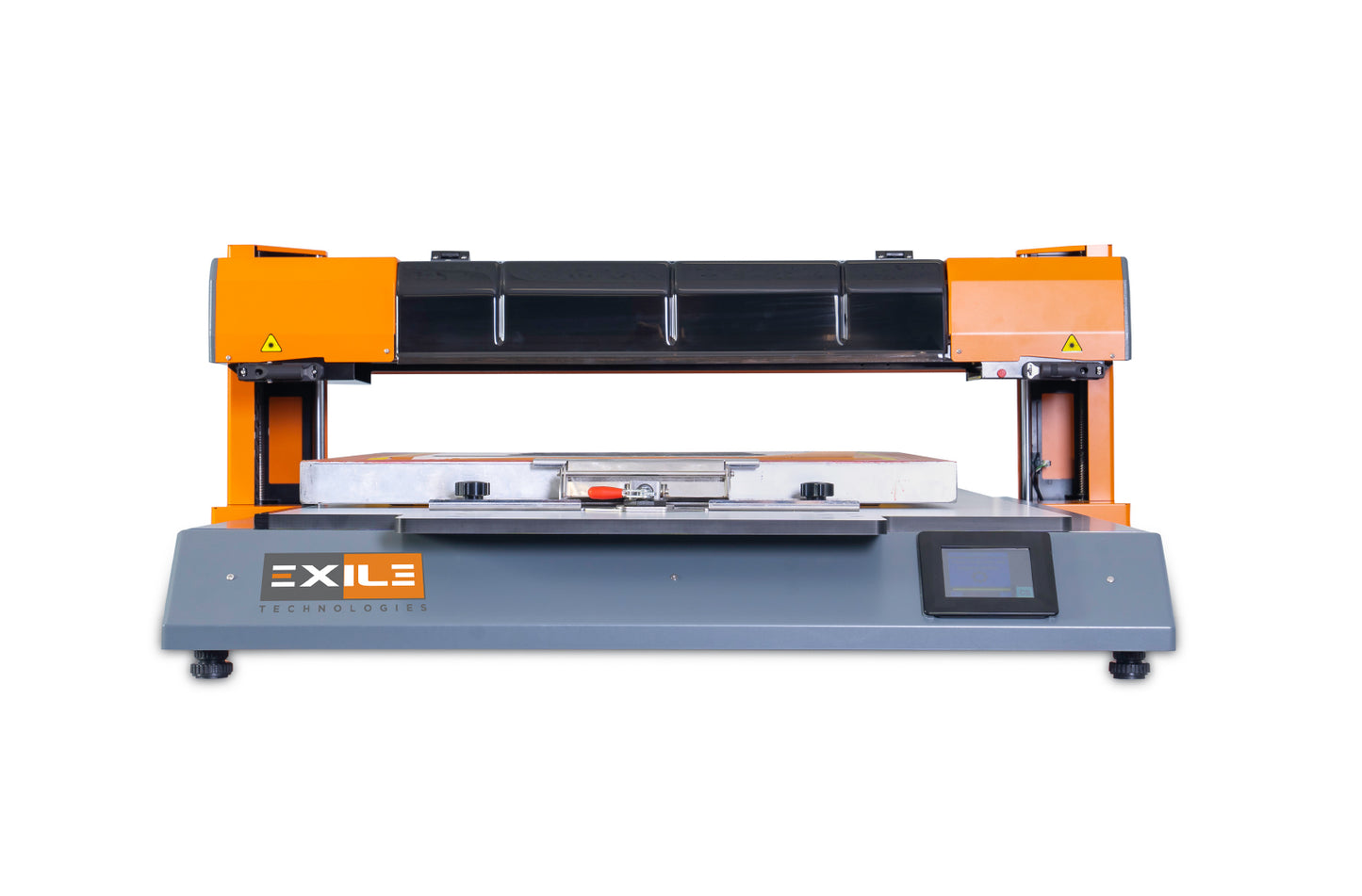

At last, a low-cost, direct-to-screen solution that prints digital images directly onto a coated screen. SCREENMAKER CTS produces high-quality stencils in minutes, with automatic digital image registration built in.

After imaging, the screen is ready for immediate exposure without the need for a glass or vacuum. Pinholing and undercutting are completely eliminated, so small halftone highlight dots and shadow details are accurately reproduced.

The SCREENMAKER CTS is powered by CADLink’s SCREENMAKER RIP for imaging color separations quickly and easily from any Mac or Windows graphics application.

It also includes a stand-alone Windows printing utility for print queue management, printer setup, and maintenance (ink level monitoring, nozzle checks, head cleaning, head alignment, etc.).

BENEFITS

  • Metal body industrial design
  • Robust y-axis for greater precision
  • Native support for 1-bit TIFF workflow
  • Micro-weaving technology
  • Increases print speed
  • Bi-directional printing for faster print modes
  • User-friendly print utility software

SPECIFICATIONS

EQUIPMENT SPECIFICATIONS

Model: SCREENMAKER Computer-to-Screen System
Printhead: Thermal Drop on Demand Inkjet (1-4 offset heads – software selectable)
Resolution: 600×1200, 1200×1200 & 1200×2400 dpi for max screen rulings of 65 dpi
Max Media Size: 40” (1050 mm) high x 26” (600 mm) wide
Max Image Size: 29” (735 mm) high x 20” (508 mm) wide
Imaging Speed: FAST = 2.5 min per sq ft, NORMAL = 5 min per sq ft,
HQ = 8 min per sq ft
Interface: USB (via PC Windows)
Voltage: AC 120/220V Auto-sensing
Environment: 40-70% relative humidity
Weight: 110 lbs (50kg)
Dimensions: 48” x 40” x 16.5” (1250 mm x 1020 mm x 420 mm)

RIP SPECIFICATIONS

Ink Type: Pigment-based aqueous UV-Black ink
UV Blocking Capability: Enhanced UV resistance – black density in excess of 3.5 UV
Ink Characteristics: Water soluble and non-hazardous

View full details
