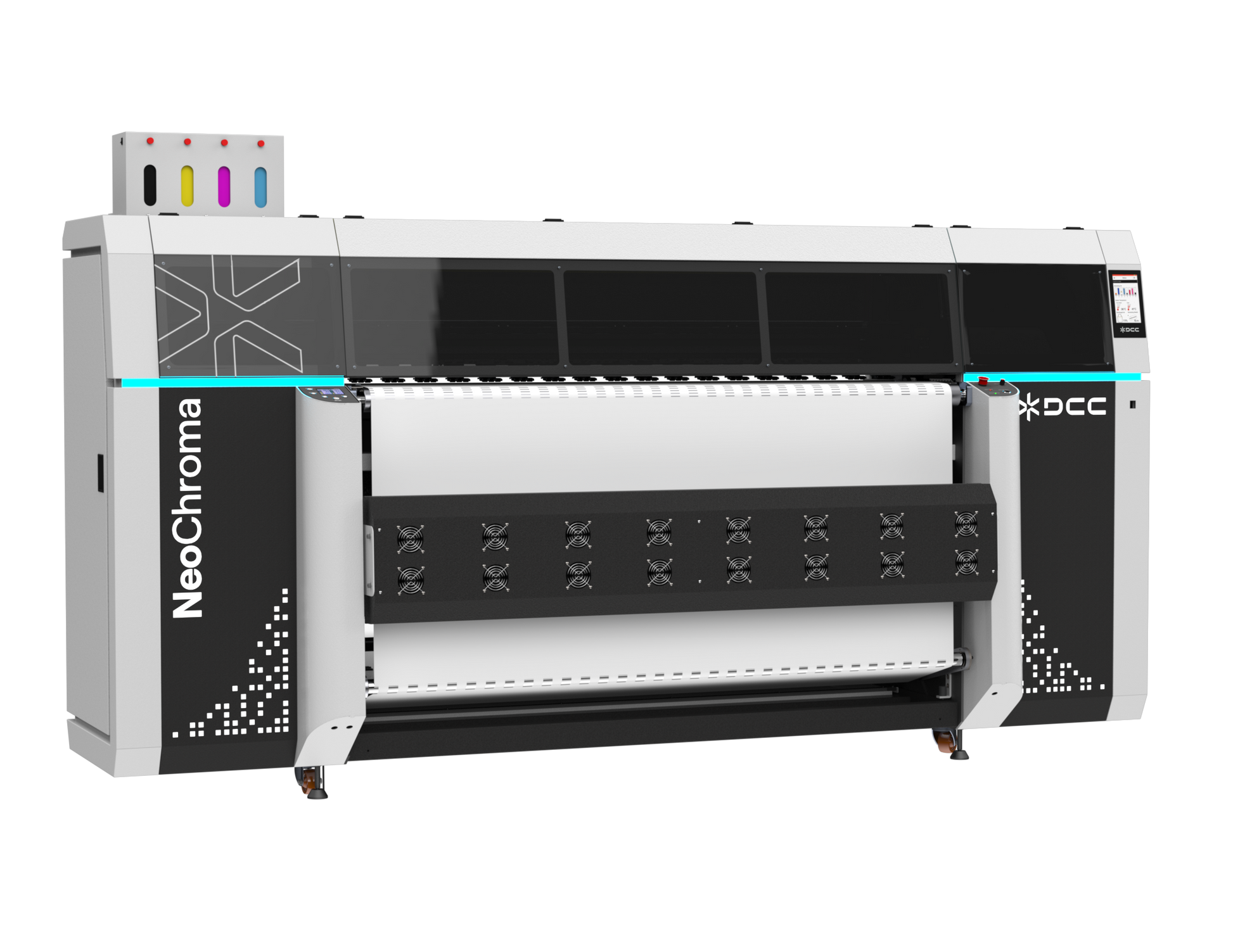

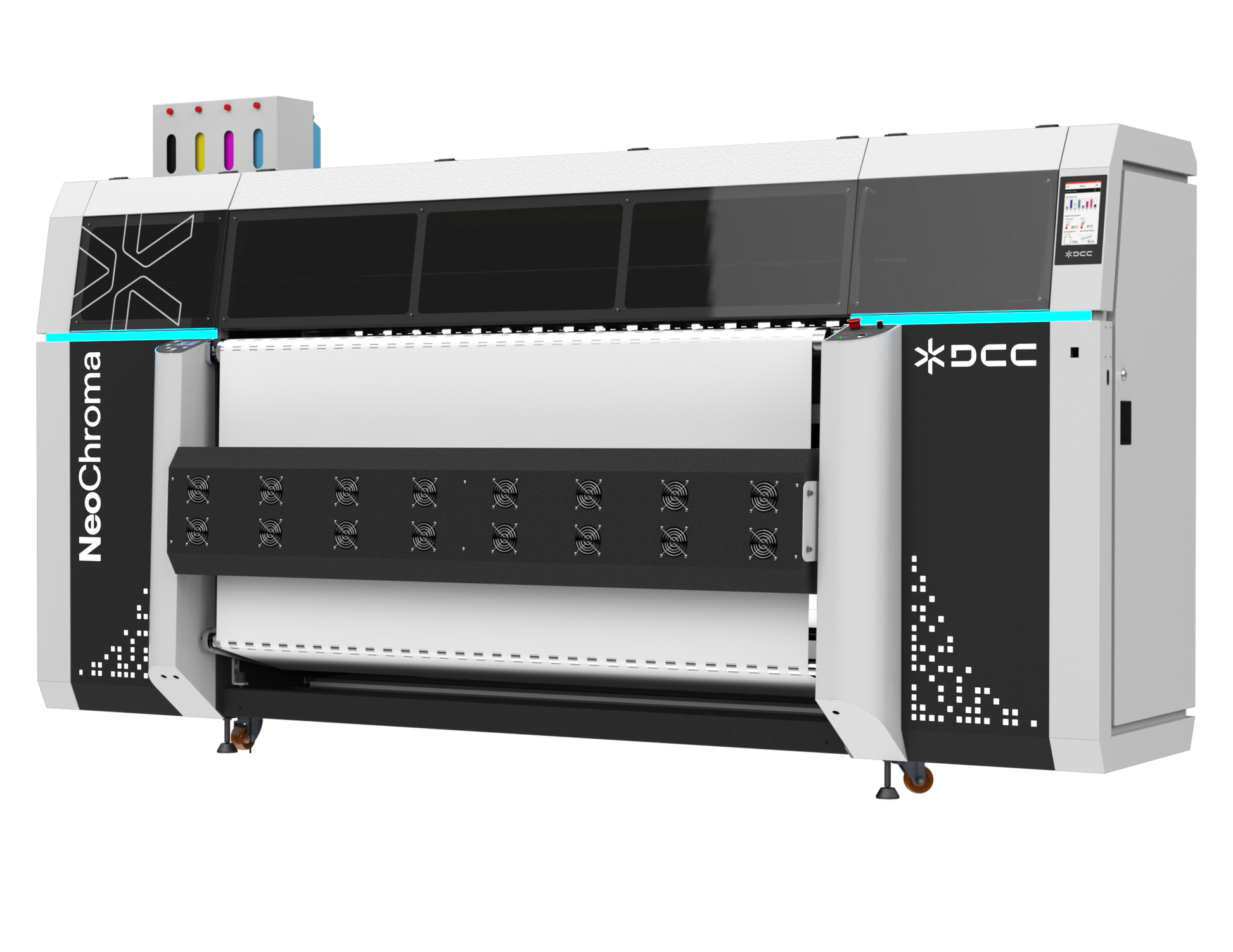

DCC NeoChroma S-45 Series Dye Sublimation Printer

The DCC NeoChroma S-45 Series is a 72-inch industrial dye-sublimation printing platform built for high-volume sportswear, fashion, home décor, and soft-signage production.

Available in three upgradable configurations, the S-45 platform allows businesses to begin with the production capacity they need today and expand as order volume grows. Each model combines Epson I3200-A1 print heads, large-capacity ink tanks, automated media handling, and an integrated intelligent drying system.

Three Upgradable Production Configurations

The NeoChroma S-45 platform is available in three configurations:

NeoChroma S-45350+ Pro
Equipped with four Epson I3200-A1 print heads and capable of printing up to 2,023 square feet per hour.

NeoChroma S-45450+ Pro
Equipped with six Epson I3200-A1 print heads and capable of printing up to 3,003 square feet per hour.

NeoChroma S-45500 Pro
Equipped with eight Epson I3200-A1 print heads and capable of printing up to 3,934 square feet per hour.

The field-upgradable design allows the platform to be expanded without replacing the entire printer.

Built for Long, High-Volume Production Runs

The S-45 Series supports media rolls up to 18 inches in diameter and approximately 9,850 feet long, helping reduce roll changes during extended production.

Its automated loading and take-up system, wrinkle-removal rollers, tension controls, double air shafts, and automatic paper-release system help maintain stable media movement at high printing speeds.

Key Features

• 72-inch dye-sublimation printing platform
• Four-, six-, or eight-print head configurations
• Epson I3200-A1 print head technology
• Maximum speeds up to 3,934 sq. ft./hr
• Field-upgradable production capacity
• CMYK ink configuration
• 5-liter main ink tanks
• 1.8-liter secondary ink tanks
• Individual low-ink alarms
• Intelligent integrated curing system
• Up to approximately 12% lower power consumption
• Supports media rolls up to 18 inches in diameter
• Automatic and manual media loading
• Automated take-up system
• Double air-shaft media system
• Wrinkle-removal and tensioner rollers
• Automatic moisturizing and cleaning system
• Touchscreen printer controls
• Gigabit Ethernet connectivity
