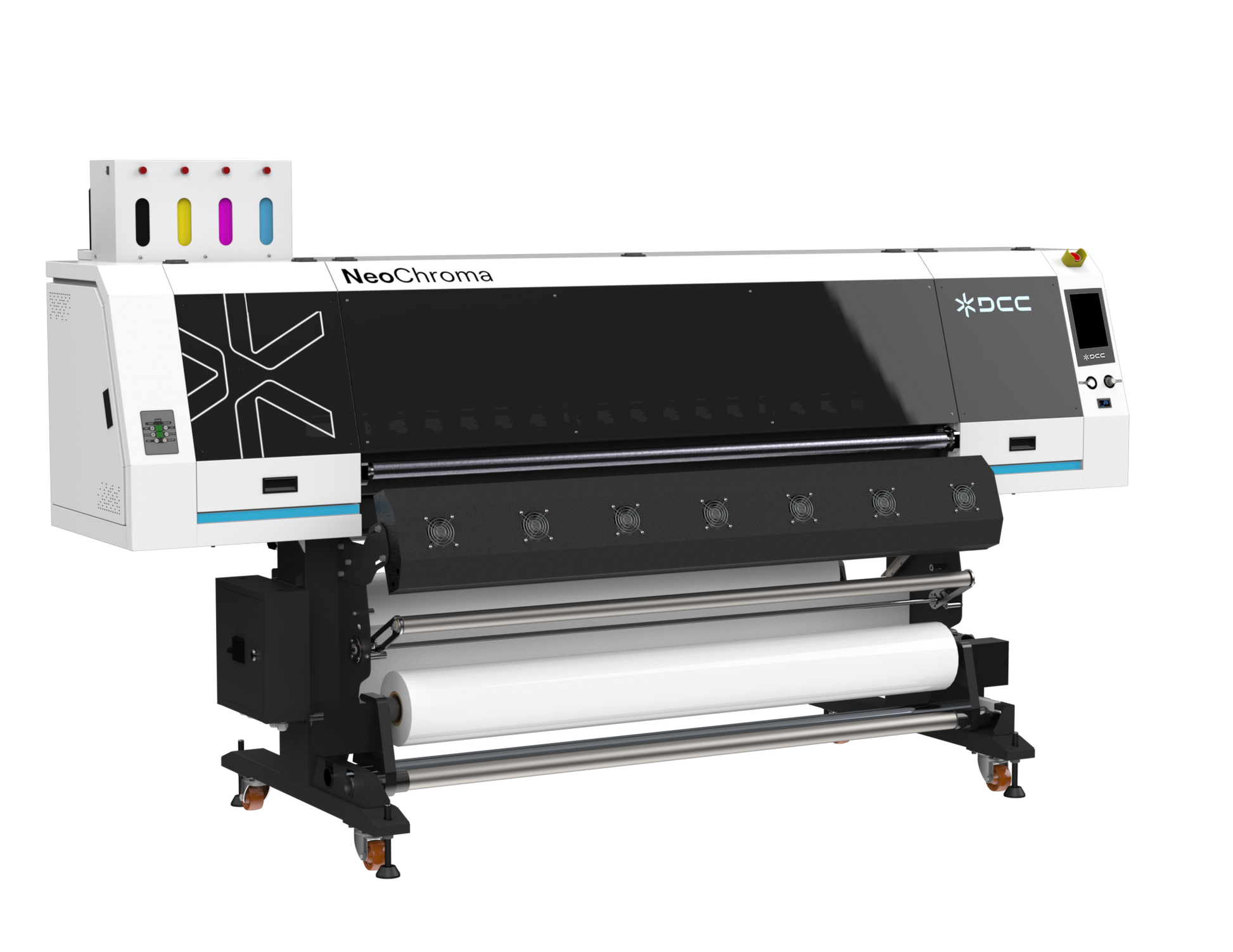

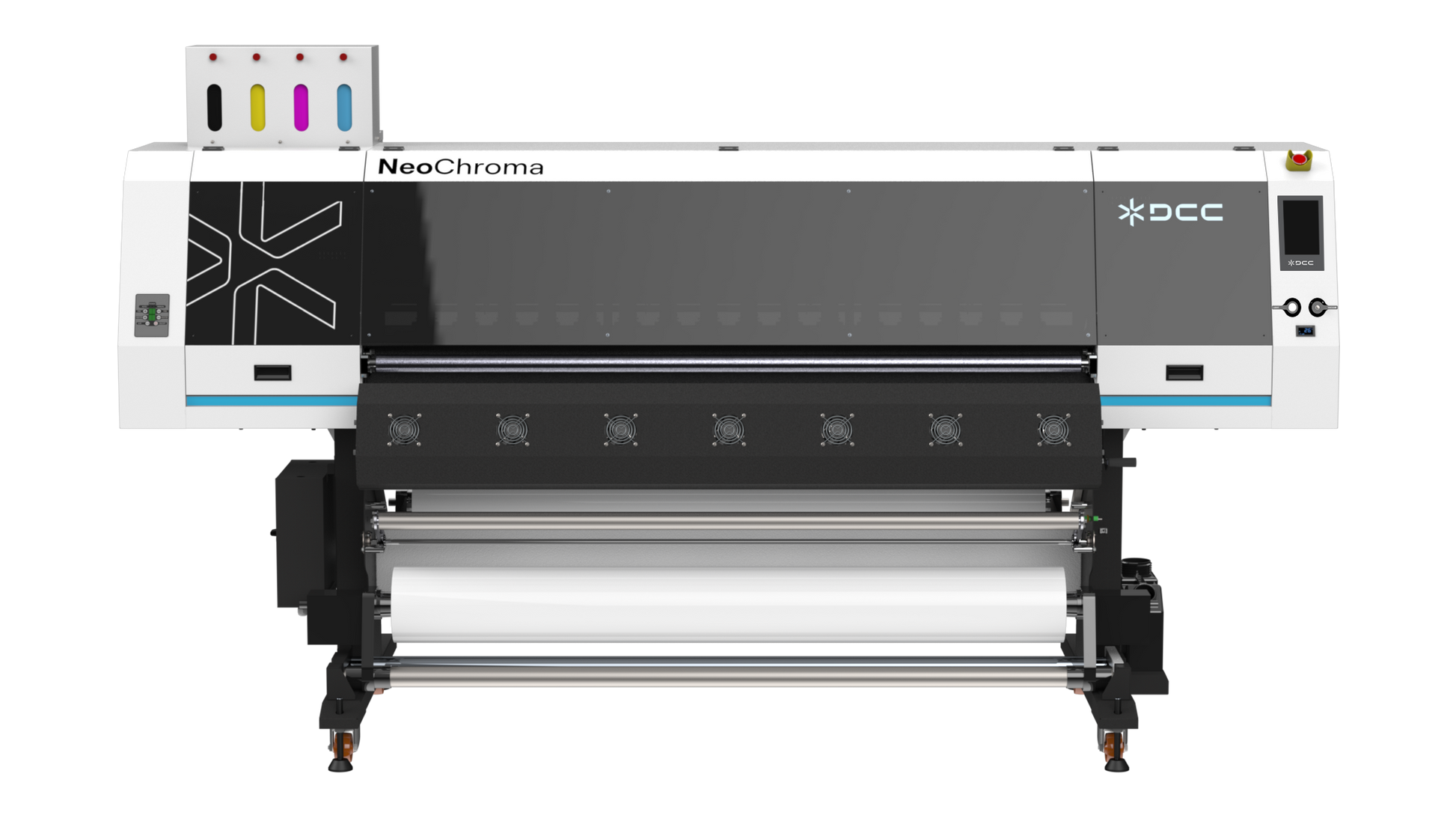

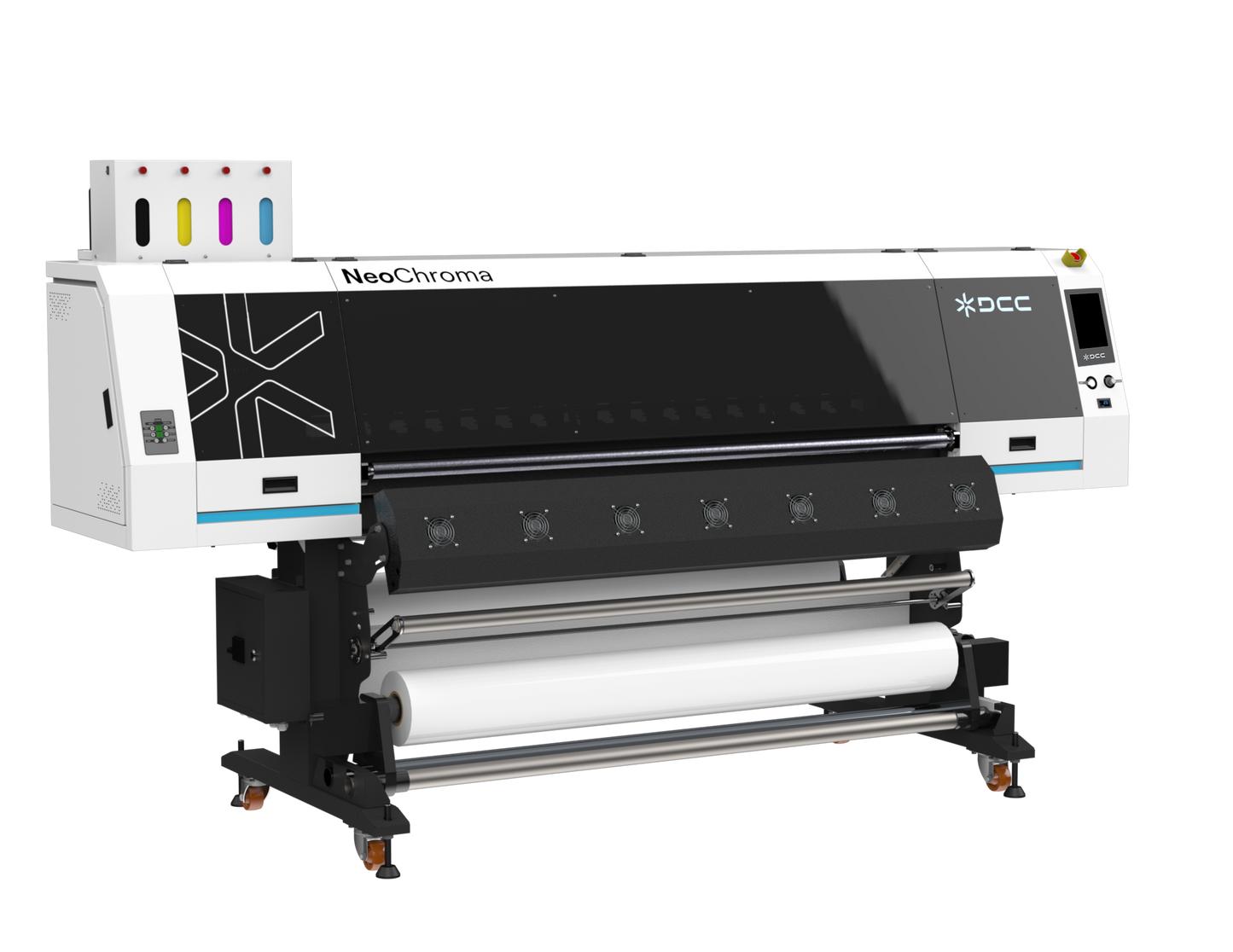

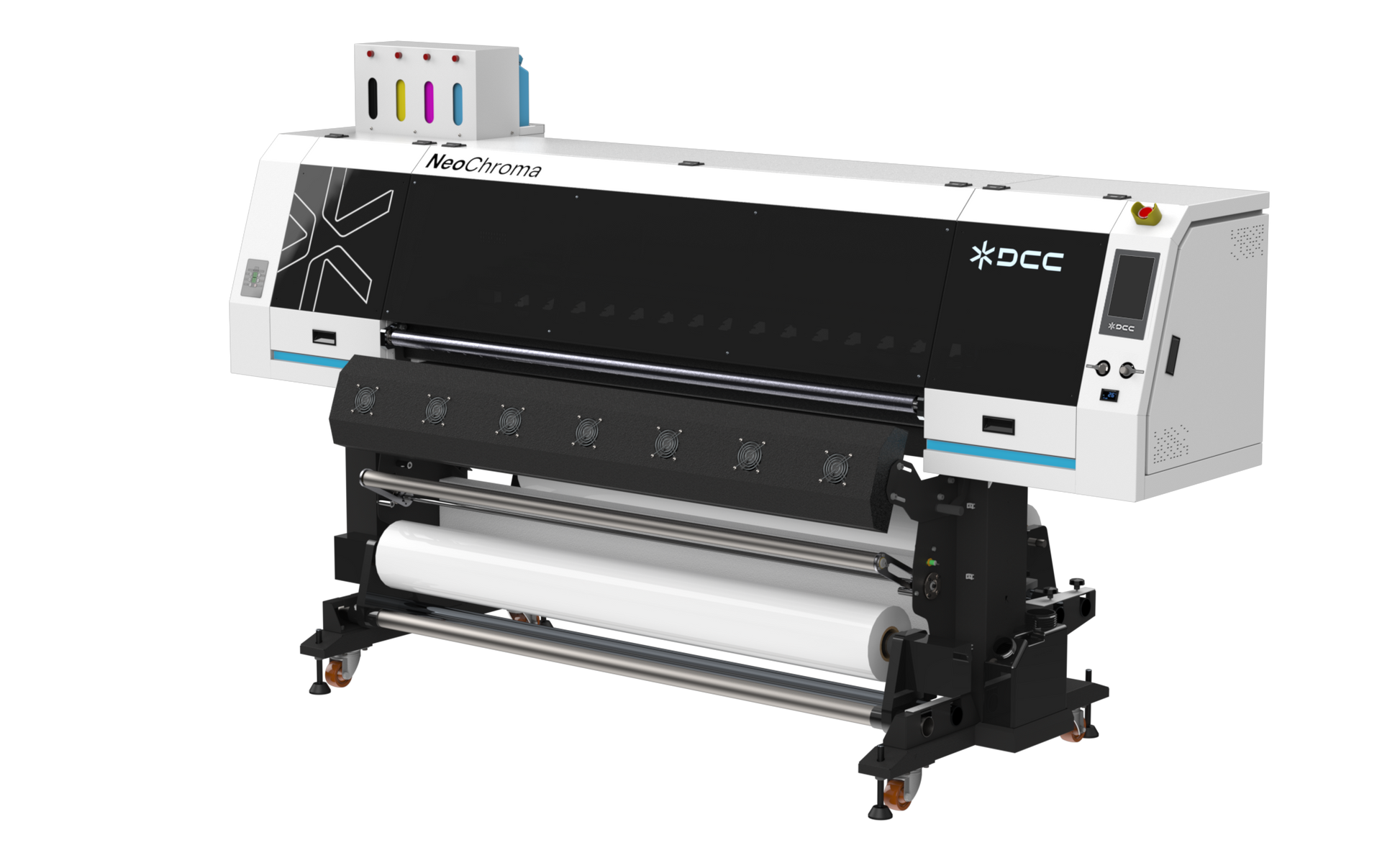

DCC NeoChroma S-44 Series Dye Sublimation Printer

The DCC NeoChroma S-44 Series are 64-inch dye-sublimation transfer printers designed for growing apparel, sportswear, home décor, and soft-signage businesses.

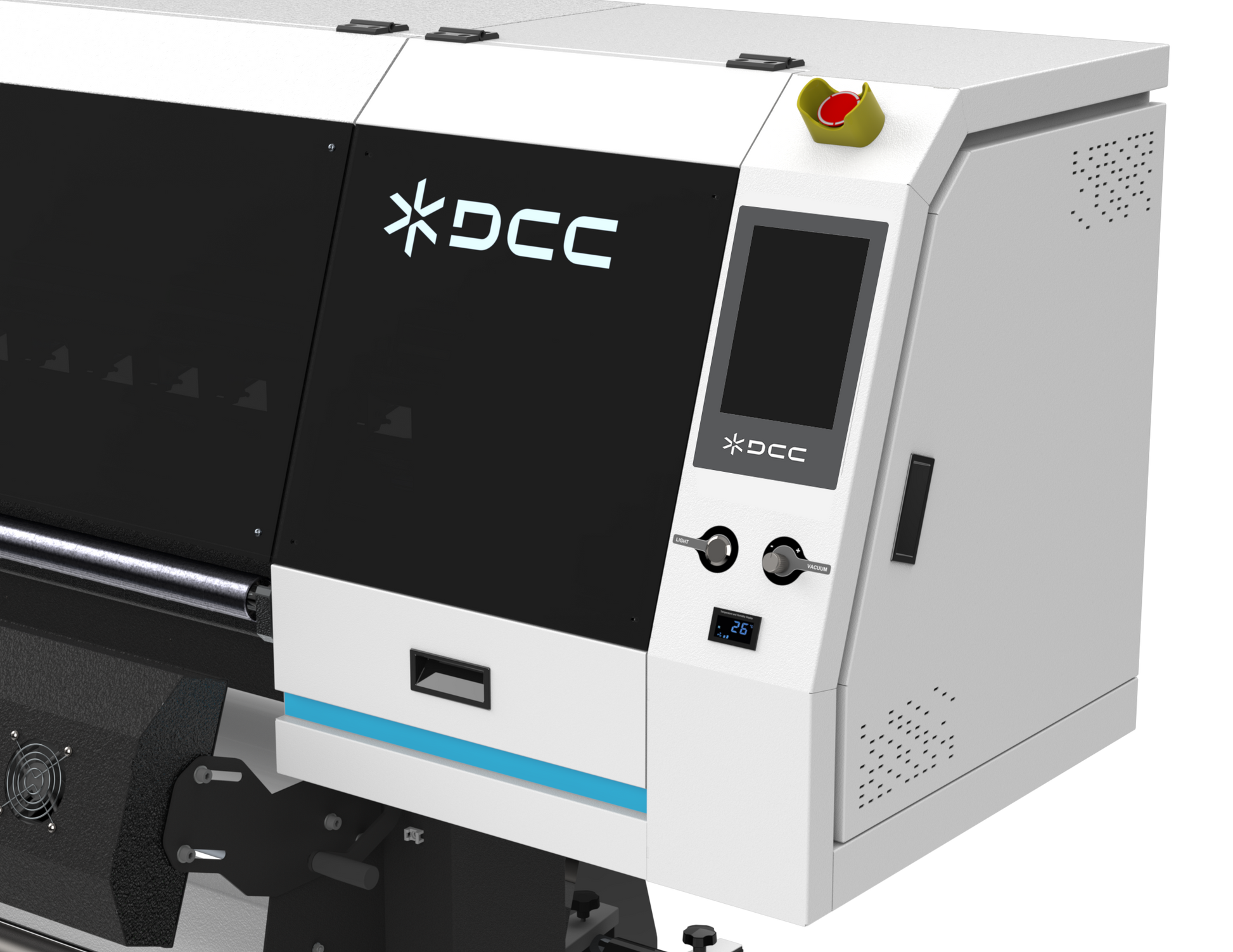

Powered by Epson's I3200-A1 printhead, the NeoChroma S-44 delivers detailed output at production speeds up to 409 square feet per hour. Its 5-liter CMYK ink tanks, automatic media take-up, intelligent drying system, and easy-to-use touchscreen help simplify daily operation while keeping longer print runs moving.

Four Production Configurations Available

The NeoChroma S-44 Series is available in four configurations, allowing businesses to choose the production speed and printhead setup that best match their order volume.

Each 64-inch model uses Epson I3200-A1 printhead technology and offers the same core ink, media-handling, drying, and automated maintenance features. The primary difference is production capacity. As you move through the series, additional printhead capacity delivers faster printing for higher-volume operations.

NeoChroma S-44100+ Pro

The S-44100+ Pro uses one Epson I3200-A1 print head and is a strong choice for growing businesses that need dependable sublimation production without the output requirements of a larger industrial system.

Production speeds:

• 409 sq. ft./hr at 360 × 1200 dpi, 2-pass
• 275.5 sq. ft./hr at 360 × 1800 dpi, 3-pass
• 204.5 sq. ft./hr at 720 × 1200 dpi, 4-pass

NeoChroma S-44200+ Pro

The S-44200+ Pro uses two Epson I3200-A1 print heads, nearly doubling production capacity for shops managing larger orders and tighter turnaround times.

Production speeds:

• 764.2 sq. ft./hr at 360 × 1200 dpi, 2-pass
• 570.5 sq. ft./hr at 360 × 1800 dpi, 3-pass
• 430.5 sq. ft./hr at 720 × 1200 dpi, 4-pass

NeoChroma S-44300+ Pro

The S-44300+ Pro is designed for higher-volume apparel, sportswear, décor, and soft-signage production. Its expanded print head configuration delivers substantially greater output while maintaining multiple resolution and quality options.

Production speeds:

• 990.3 sq. ft./hr at 360 × 1200 dpi, 2-pass
• 758.8 sq. ft./hr at 360 × 1800 dpi, 3-pass
• 619 sq. ft./hr at 720 × 1200 dpi, 4-pass

NeoChroma S-44350 Pro

The S-44350 Pro is the highest-production configuration in the S-44 Series. It is built for established operations that need maximum throughput for long runs, large orders, and demanding production schedules.

Production speeds:

• 1,238 sq. ft./hr at 360 × 1200 dpi, 2-pass
• 969 sq. ft./hr at 360 × 1800 dpi, 3-pass
• 753.5 sq. ft./hr at 720 × 1200 dpi, 4-pass

Choose the Right NeoChroma for Your Production Needs

The right configuration depends on your daily print volume, typical order size, turnaround requirements, and expected business growth.

The S-44100+ Pro provides an accessible starting point for professional sublimation production, while the S-44200+ Pro adds capacity for growing shops. The S-44300+ Pro and S-44350 Pro are better suited for high-volume operations where faster output and continuous production are critical.

Blue Ridge Screen Products can help you compare all four configurations and select the NeoChroma system that best fits your workflow, production goals, and budget.

*Pricing includes $850 crate fee
