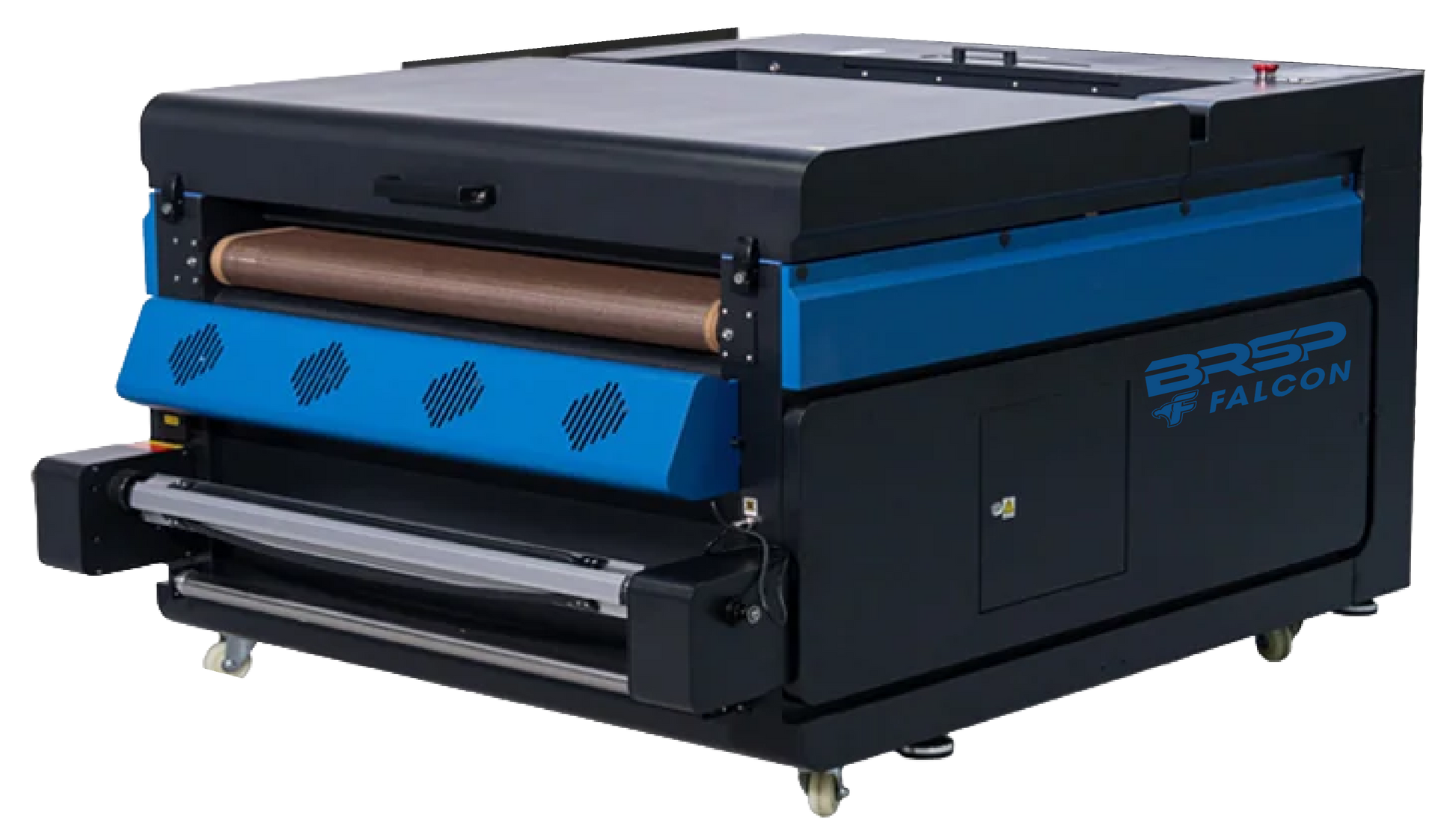

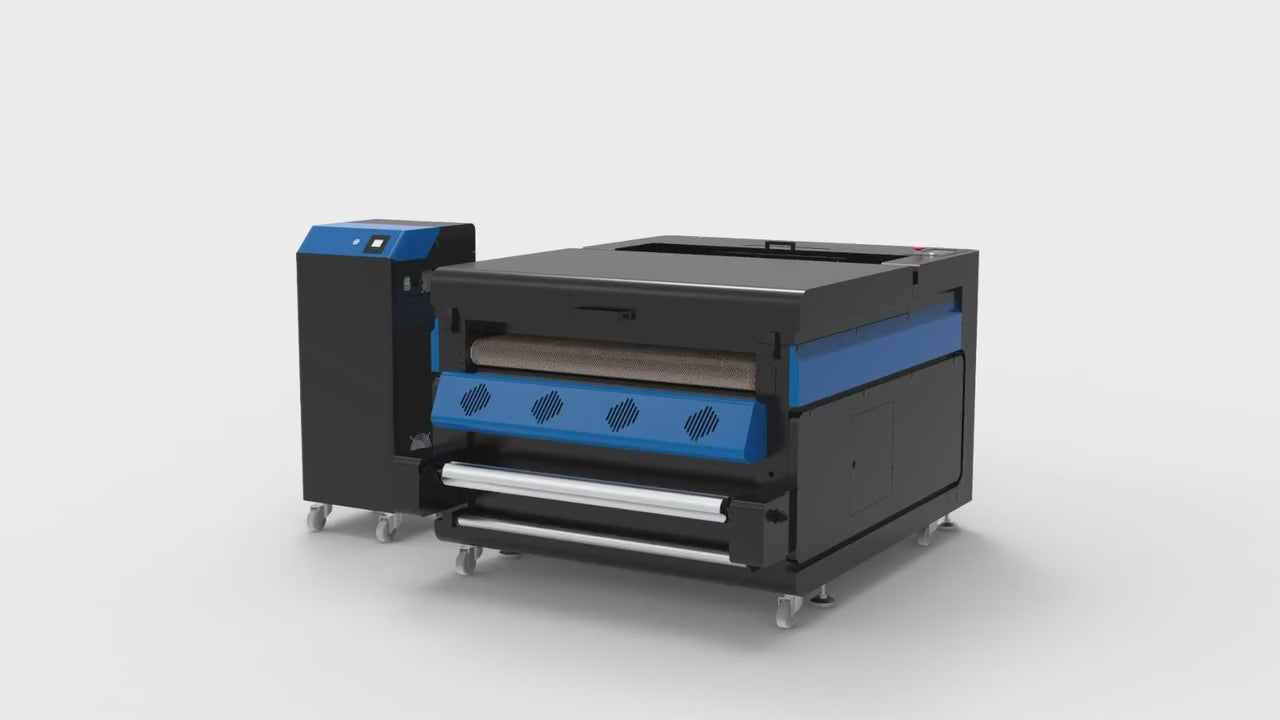

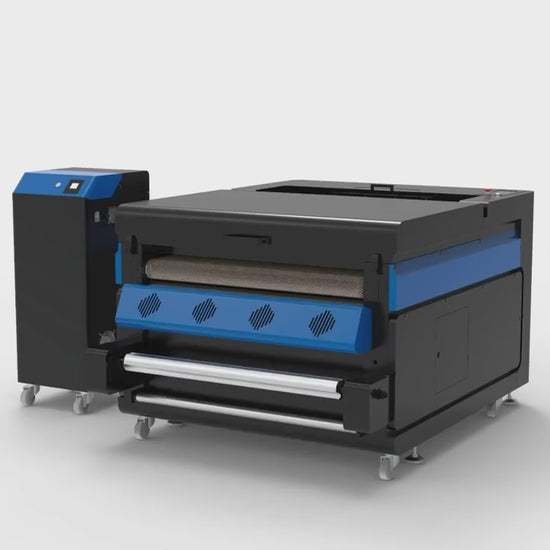

BRSP Falcon 3S 34" Powder Shaker

The BRSP Falcon 3S 34" Powder Shaker is a high-production automated powder application and curing system built for DTF shops that want greater flexibility, cleaner powder management, and less hands-on intervention during production.

What sets the Falcon 3S apart is its integrated powder recovery vacuum system. Instead of requiring operators to continually refill the powder hopper, the Falcon 3S automatically pulls excess powder from the bottom of the machine and returns it to the top hopper for reuse. This closed-loop powder circulation system helps reduce operator involvement, minimize wasted powder, and makes it easier to move between shorter and longer production runs without loading the shaker with more powder than necessary.

The Falcon 3S combines automated powder application, powder removal, curing, and media take-up into one streamlined production system. Dual-sided heating provides consistent curing across the film, while intelligent controls help maintain stable temperatures and smooth film movement throughout production.

Unlike the standard BRSP Falcon Powder Shaker, the Falcon 3S does not include an integrated fume extraction system. A separate external fume extractor is required for proper ventilation and operation.

Key Features

• Integrated Powder Recovery Vacuum: Automatically pulls excess powder from the bottom of the machine back into the hopper for continuous reuse.
• Reduced Powder Handling: Helps eliminate the need to keep a large volume of powder loaded in the machine, providing more flexibility for different production run sizes.
• 3 Color Status Light & Alarm System: Gives you LED Light indicator for status modes: Normal, Cover Open/Low Powder, and Film Jam Warning
• High-Frequency Powder Removal: Removes excess powder before curing for cleaner transfers and improved finished results.
• Dual-Sided Heating: Heating elements above and below the film promote even, efficient powder curing.
• Intelligent Heating Control: Maintains consistent curing temperatures while helping prevent film overheating.
• PLC Touchscreen Control: Provides centralized control over the shaker's production settings and functions.
• Suction Roller System: Helps maintain smooth, stable film movement through the curing process.
• Automatic Take-Up System: Uses controlled tension to produce consistent rolls while reducing operator involvement.
• Efficient Powder Recycling: Recovers unused adhesive powder for reuse, reducing material waste.
• Designed for up to 34" DTF Production: Compatible with film up to 34 inches wide for high-volume DTF workflows.

Important Ventilation Requirement

The Falcon 3S does not have a built-in fume extractor or smoke purification system. An appropriately sized external fume extraction system must be purchased and installed separately.

Specifications

• Maximum Film Width: 34"
• Preheat Temperature: 0–100°C (32–212°F)
• Heater Temperature: 0–150°C (32–302°F)
• Power: Single-phase, 220V AC, 50/60 Hz, 30A
• Power Consumption: 2.2–5 kWh
• Recommended Operating Temperature: 18–30°C (65–86°F)
• Recommended Humidity: 30–70% RH

The BRSP Falcon 3S 34" Powder Shaker is an excellent choice for DTF businesses looking to automate powder application and curing while reducing powder handling and improving workflow efficiency. Its automatic powder recovery system makes it especially well suited for shops running a variety of job sizes throughout the day.
