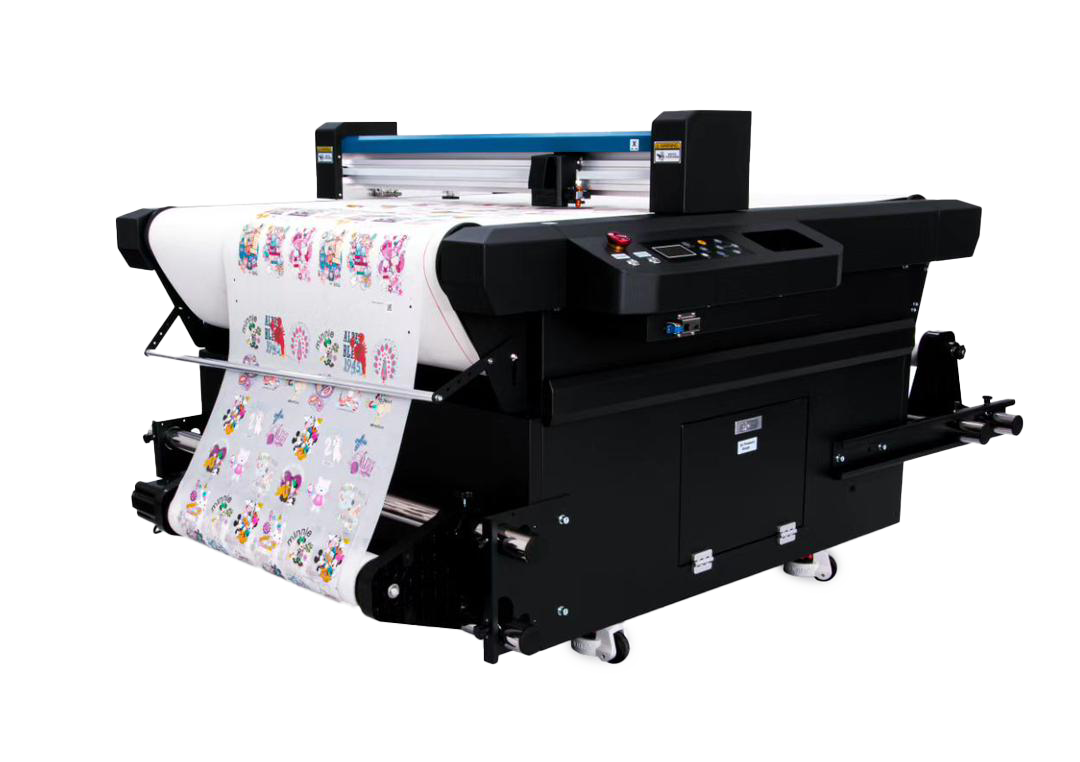

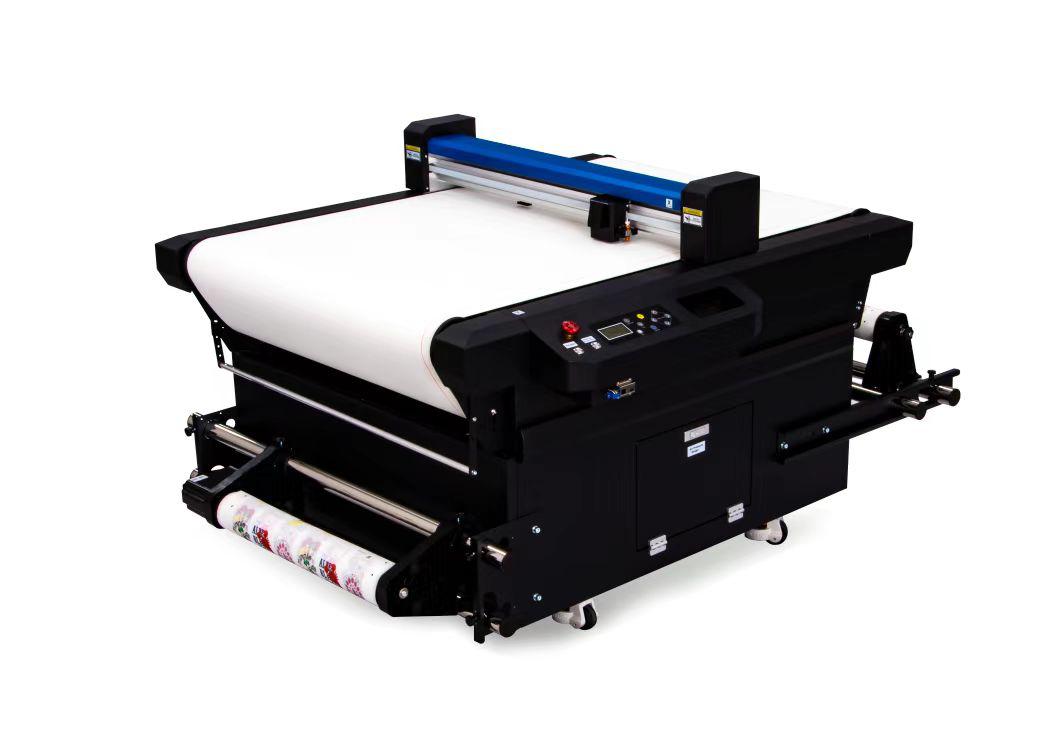

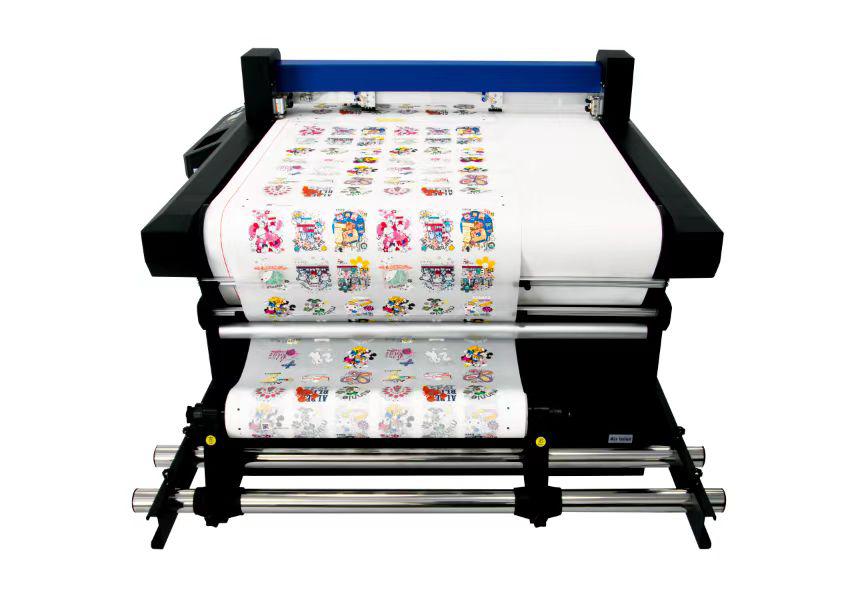

BRSP Falcon 7090 32" Flatbed Cutter

BRSP Falcon 7090 32" Flatbed Cutter

$21,995.00
$21,995.00
Sale Sold out
Shipping calculated at checkout.

The BRSP Falcon 7090 32" Flatbed Cutter is specifically created for the DTF Printing industry and works with all film up to 32" wide.

The BRSP Falcon 7090 cutter is designed to optimize production and reduce costs associated with cutting both gang sheets and individual images.

FEATURES:

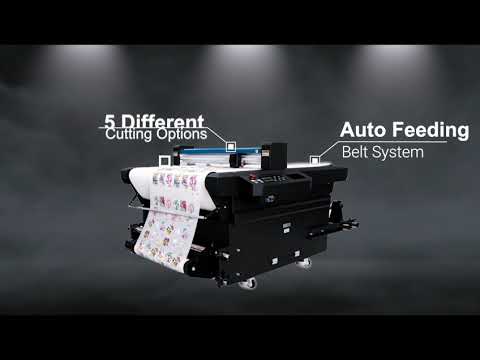

  • Auto Feeding System
    • Conveyor is applied for long seamless cutting operation.
      The coordination of our program, auto feeding system and CCD camera accom­plishes fast and accurate nesting / con­tour cutting.
  • Segmented Area Cutting
    • Additional registration marks are availa­ble for more precise axis alignment. Contour cutting is performed sequential­ly in each segmented area, which impro­ves accuracy and tracking for heavier media or media that has been laminated.
  • Blade-tip Compensation with Chip
    • We accomplish blade-tip compensation utilizing integrated chips instead of software, the digital cutter works with constant high preci­sion no matter what kind of CAD/CAM software is put to use.
  • Grating Ruler
    • The grating ruler measures the distance between blade tip and material surface, and then cutting depth is adjust­ed in every 0.01 mm. The Grating Ruler is the key for consistent cutting depth.
  • Advanced Tool Carriage
    • The tool carriage uses a voice coil motor which is fast, agile and does not overheat after a long, non-stop opera­tion.
  • Servo Motors
    • Intelligent servos bring out smooth accel­eration, a lot of torque, precise cutting opera­tion, excellent durability and high pro­duction.  Max. Speed: 24 inch/s.


SPECIFICATIONS:

ITEM  SPECIFICATION
Model  BRSP Falcon Cutter 7090
Working size on X axis  32.3" (non-contour cutting) 31.5"(Contour cutting)
Working size on Y axis  Sheet media: 35.83" Roll media: whole roll
Max. media width applicable  32.678"
Applicable media thickness  ≤1.0mm
Applicable media  Reflective sheeting, PPF, window tint,
PPE, PET, PVC, vinyl stickers, paper
Method to feed media  Conveyor & roll media bracket
Method to fix media  Vacuum table
Max. cutting speed  24" /s
Max. cutting force  600G / 5.8N in 8 steps
Cutting force setup  Adjustable in every 1 G
Cutter blade diameter  Ф2.0mm
Cutter blade angles  30°, 45°, 60°
Dotted lines cutting  Included
Drive  AC servos
Mechanical resolution  0.0125mm
IOS  Win11/10/8/7
Memory buffer  2MB
CAD / CAM software  Windows drive, SignWorkPro,
CADtoPlotpro, Flexi, CADLink, SignMaster
LCD  English/Chinese
File format  HP-GL, PLT
Standard Port USB, RS-232
Registration marks recognition  CCD camera
Power input  AC110-220V, 50-60Hz
Power consumption  2.2kw
Cutter holder  1
QR code scanner  Included
Roll-media bracket  Included
Floor plan W-L-H  4'3" x 5'11" x 3'4.5"
Crate size W-L-H  4' 9.5"x 6'3" x 4'2"
Gross / Net weight  728 lbs/617 lbs
