Anatol

Anatol Volt-M AC

Anatol Volt-M AC

Regular price $73,985.00
Regular price Sale price $73,985.00
Sale Sold out
Shipping calculated at checkout.
Size

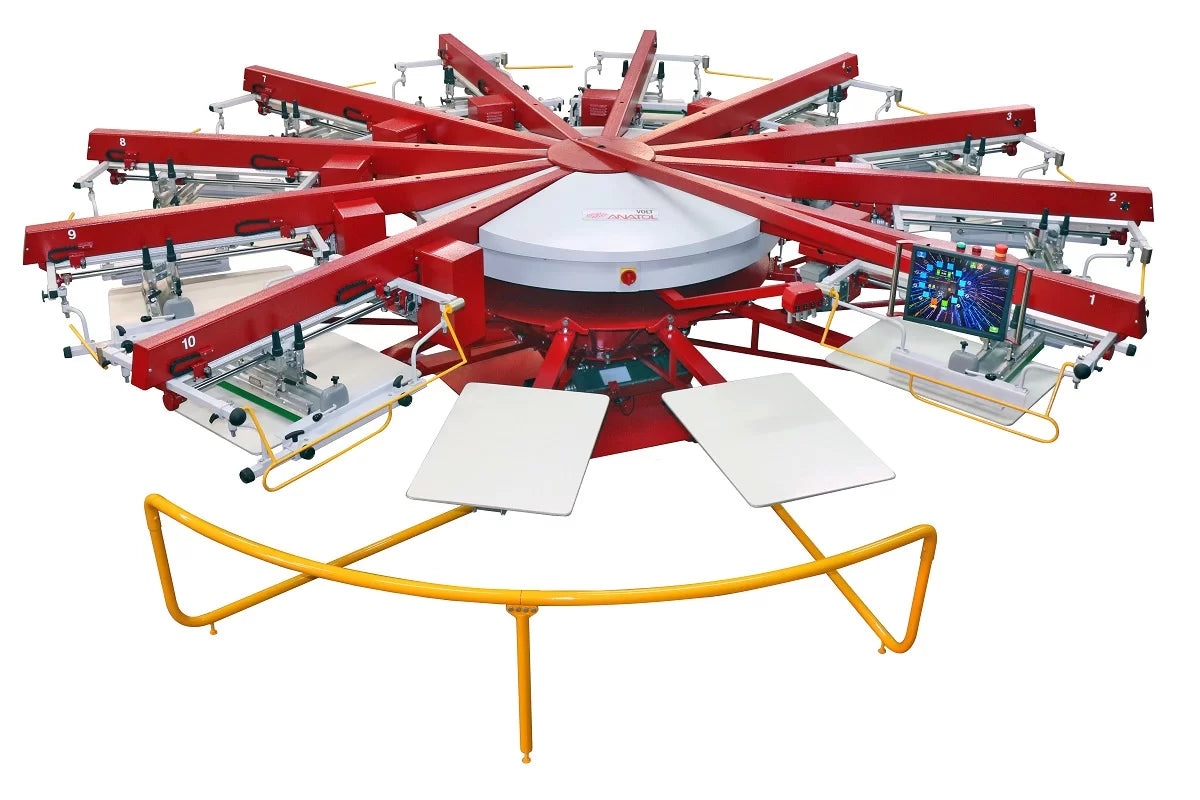

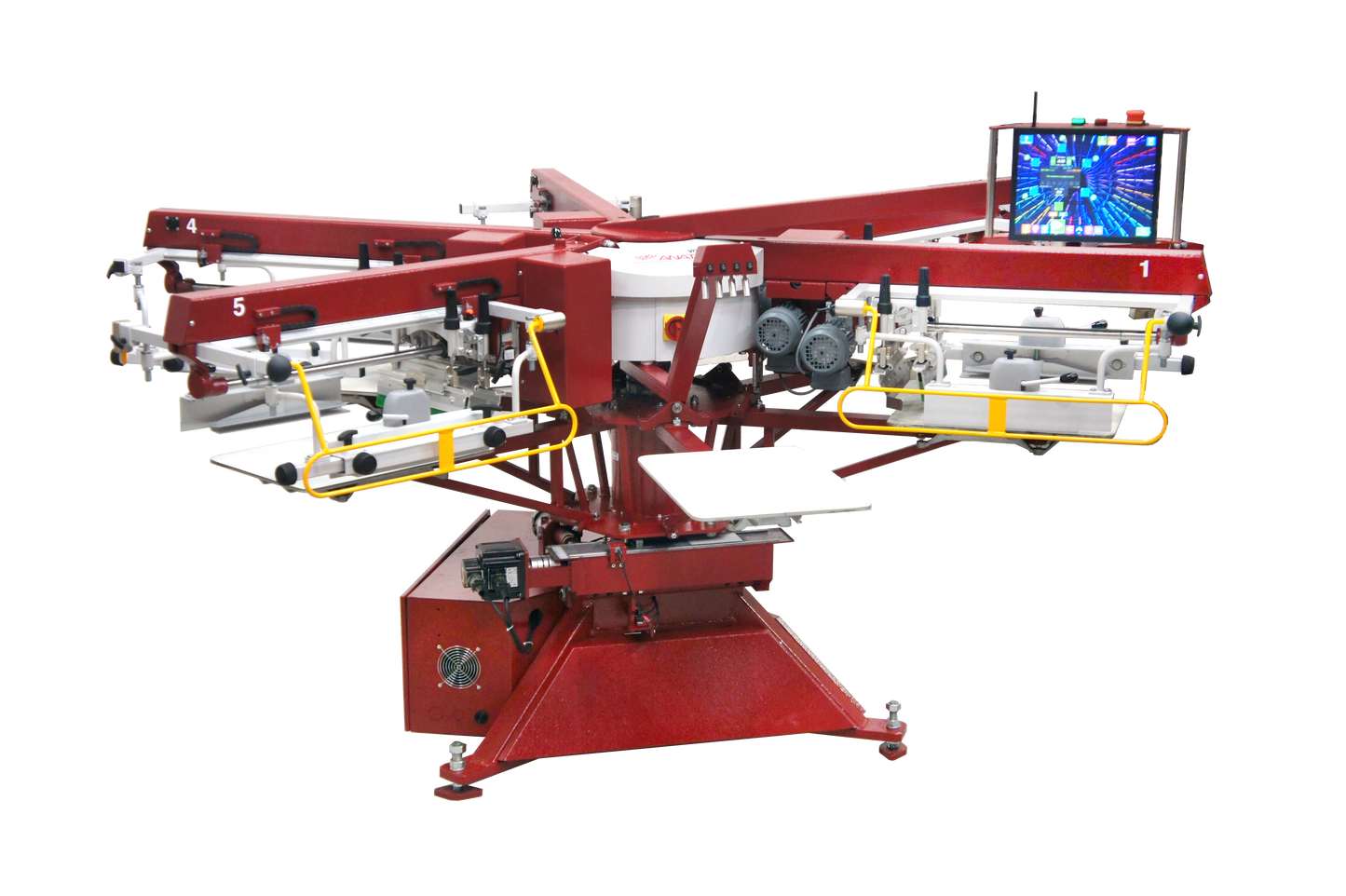

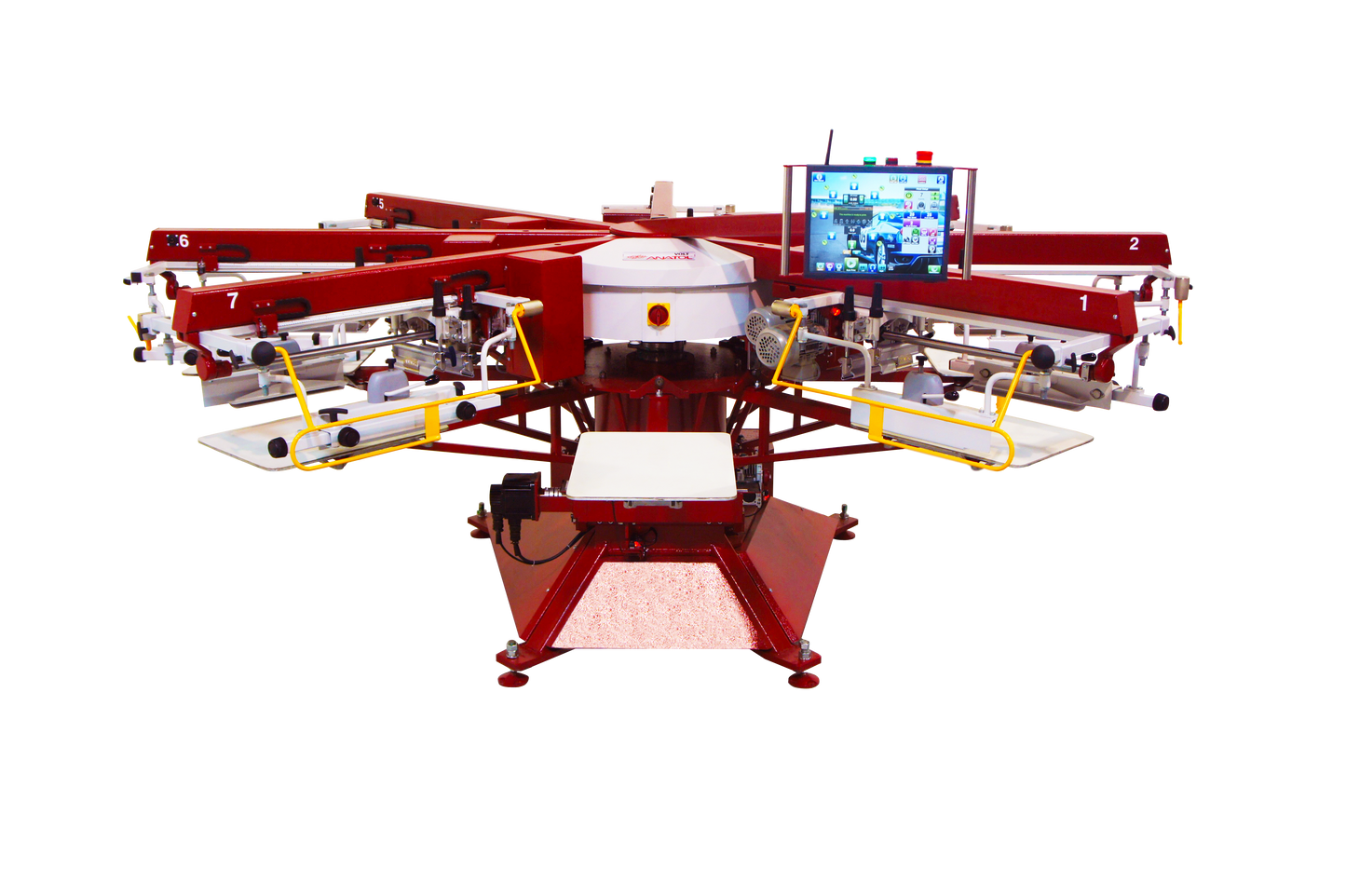

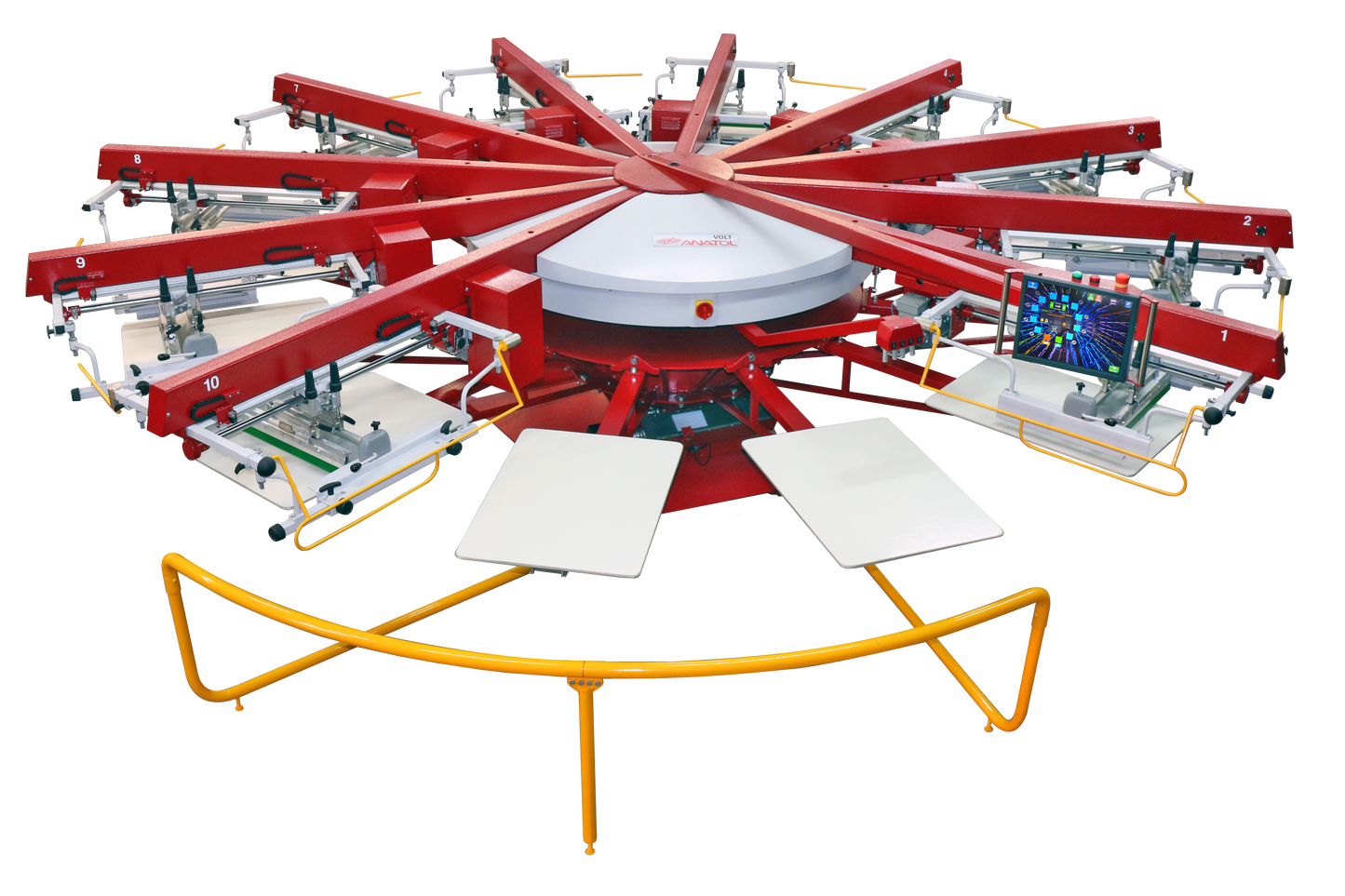

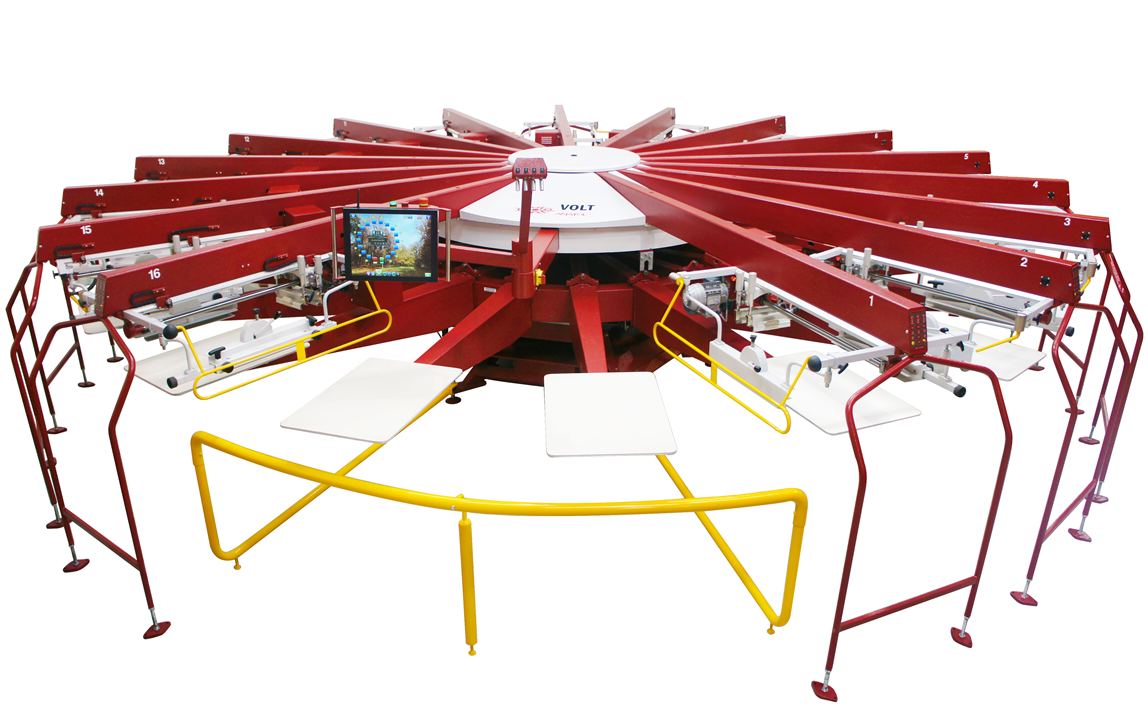

The VOLT by Anatol is the only professional-grade electric automatic screen printing machine in the world. It gives you the speed, power and reliability of a screen printing press without the issues of a compressor or chiller. The VOLT uses reliable servo-driven indexers and servo lift to ensure years of reliable service without downtime caused by leaks in tubing and the build-up of dirt and moisture. Anatol’s VOLT is energy-efficient, capable of cutting your electric bill when compared to pneumatic automatic screen printing machines.
It’s designed for maximum ease of use with a 15” touchscreen interface, one touch digital off-contact controls, tool-less stroke and micro registration adjustments, laser alignment system and Speed Clamps screen locks. Anatol offers VOLTs to benefit shops of all sizes, with four models: VOLT S, VOLT M, VOLT L and VOLT XL, in configurations of 6 stations/4 colors to 20 stations/18 colors.
Image of Print Heads
Print Heads
  • AC electric-driven print heads enhance smoothness, speed and power
  • Front and rear stroke adjustment
  • Single-handed tool-less squeegee/flood bar locking
  • Easily adjustable to side screen clamps accommodate a wide range of screen sizes
Image of Control Interface
Control Interface
  • Aries 2 OS – User-friendly operating system
  • 15’’ touchscreen with intuitive one-touch access to all job settings and machine functions for fast setup
  • Rotating boom arm for easy access to each print head
  • Easy access to operator’s manual
  • Automatic software updates available via Wi-Fi
  • Receive automatic email notifications with production statistics
  • Connect the machine directly to Anatol Service with Presentation Mode
Image of Functions
Functions
  • Quickly save and recall all parameters of stored job: off-contact distance, indexer speed, print head speed, number of strokes, flash cure time and temperature, ink colors, print mode, and (with servo heads only) stroke length
  • Easily copy the same print head settings to all heads
Image of Pallet System
Pallet System
  • Pallet System Slide-style pallets allow for adjustments in print location
  • Tool-free locking
  • Precise four-point pallet leveling system
  • 16’’x22’’ solid aluminum, low profile rubber-coated pallets standard, with a wide variety of custom pallets available separately
Image of Registration
Registration
  • True three-point micro-registration of screen (front-back, left-right, rotational movement)
  • Compatible with Anatol’s ARME pre-registration system, as well as a number of other pre-registration systems available on the market
Image of Skip Shirt & Smash Button
Skip Shirt & Smash Button
  • Save time and supplies by preventing the press from printing on empty pallets with our Skip Shirt function on the control panel
  • Smash button allows for easy skipping of improperly loaded shirts to prevent misprints – more reliable than systems utilizing sensors
Image of Indexing System
Indexing System
  • Servo indexer allows for clockwise, counter clockwise and half indexing – easily switch at the push of a button from job to job
  • Smooth and quiet indexing at high speeds
  • Ball bearing lead screw design with internal lubrication system
  • Freewheel capability available on most models allows for manual carousel rotation
Image of Heads Up Feature
Heads Up Feature
  • On machines with an odd number of print heads, this allows you to raise the last head on a hinge to create dedicated loading and unloading stations.
  • It’s like getting two machines in one. For instance, a 10 station/9 color machine can become a 10 station/ 8 color machine when you need two operators to load and unload and aren’t using the last head, allowing you to work faster.
Image of Central Off-Contact
Central Off-Contact
  • Digitally-controlled central off-contact with 38 settings up to 2/5’’, adjustable right from the machine’s touchscreen
Image of Safety System
Safety System
  • Safety bars, located between each print head and on each side of the load and unload stations, ensure safety during press set-up and operation
Image of Laser Alignment System
Laser Alignment System
  • Laser alignment system for quick and easy apparel alignment
  • Four independently-adjustable straight red lasers
Image of Options
Options
  • Quartz flash cure units
  • Foot pedal to control indexing
  • Quick-release pallet system
  • Variety of specialty and custom pallets available
  • Special sizing available for doorways as small as 28’’
  • Servo print heads allow you to control print stroke length and squeegee pressure digitally
  • Individual print head controls-membrane panel or touchscreen



Price does not include shipping/freight fees.   All freight costs will be invoiced separately at carrier rates and are due prior to shipping.
