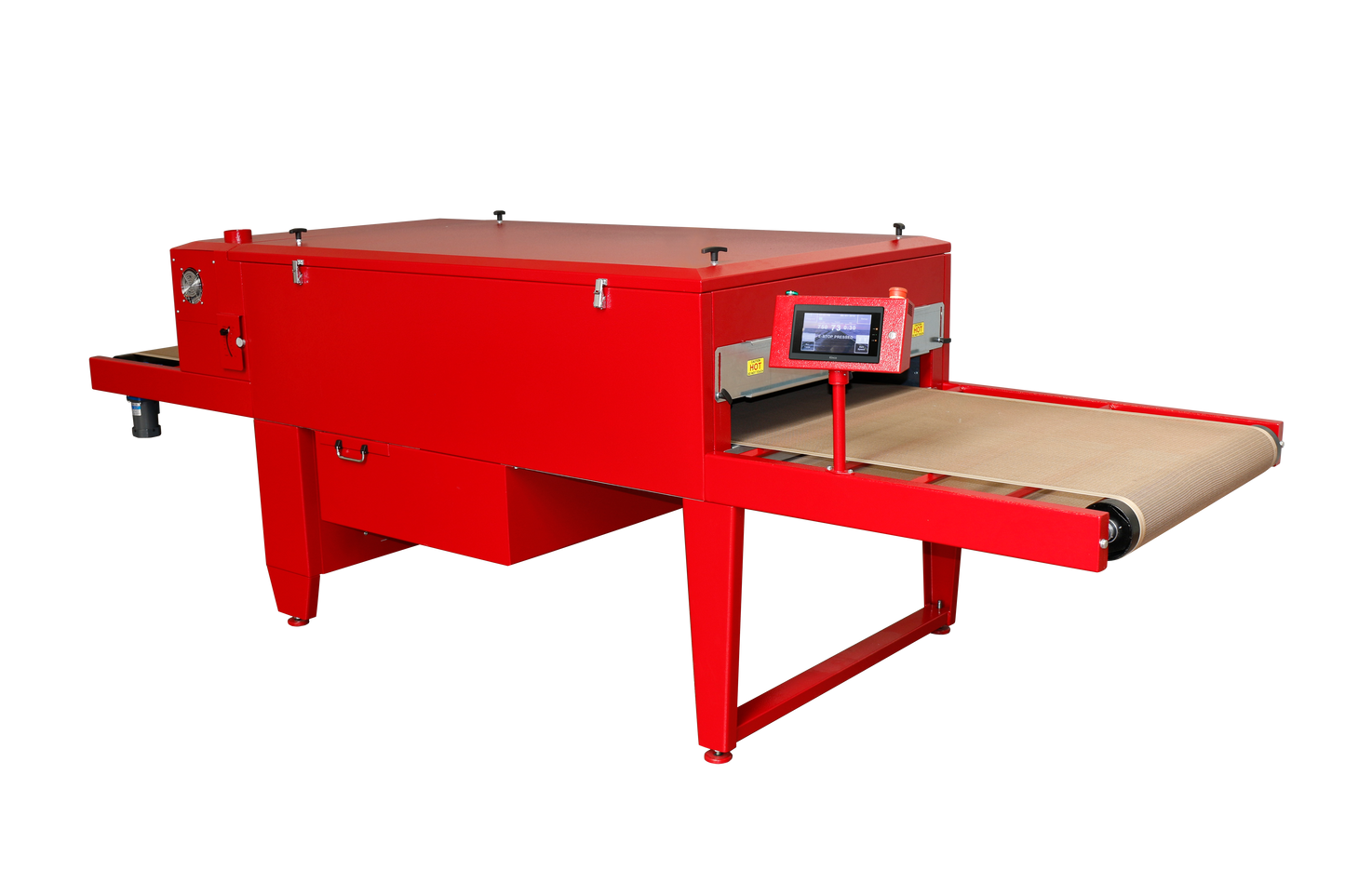

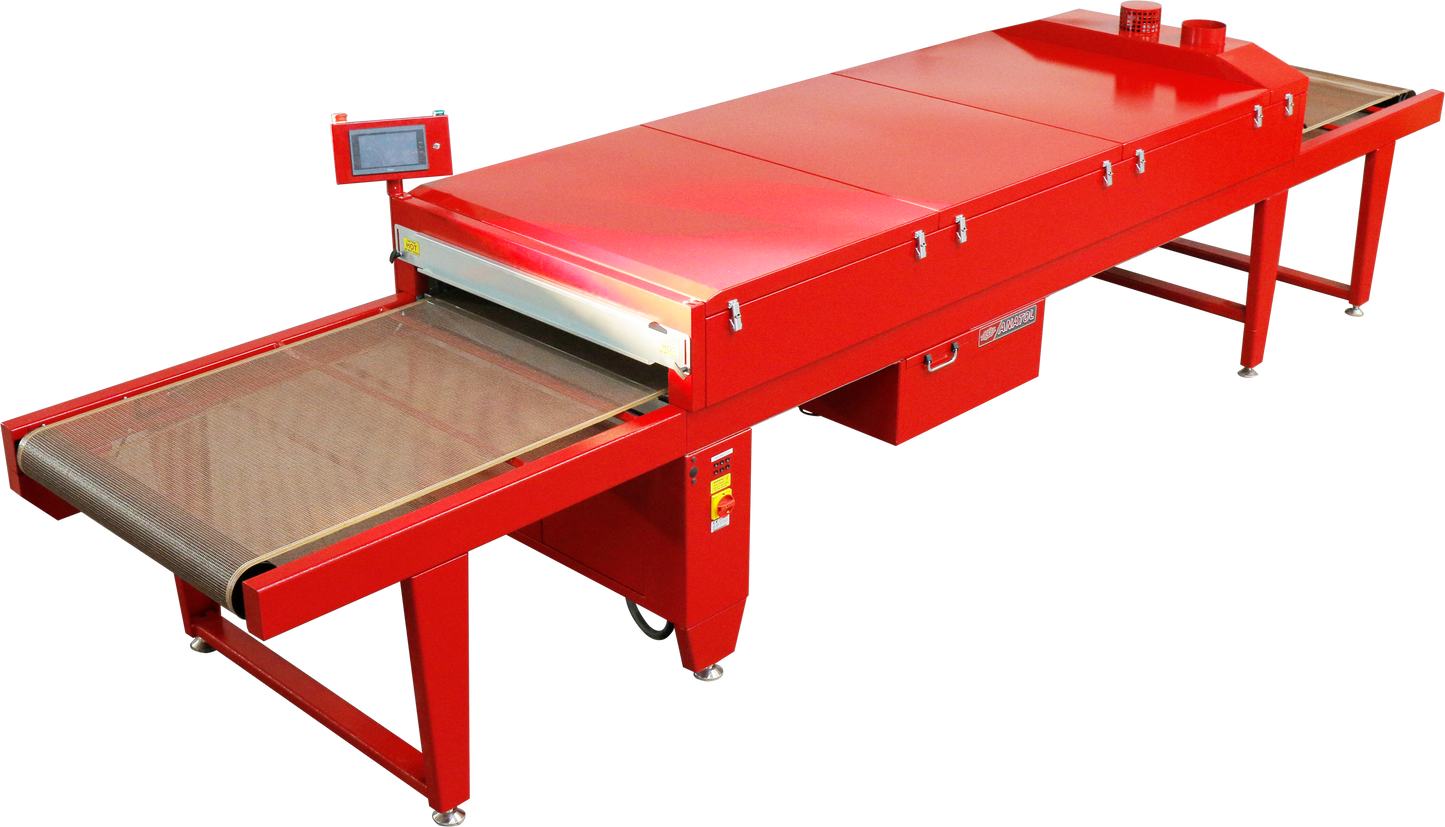

Anatol Ultra Forced Air Electric Conveyor Dryer
Anatol Ultra Forced Air Electric Conveyor Dryer
Regular price
$16,500.00
Regular price
Sale price
$16,500.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Anatol’s Ultra forced air electric conveyor dryer is perfect for curing water-based and plastisol inks quickly and efficiently when gas is not an option.
Available in five different configurations: Models available from 36” belt width/6’ heat chamber up to 60” belt width/10’ heat chamber.
Unprecedented Control
- Intuitive touchscreen controls give you quick and easy access to all dryer settings
- Chart dryer temperature and energy consumption in real time
- Save and recall parameters for fast setups
Cure All Ink Types Efficiently
- Air circulation cures water-based inks quickly and thoroughly
- Adjust belt speed, to any ink manufacturer’s recommended cure time

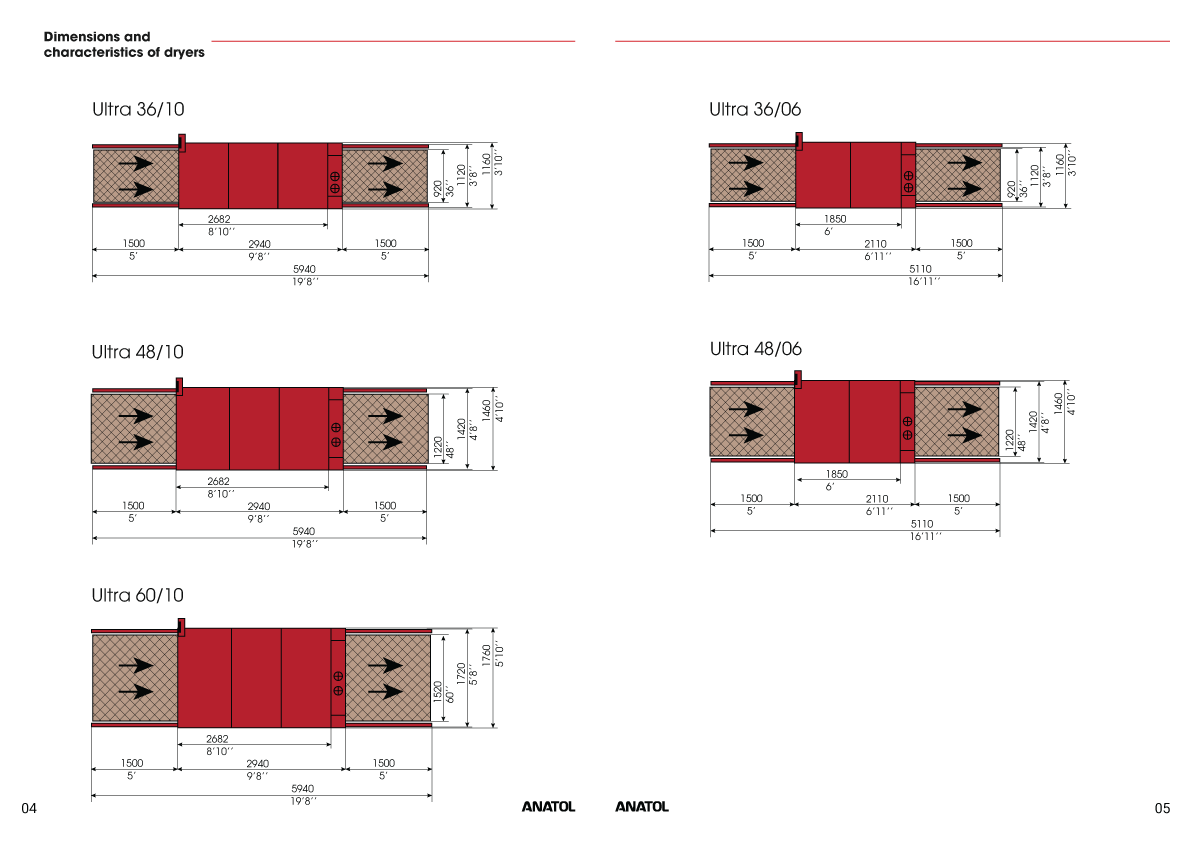

Models available from 36’’ belt width/6’ heat chamber up to 60’’ belt width/10’ heat chamber
Standard features
Control Panel
- 7” touchscreen control panel
- Temperature control with accuracy of +/- 1°F
- Set desired cure time and the dryer will automatically determine the proper belt speed
- Save and recall up to 16 jobs for fast setups
- Work Schedule mode allows you to program automatic startup and cool down based on the day of the week
- View temperature and energy consumption plots in real time
Heating System
- 5” blower exchanges air in the chamber over 12 times per minute to cure water-based inks quickly and efficiently
- Long-lasting ceramic heating elements ensure even distribution of heat throughout the chamber
- Overheating alarm warns you when dryer exceeds the temperature set by the user
- Adjustable infeed/outfeed openings to accommodate a wide variety of substrates
Construction
- Double wall construction with galvanized interior
- Heavy-duty multi-section construction
- Air cooled case keeps heat in, and ensures the dryer stays cool to the touch
- High efficiency thermal insulation keeps heat from migrating into the workplace
Belt
- Teflon-coated fiberglass belt for maximum durability
- Heavy-duty conveyor rollers
- Industrial-grade AC motor

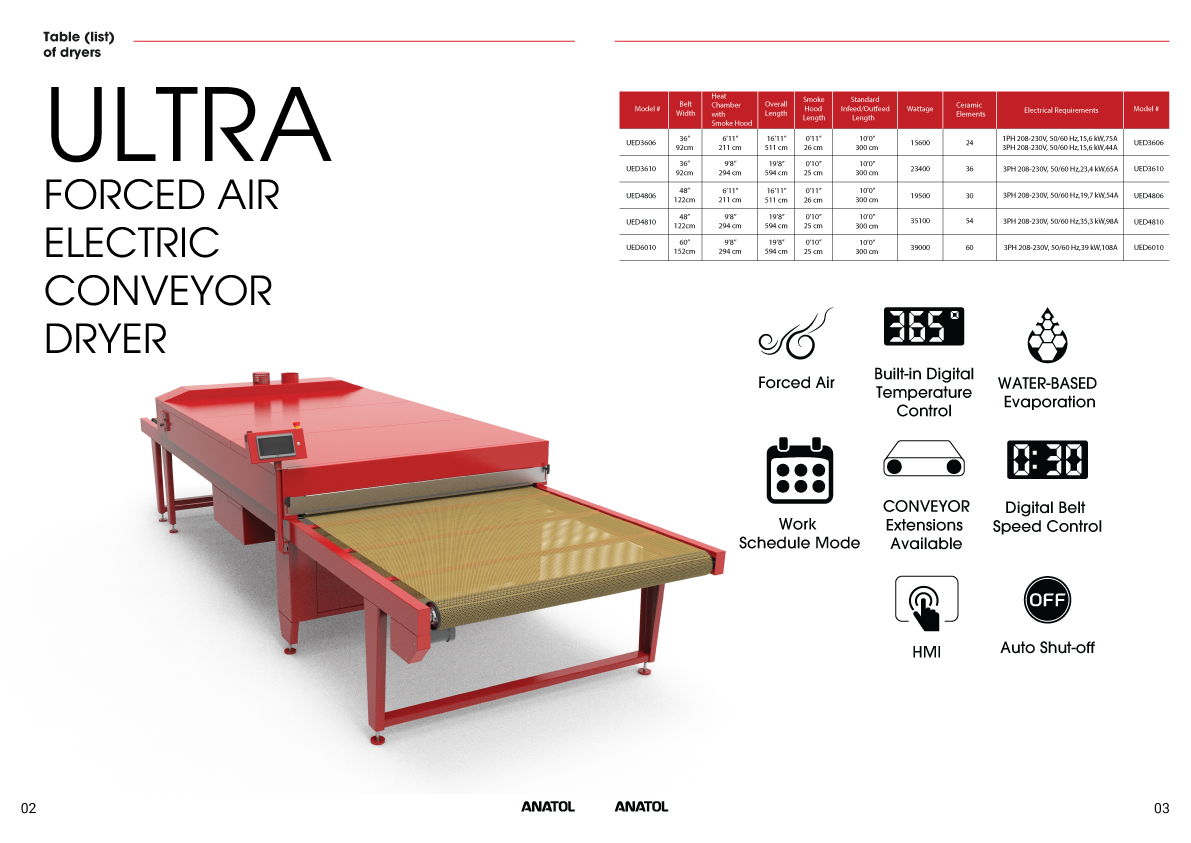

| Model # | Belt Width | Heat Chamber |
Overall Length | Smoke Hood Length |
Standard Infeed/Outfeed Length | Wattage | Electrical Requirements | Ceramic Elements |
|---|---|---|---|---|---|---|---|---|
| UED3606 | 36’’ 92cm |
6’11’’ 211 cm |
16’11’’ 511 cm |
0’11’’ 26 cm |
5’0’’/5’0″ 150cm/150cm |
15600 | 1PH 208-230V, 50/60 Hz,15,6 kW,75A 3PH 208-230V, 50/60 Hz,15,6 kW,44A |
24 |
| UED3610 | 36″ 92cm |
9’8’’ 294 cm |
19’8’’ 594 cm |
0’10’’ 25 cm |
5’0″/5’0″ 150cm/150cm |
23400 | 3PH 208-230V, 50/60 Hz,23,4 kW,65A | 36 |
| UED4806 | 48″ 122cm |
6’11’’ 211 cm |
16’11’’ 511 cm |
0’11’’ 26 cm |
5’0″/5’0″ 150cm/150cm |
19500 | 3PH 208-230V, 50/60 Hz,19,7 kW,54A | 30 |
| UED4810 | 48″ 122cm |
9’8’’ 294 cm |
19’8’’ 594 cm |
0’10’’ 25 cm |
5’0″/5’0″ 150cm/150cm |
31200 | 3PH 208-230V, 50/60 Hz,31,2 kW,87A | 48 |
| UED6010 | 60″ 152cm |
9’8’’ 294 cm |
19’8’’ 594 cm |
0’10’’ 25 cm |
5’0″/5’0″ 150cm/150cm |
35100 | 3PH 208-230V, 50/60 Hz,39 kW,98A | 54 |
-
