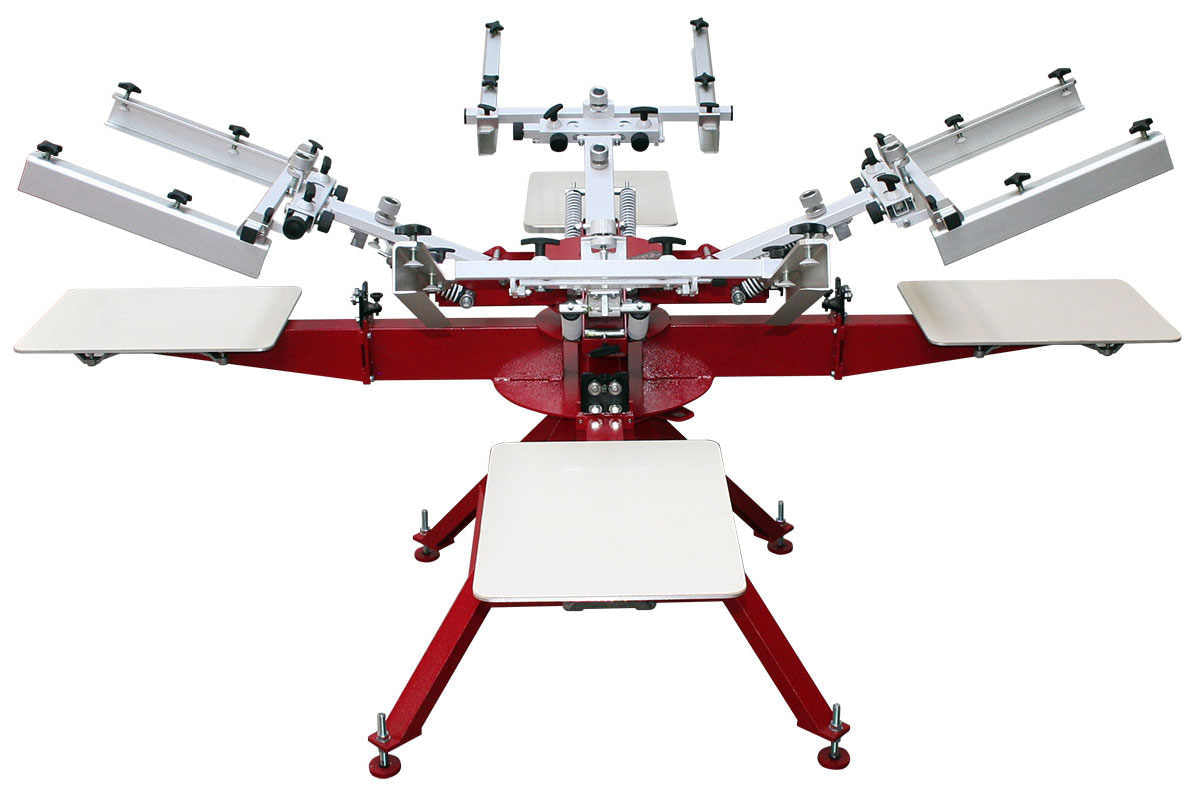

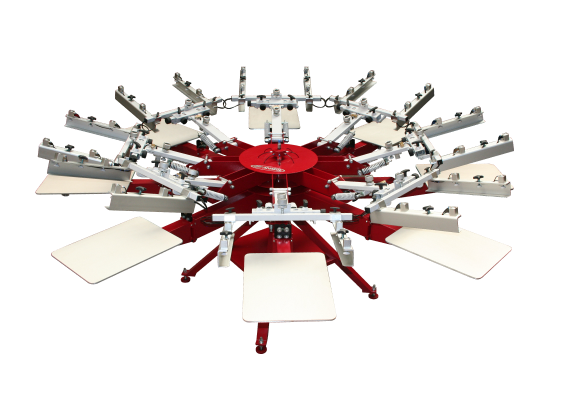

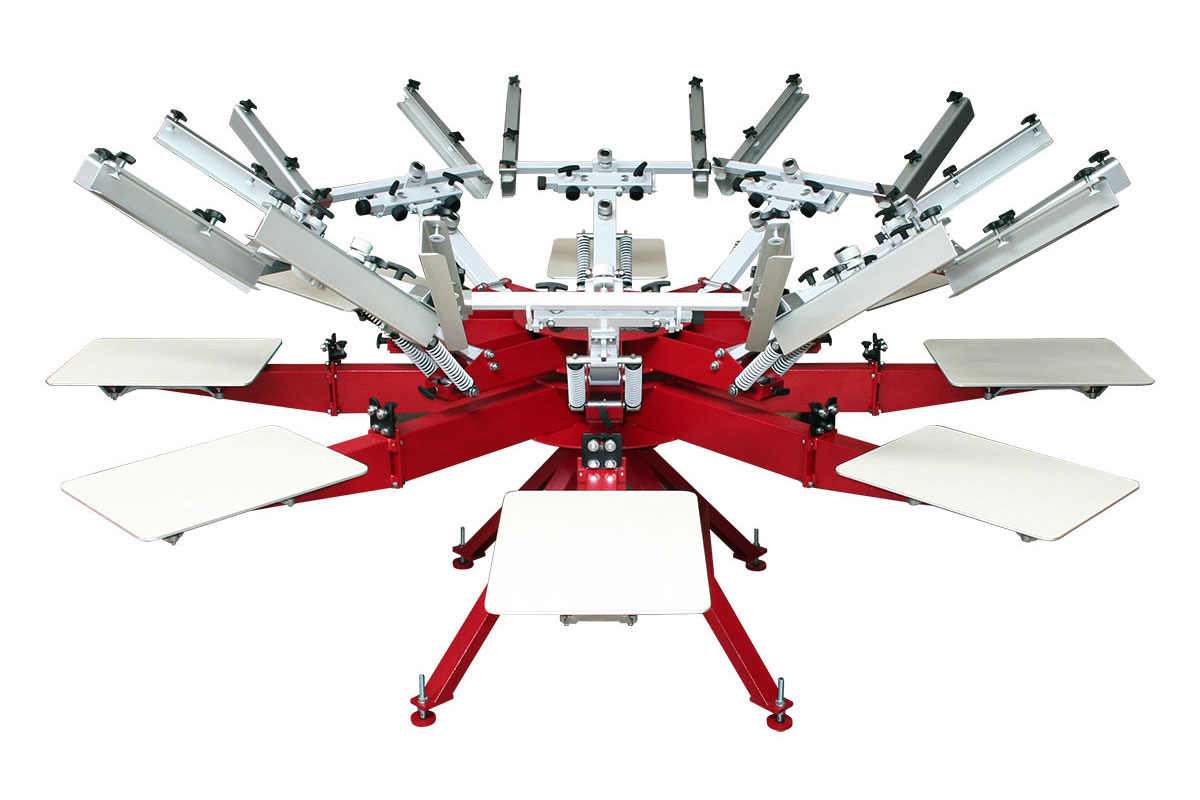

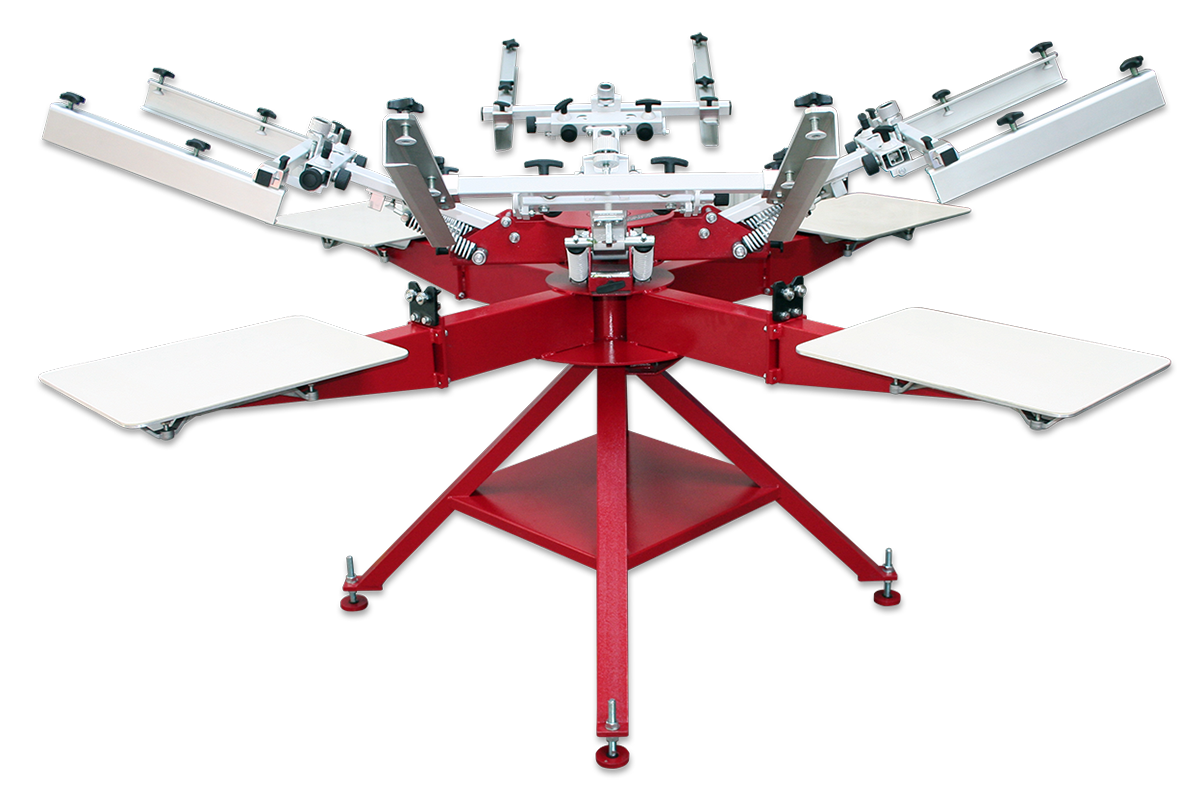

Anatol Thunder Manual Press

The Thunder is an industrial-grade manual screen printing press designed to handle high-demand printing while minimizing wear and tear on the user. The most durable manual screen printing machine on the market, the Thunder is an excellent addition as a sampling or production press. It has the same pallet arm and carousel design as the Anatol automatic screen printing machines. The dual bearing system provides easy movement throughout the day. The Thunder is available with possible configurations of 4 Station/4 Colors, 4 Station/6 Colors, 6 Station/6 Colors, 4 Station/8 Colors, 8 Station/8 Colors, 10 Station/10 Colors and 12 Station/12 Colors.

Price Includes Manufacturers Crate Fee.

Price does not include shipping/freight fees.   All freight costs will be invoiced separately at carrier rates and are due prior to shipping.

Optimal Manual Press Performance
* 3-Point micro-registration
* Rubber coated aluminum pallet
* "All Heads Down" feature
* Side screen clamps
* Mix or match manual press side or back clamps at no additional charge.

The Thunder Manual Press is a Super Heavy Duty Industrial Grade manual press designed for Constant High-demand screen printing. The Thunder is the most durable manual press on the market. The Thunder is the perfect compliment to any facility as a sampling or production machine.

The Thunder has the same pallet arm and carousel design as our larger automatic screen printing machines. The Thunder manual press is easy to set up and simple to use. Both carousels have a top and bottom bearing to give you easy movement through out the day. Those looking to increase production in their shop should consider an automatic entry level screen printing machine.

Standard Features

Printheads

Gauged Three Point Micro-registration.
The movement on our registration is a fine thread lead screw design. The movement is adjustable on three points. Front to Back, Side to Side and Rotational. The gauge is designed to be similar to the way your separations line up with each other. The lock on our micro-registration is independent of the movement. That means when you have your screen registered where you want it, it doesn't move when you lock it.

"All Heads Down" feature.

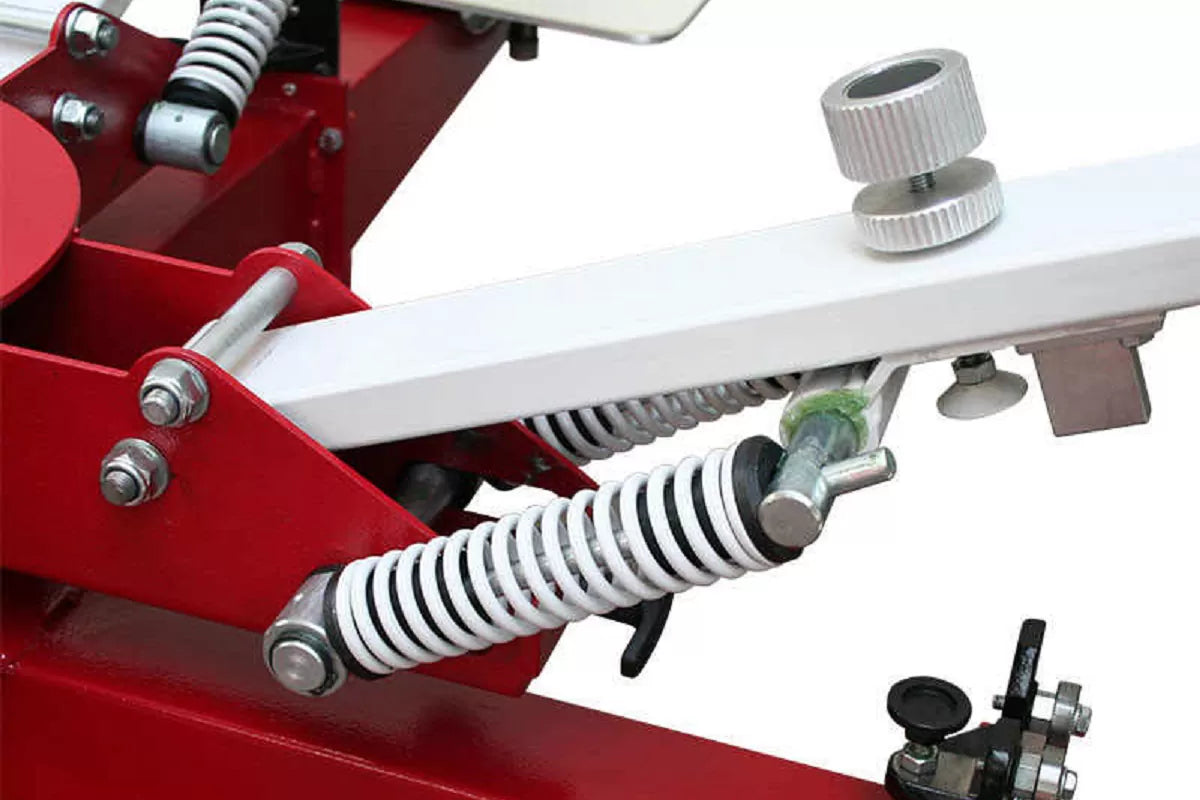

All heads down allows you to print any color from any print head on any pallet. The "All Heads Down" feature is essential when you are using "flash while print" techniques and printing at more than one station at a time. The print heads have a dual adjustable, guided spring tensioning system that provides a smooth lift and lower (of the print head) no matter what size screen you are using. The adjustment is conveniently located for easy use. The guide system doesn't require lubrication.

Side Screen Clamps to provide the maximum in stability.
Side Screen Clamps eliminate your screens from wiggling out of registration during the lift and lower while printing.

Off contact and screen pitch
Adjustments are located on each print head for full control of the screens off contact while staying parallel to the pallets.

Equipment Design and Construction
Double bearing registration locks to ensure the utmost print quality when running multi-color jobs.

Superior Tubular steel
Pallet arms, heavy-duty steel frame and roller bearings to support quick and smooth operation.

100% welded cantilever pallet arm to carousel system provides ultimate pallet arm support, eliminating flexing or twisting of the pallets during printing. It's important that the pallets are unyielding to the screen printing squeegee pressure when printing.

100% tool-less setups and operation

Ergonomically engineered to be user-friendly

Two-year limited warranty

Other
16" x 22" rubber coated aluminum screen printing pallets

Quick release pallet change system

Adjustable side screen clamps

Four-point pallet leveling system

Swivel feet on screen clamps to prevent movement while tightening
