Anatol Solutions Series Electric Conveyor Dryer
Anatol Solutions Series Electric Conveyor Dryer
Couldn't load pickup availability

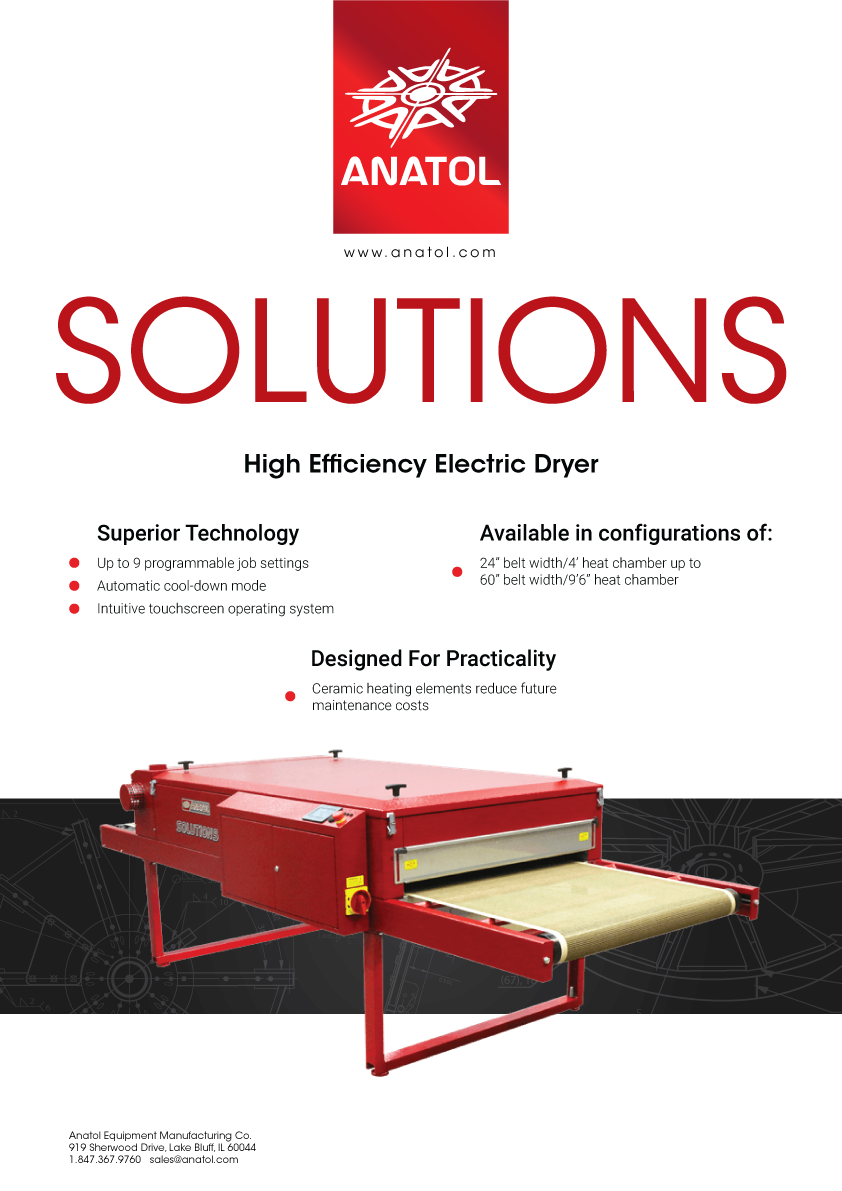

The Energy Efficient and Affordable Dryer Solution.
Available in four basic models in configurations of: 24” belt width/4’ heat – 60” belt width/10’ heat.
Description

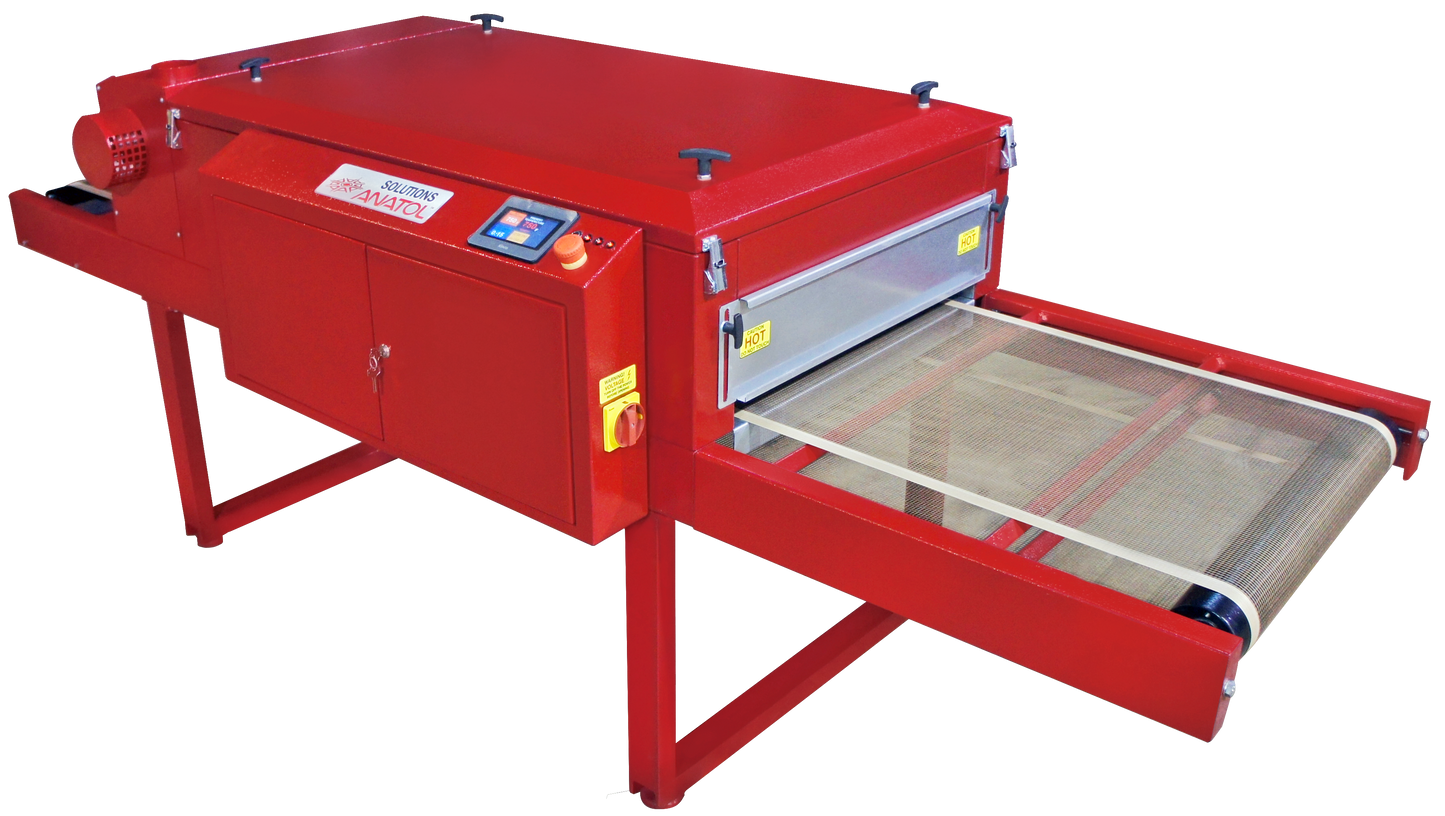

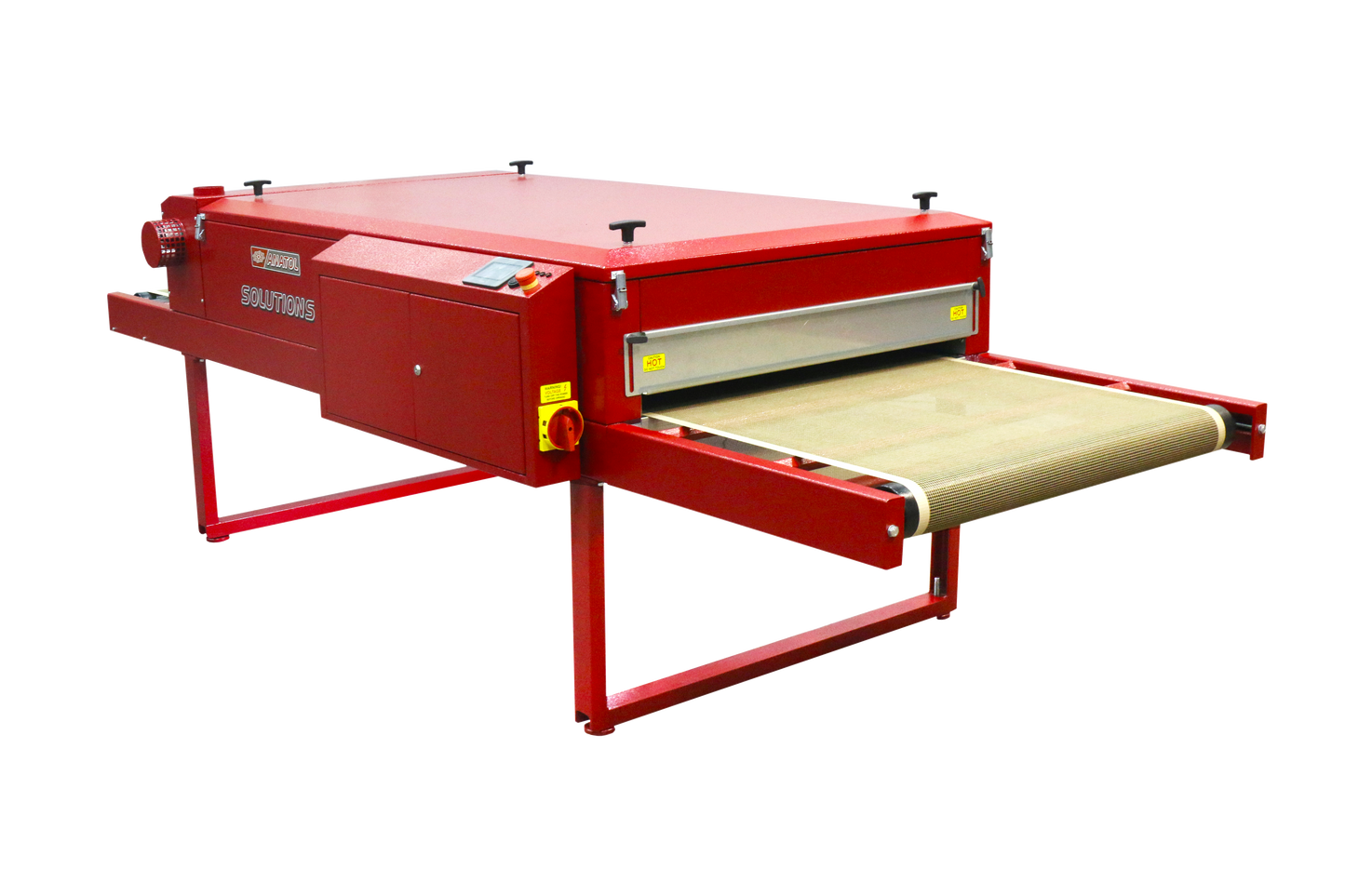

When gas is not an option, Anatol electric screen printing conveyor dryers are the perfect Solution. The Solutions Series dryers are ideal for t-shirt and textile printers looking for an efficient and affordable curing unit. They feature more ceramic heating panels than similar dryers for even heat throughout the chamber. The Solutions dryers feature the same double-wall construction as Anatol’s gas dryers, re-enforced with high-efficiency thermal insulation. Solutions Series electric dryers offer programmable temperature controls with automatic cool-down. Solutions electric dryers are available in six configurations, with four basic models, from 24” belts with 4’ of heat up to 60” belts with 10’ of heat.

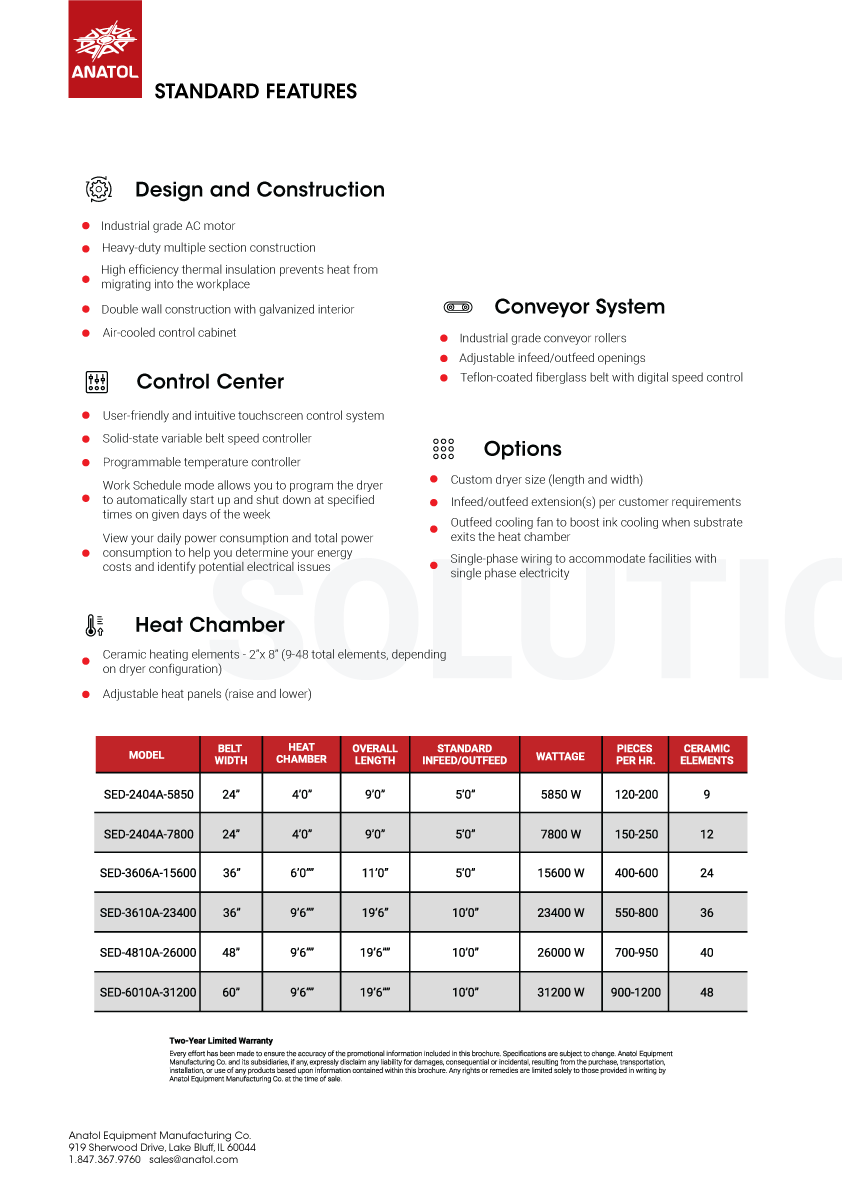

Standard features
Control Panel
- Digital control panel
- Solid-state variable belt speed control, set in ft/min or meters/min
- Programmable temperature controller (accuracy: +/- 1º)
- Automatic controlled start up and cool down mode
- Reversible belt direction
Construction
- Industrial grade AC motor
- Double wall insulation with galvanized interior
- Heavy-duty multi-section construction
- Air-cooled control cabinet
- Stainless steel slide out filters (larger models only)
Heating System
- 12-48 ceramic heating elements
- Adjustable heat panels (raise or lower)
Belt
- Adjustable infeed/outfeed openings
- Teflon-coated fiberglass belt
- Heavy-duty conveyor rollers

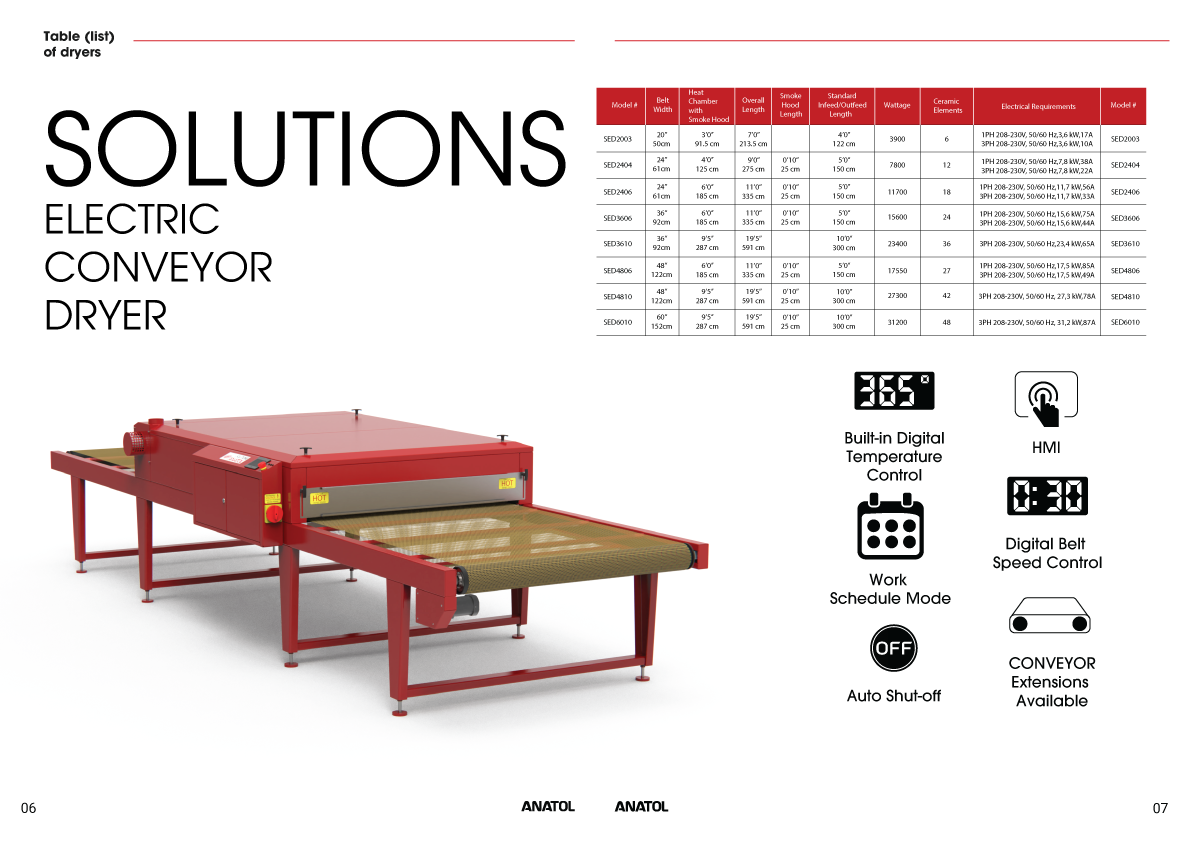

Solutions Specifications
| Model # | Belt Width | Heat Chamber |
Overall Length |
Smoke Hood Length |
Standard Infeed/Outfeed Length |
Wattage | Ceramic Elements |
Electrical Requirements |
|---|---|---|---|---|---|---|---|---|
| SED2003 | 20’’ 50cm |
3’0’’ 91.5 cm |
7’0’’ 213.5 cm |
2’0″/2’0″ 61cm/61cm |
3900 | 6 | 1PH 208-230V, 50/60 Hz,3,6 kW,17A 3PH 208-230V, 50/60 Hz,3,6 kW,10A |
|
| SED2404 | 24’’ 61cm |
4’0’’ 125 cm |
9’0’’ 275 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
5850 | 9 | 1PH 208-230V, 50/60 Hz,5,85 kW,29A 3PH 208-230V, 50/60 Hz,5,85 kW,17A |
| SED2404 | 24’’ 61cm |
4’0’’ 125 cm |
9’0’’ 275 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
7800 | 12 | 1PH 208-230V, 50/60 Hz,7,8 kW,38A 3PH 208-230V, 50/60 Hz,7,8 kW,22A |
| SED2406 | 24’’ 61cm |
6’0’’ 185 cm |
11’0’’ 335 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
11700 | 18 | 1PH 208-230V, 50/60 Hz,11,7 kW,56A 3PH 208-230V, 50/60 Hz,11,7 kW,33A |
| SED3606 | 36’’ 92cm |
6’0’’ 185 cm |
11’0’’ 335 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
15600 | 24 | 1PH 208-230V, 50/60 Hz,15,6 kW,75A 3PH 208-230V, 50/60 Hz,15,6 kW,44A |
| SED3610 | 36’’ 92cm |
9’5’’ 287 cm |
19’5’’ 591 cm |
5’0″/5’0″ 150cm/150cm |
23400 | 36 | 3PH 208-230V, 50/60 Hz,23,4 kW,65A | |
| SED4806 | 48’’ 122cm |
6’0’’ 185 cm |
11’0’’ 335 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
17550 | 27 | 1PH 208-230V, 50/60 Hz,17,5 kW,85A 3PH 208-230V, 50/60 Hz,17,5 kW,49A |
| SED4810 | 48’’ 122cm |
9’5’’ 287 cm |
19’5’’ 591 cm |
0’10’’ 25 cm |
5’0″/5’0″ 150cm/150cm |
27300 | 42 | 3PH 208-230V, 50/60 Hz, 27,3 kW,78A |
| SED6010 | 60’’ 152cm |
9’5’’ 287 cm |
19’5’’ 591 cm |
0’10’’ 25 cm |
5’0″/5’0″ 150cm/150cm |
31200 | 48 | 3PH 208-230V, 50/60 Hz, 31,2 kW,87A |
-
