Anatol Solutions mini Electric Conveyor Dryer
Anatol Solutions mini Electric Conveyor Dryer
Couldn't load pickup availability

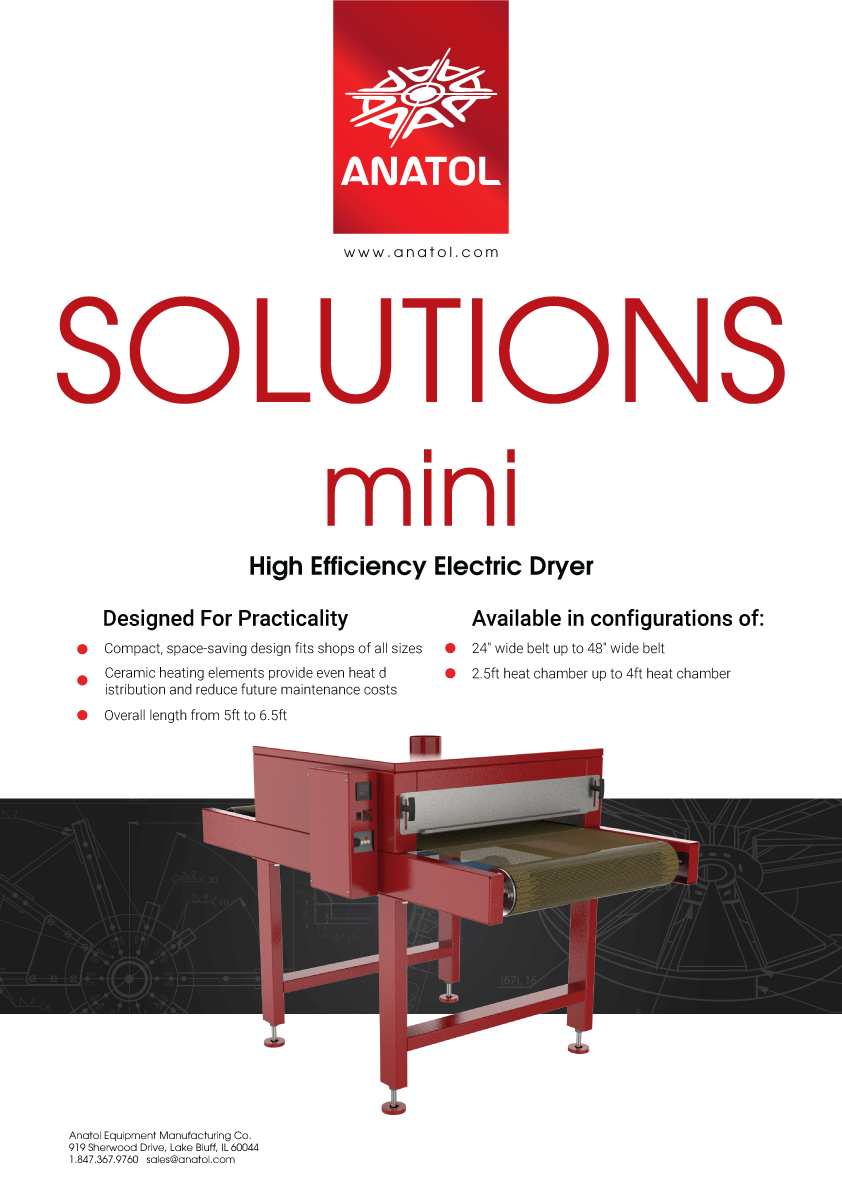

A Powerful, Efficient Curing Solution with a Compact Design
Available in four basic models in configurations of: 24” belt width up to 48″ belt width/2’6″ heat chamber up to 4′ heat chamber.
Description
Just because your shop is tight on space doesn’t mean you should have to sacrifice quality and settle for a conveyor dryer that’s less than industrial-grade. With that in mind, we’ve taken our full-size Solutions electric conveyor dryer and reduced the overall footprint down to 5’ long/3’ wide to create the SOLUTIONS MINI.
The Solutions Mini uses the same ceramic heating elements as our full size Solutions electric conveyor dryers, ensuring uniform heat distribution throughout the chamber for effective curing. High-efficiency thermal insulation keeps the outside of the dryer cool to the touch and keeps heat from migrating out of the chamber. The Solutions Mini includes precise and easy-to-use digital temperature controls as well as adjustable belt speed, to accommodate a wide variety of ink and substrate curing requirements. The belt tracking system ensures the belt is precisely aligned at all times. Models are available with single-phase wiring to accommodate facilities with single-phase electricity.
*Price includes Manufacturer Crate fee
**Price does not include shipping/freight fees. All freight costs will be invoiced separately at carrier rates and are due prior to shipping.

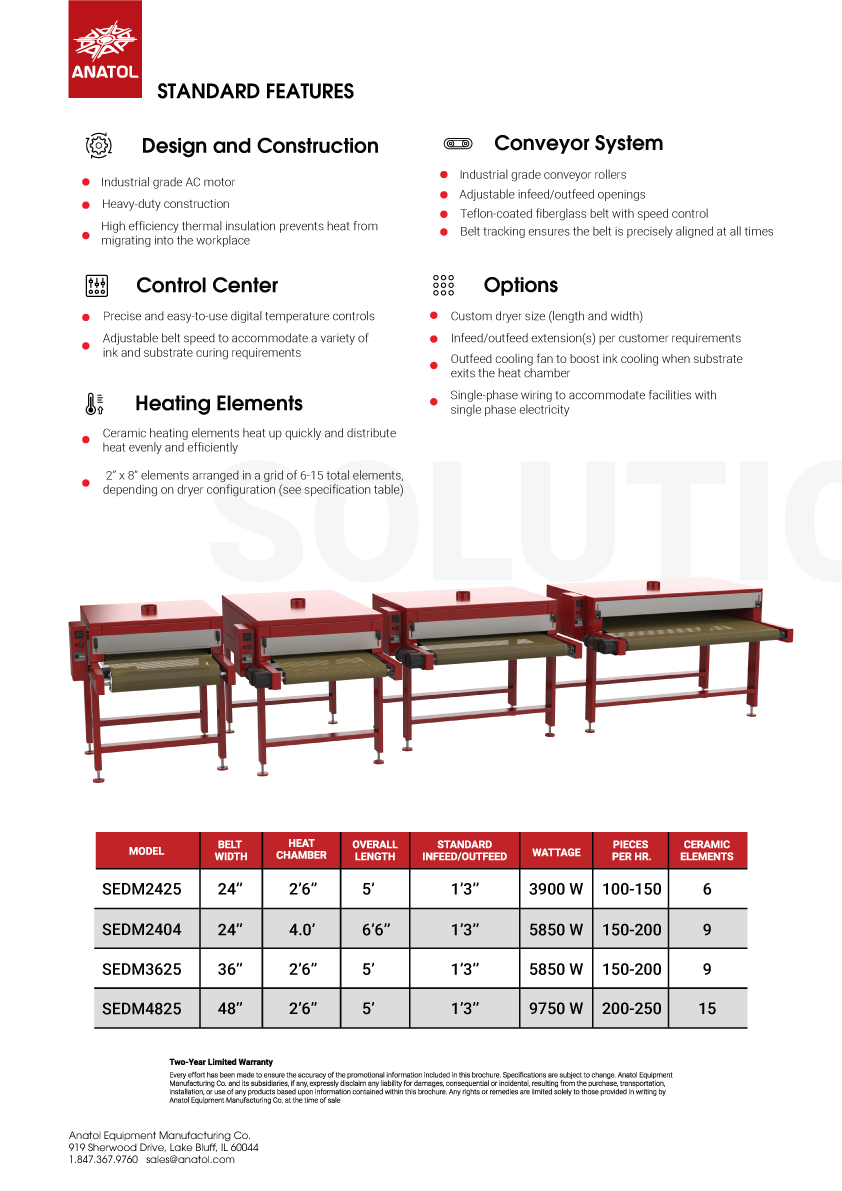

Standard Features
Design and Construction
- Space-saving design starting at a 24” wide belt, 2.5’ long heat chamber and 5’ overall length fits shops of all sizes
- Reliable thermal insulation prevents heat leakage from the dryer chamber to the work environment and boosts efficiency
- Adjustable infeed and outfeed openings to accommodate substrates of different sizes, minimizing heat escape
- Heavy-duty steel construction for ultimate durability
- The ideal conveyor dryer for a startup shop and perfect partner for a manual press or for smaller volume automatic screen printing
Control Center
- Precise and easy to use digital temperature controls
- Adjustable belt speed to accommodate different inks and garments
Heating Elements
- Ceramic heating elements ensure reliable and uniform distribution of heat in the chamber
- 2″ x 8″ elements arranged in a grid of 6-15 total elements, depending on dryer configuration (see Specifications)
Conveyor System
- Industrial-grade conveyor rollers
- Durable Teflon-coated fiberglass belt with speed control
- Belt tracking ensures the belt is precisely aligned at all times and prevents sliding to the right or left
- Reversible belt direction for maximum versatility
Options
- Custom dryer sizes (length/width)
- Infeed/outfeed extension(s) per customer requirements
- Outfeed cooling fan to boost ink cooling when substrate exits the heat chamber

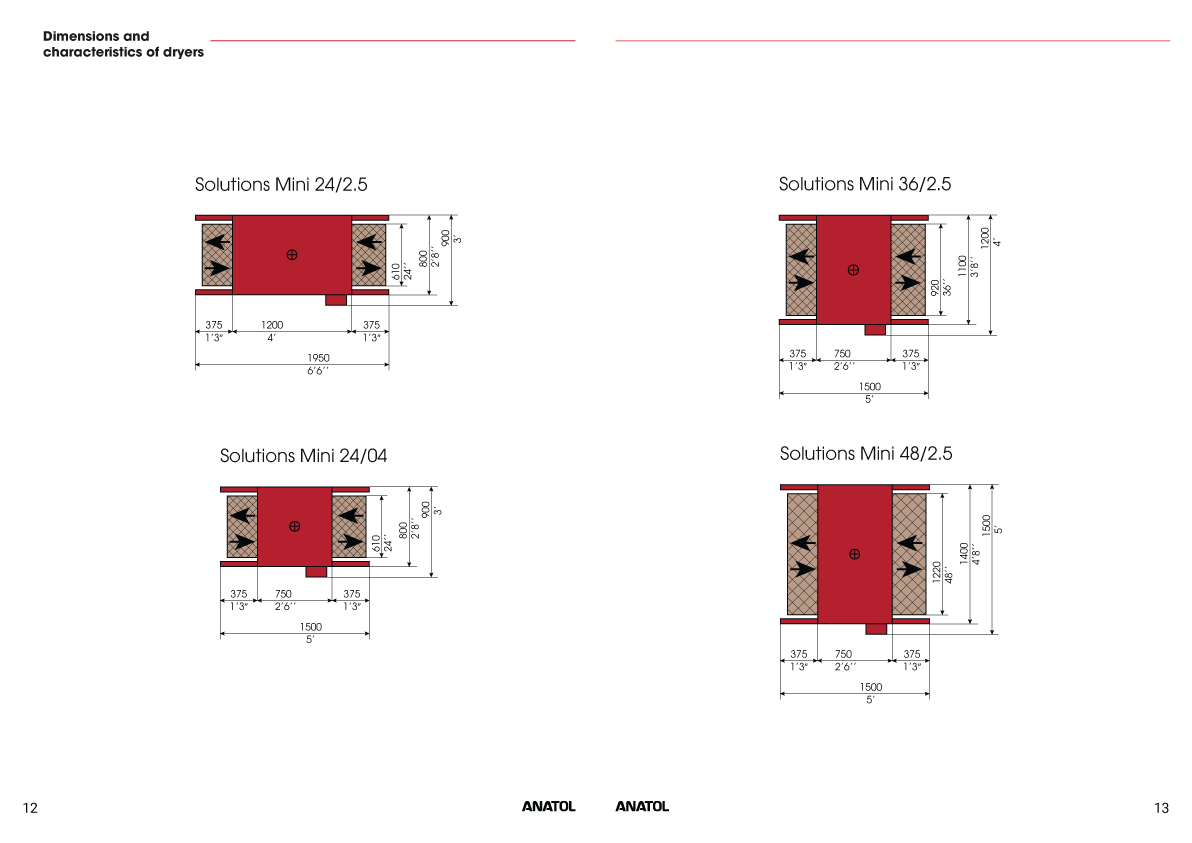

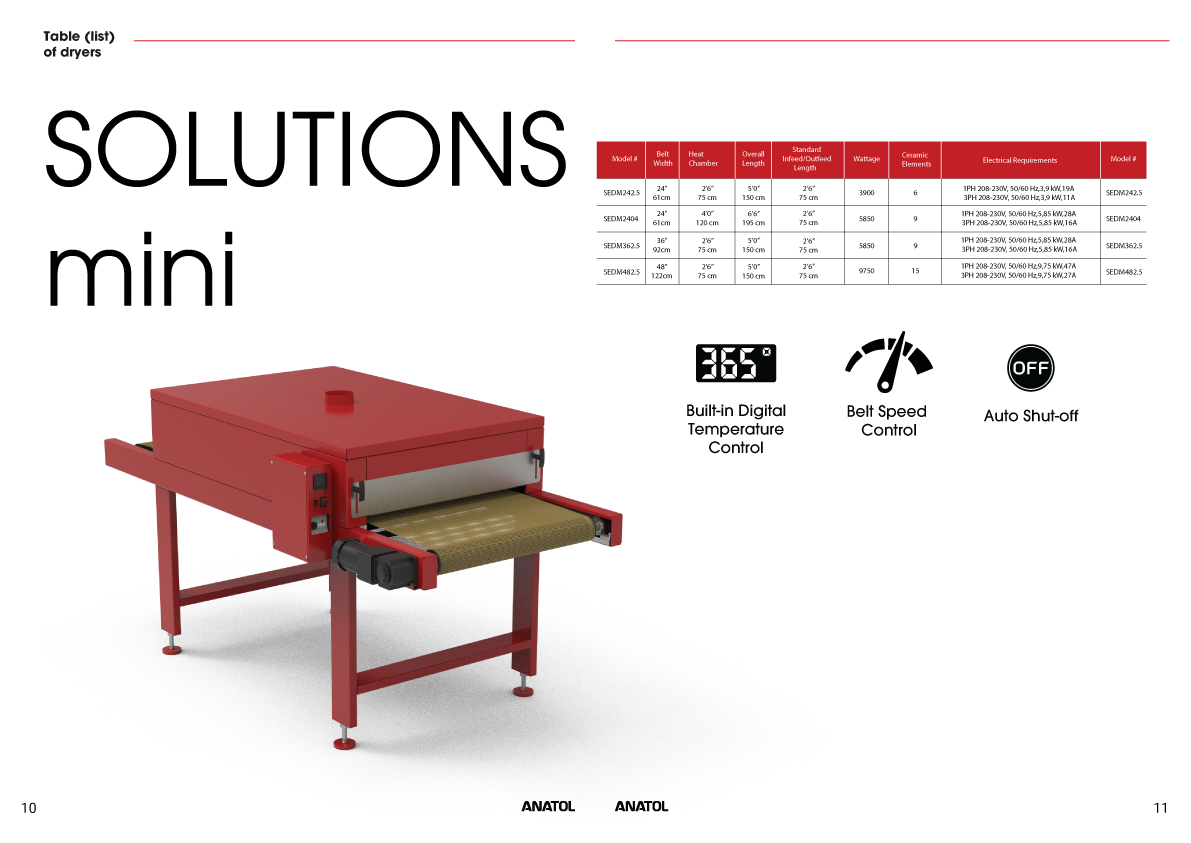

Solutions Mini Specifications
| Model # | Belt Width | Oven Length | Standard Infeed/Outfeed Length | Wattage | Pieces per HR. | Ceramic Elements | Electrical Requirements |
|---|---|---|---|---|---|---|---|
| SEDM-2425 | 24″ 61cm |
2′6″ 76cm |
1’3″/1’3″ 38cm/38cm |
3900 W | 100-150 | 6 | 1 Ph, 208-230 V, 3.9 kW, 19A, 50/60Hz |
| SEDM-2404 | 24″ 61cm |
4′0″ 122cm |
1’3″/1’3″ 38cm/38cm |
5850 W | 150-200 | 9 | 1 Ph, 208-230 V, 5.85 kW, 28A, 50/60Hz
3 Ph, 208-230 V, 5.85 kW, 16A, 50/60Hz |
| SEDM-3625 | 36″ 92cm |
2′6″ 76cm |
1’3″/1’3″ 38cm/38cm |
5850 W | 150-200 | 9 | 1 Ph, 208-230 V, 5.85 kW, 29A, 50/60Hz
3 Ph, 208-230 V, 5.85 kW, 16A, 50/60Hz |
| SEDM-4825 | 48″ 122cm |
2′6″ 76cm |
1’3″/1’3″ 38cm/38cm |
9750 W | 200-250 | 15 | 1 Ph, 208-230 V, 9.75 kW, 47A, 50/60Hz
3 Ph, 208-230 V, 9.75 kW, 27A, 50/60Hz |
-
