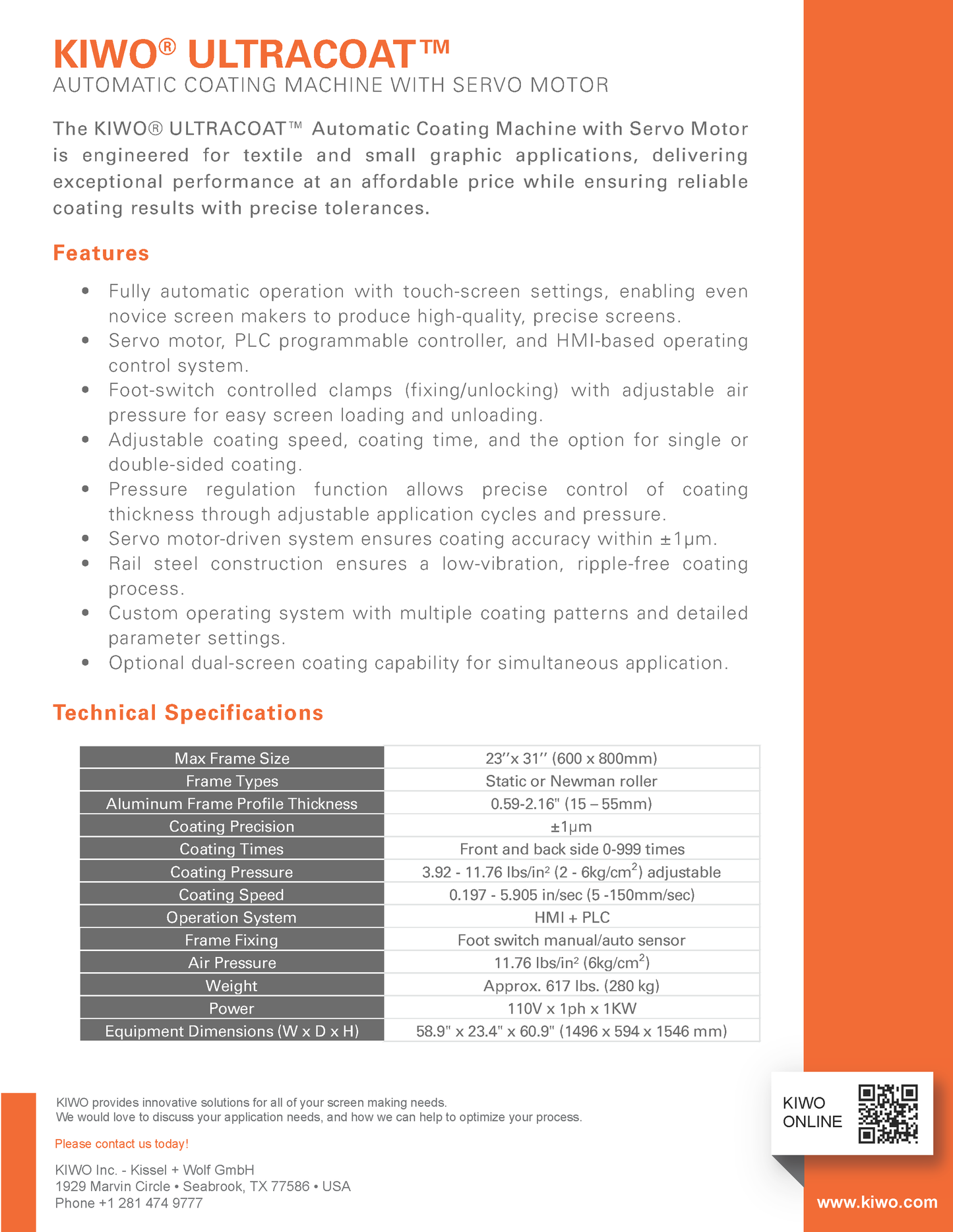

KIWO® ULTRACOAT™ Automatic Coating Machine

The KIWO® ULTRACOAT™ Automatic Coating Machine with Servo Motor
is engineered for textile and small graphic applications, delivering
exceptional performance at an affordable price while ensuring reliable
coating results with precise tolerances.

Features:

• Fully automatic operation with touch-screen settings, enabling even
   novice screen makers to produce high-quality, precise screens.

• Servo motor, PLC programmable controller, and HMI-based operating
   control system.

• Foot-switch controlled clamps (fixing/unlocking) with adjustable air
   pressure for easy screen loading and unloading.

• Adjustable coating speed, coating time, and the option for single or
   double-sided coating.

• Pressure regulation function allows precise control of coating
   thickness through adjustable application cycles and pressure.

• Servo motor-driven system ensures coating accuracy within ±1μm.

• Rail steel construction ensures a low-vibration, ripple-free coating
   process.

• Custom operating system with multiple coating patterns and detailed
   parameter settings.

• Optional dual-screen coating capability for simultaneous application.
